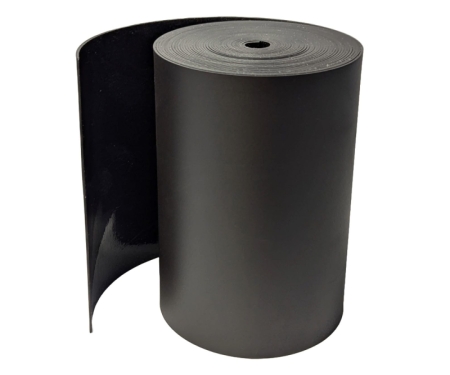

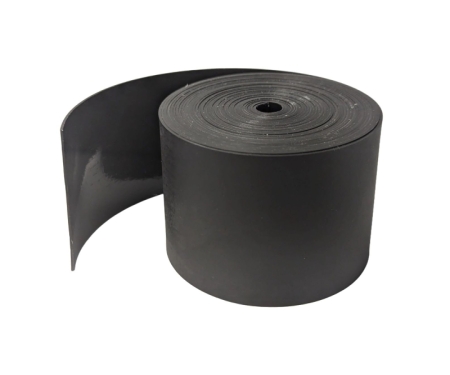

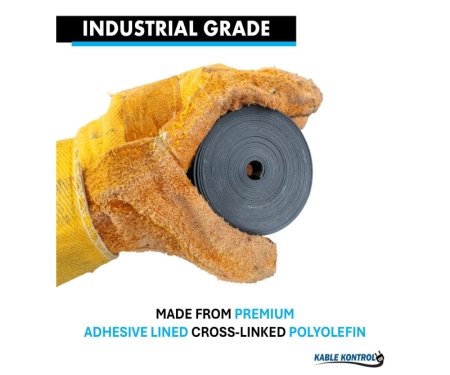

Heat Shrink Adhesive Lined Wrap
1" & 2" Widths - 16.5 Ft Rolls, Black Color

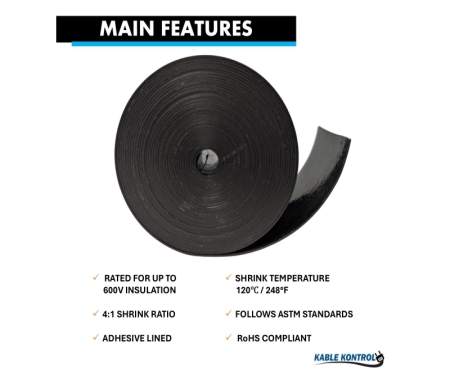

Heat Shrink Adhesive Wrap

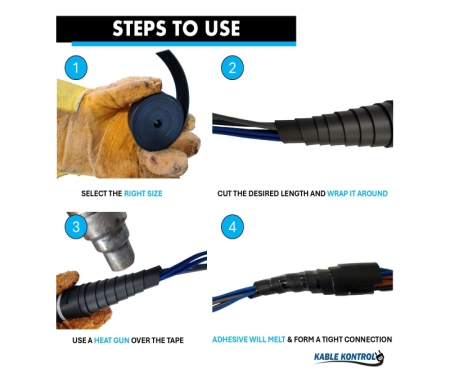

- Easily Repairs Damaged Wires Wthout Disconnecting
- Operating Temperature Range -67°F (-55°C) & +221°F (+105°C)
- Adhesive Lining Protects Against Moisture Penetration
- Capable For Long Term Protection of Wire
- Helps Protect Pipes From Corrosion
- Internal Wall of Hot-Melt Adhesive Which Provides Excellent Bonding - Plastic & Metals.
Product Details

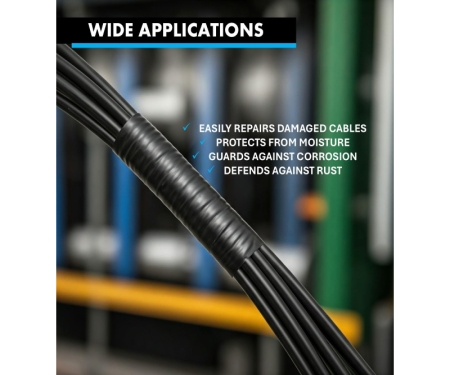

- Repairs damage on landing gear wiring
- Great for damaged Cables and Wires
- Defends against rust on pipes
- Commercial Aerospace
- RoHS compliant
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Physical Properties | ||
| PROPERTY | TEST METHOD | TEST DATA |
| Tensile Strength (MPa) | ASTM D638 | ≥12 |
| Tensile Strength (after Thermal Aging) | ASTM D2671/120°C, 168 hrs | ≥10 |
| Elongation (%) | ASTM D638 | ≥400% |
| Dielectric strength (KV/mm) | IEC 243 | ≥20 |
| Volume resistance (Ω.m) | IEC 250 | ≥1 X 1014 |

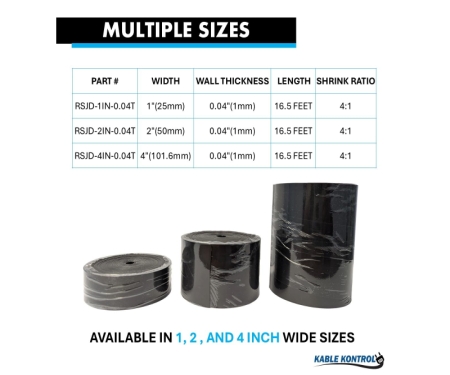

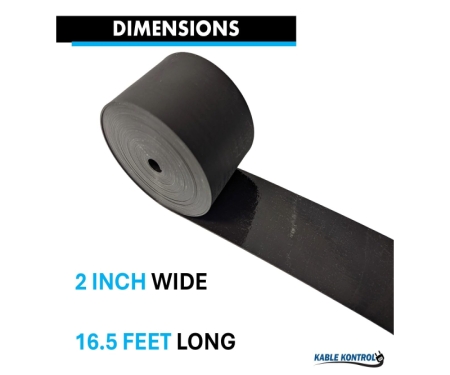

| Dimensions | ||
| SKU | WIDTH | WALL THICKNESS |
| RSJD-1IN-0.04T | 1"(25mm) | 0.04"(1mm) |
| RSJD-2IN-0.04T | 2"(50mm) | 0.04"(1mm) |
