Kable Kontrol® Black Split Wire Loom Tubing

Polyethylene - 1/4" - 3-1/2" Sizes - Sold Per Foot & By Bulk Box

Kable Kontrol® Black Polyethylene Split Wire Loom Features

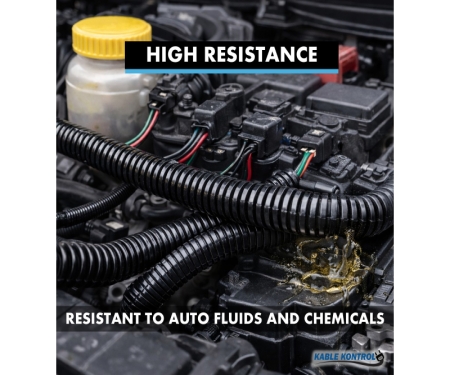

  • Resistant To Auto Fluids & Chemicals
  • Temperature Range -40F To 200F (-40C - 93C)
  • Made of Durable Polyethylene

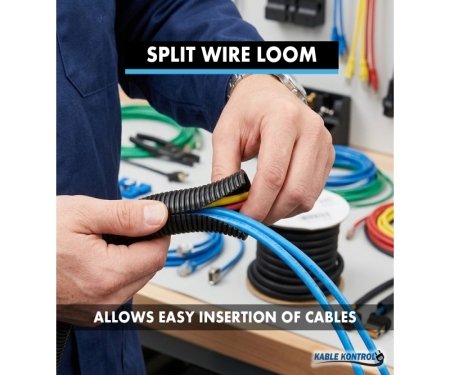

  • Slit Wire Looms Allows For Easy And Quick Installation
  • Made In North America
  • REACH & RoHS COMPLIANT

Kable Kontrol Convoluted Black wire loom tubing is ideal for organizing cables and managing cords into bundles that will help keep your electronic equipment or hose systems in order and prevent equipment failure or fire hazards. Kable Kontrol Black split wire loom tubing is an affordable cable organizer and cable protector that is made of polyethylene convoluted tubing.  Convoluted wire loom is resistant to auto fluids and chemicals and has an operating temperature range of -40℉ to +200℉ (-40℃ to +93℃). Black wire loom is an ideal way to protect your wire, cable, or hose applications.



Click for More Details or Description

Gaylords Ship By LTL Pallet Freight Only

Note: “Per Foot” Quantities Will Be Shipped as Continuous Lengths, Not Individual 1 Foot Pieces.

CUSTOM CUT “PER FOOT” LENGTHS ARE NON-CANCELLABLE NON RE-FUNDABLE

Product Details

another options Colored wire loom comes with split loom which offers easy installation; just open the tubing along the slit and insert the wires. It is also highly flexible, resists gas and chemicals, and secures your wires, cables or even small hoses.

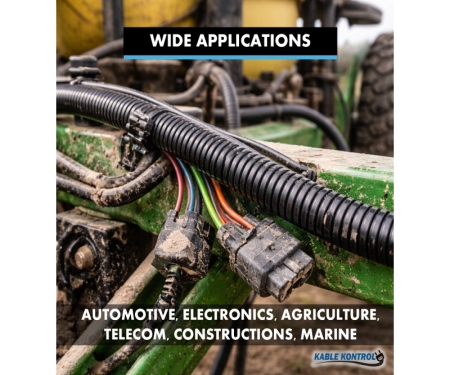

Split black wire loom tubing is suitable for use in many industries, such as automotive, computer/electronics, farm/agricultural, marine, recreation vehicles, telecommunications, construction and specialty markets.

For additional wire loom solutions, please see our Chrome Wire Loom, our Colored Wire Loom, our Nylon Wire Loom, our Flame Retardant Wire Loom, or our Non-Slit Wire Loom. For other wire loom, cable or hose bundling and protection options, please see our Braided Sleeving our Spiral Wrap.



Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal Internal Diameter  Dimension "A" Inside Diameter Dimension "B" Outside Diameter Dimension "C" Wall Thickness
Min Max Min Max
1/4" (6 mm) 0.237” (6.02 mm) 0.266” (6.76 mm) 0.372” (9.45 mm) 0.400” (10.16 mm) 0.005” (0.12 mm)
3/8" (9 mm) 0.341” (8.66 mm) 0.380” (9.65 mm) 0.496” (12.59 mm) 0.526” (13.36 mm) 0.005” (0.12 mm)
1/2" (13 mm) 0.471” (11.97 mm) 0.515” (13.07 mm) 0.645” (16.39 mm) 0.681” (17.31 mm) 0.005” (0.12 mm)
5/8" (16 mm) 0.603” (15.32 mm) 0.639” (16.23 mm) 0.802” (20.36 nmm) 0.837” (21.26 mm) 0.005” (0.12 mm)
3/4” (19 mm) 0.707” (17.96 mm) 0.759” (19.28 mm) 0.950” (24.13 mm) .989” (25.12 mm) 0.005” (0.12 mm)
1" (23 mm) 0.897” (22.78 mm) 0.949” (24.10 mm) 1.077 (27.36 mm) 1.109 (28.17 mm) 0.006” (0.15 mm)
1-1/4" (30 mm) 1.199” (30.45 mm) 1.257” (31.93 mm) 1.446” (36.73 mm) 1.500” (38.10 mm) 0.006” (0.15 mm)
1-1/2" (40 mm) 1.566” (39.78 mm) 1.647” (41.83 mm) 1.867” (47.42 mm) 1.947” (49.45 mm) 0.006” (0.15 mm)
2" (51 mm) 1.969” (50.01 mm) 2.038” (51.77 mm) 2.285” (58.04 mm) 2.388” (60.66 mm) 0.011” (0.028 mm)
2-1/2" (64 mm) 2.447” (62.15 mm) 2.516” (63.9 mm) 2.771” (70.39 mm) 2.874” (73.01 mm) 0.011” (0.028 mm)
3-1/2" (89 mm) 3.481” (88.41 mm) 3.559” (90.41 mm) 3.81” (97 mm) 3.937” (100 mm) 0.011” (0.028 mm)





Performance Enhancers
Flame Retardant No
UV Inhibitor No
Heat Stabilizer No
Performance Characteristics
Flexibility Excellent
Abrasion Resistance Good
Chemical Resistance Good
Recommended Operating Upper Temperature +200°F (93°C)
Recommended Operating Lower Temperature -40°F (-40°C)
Typical Physical Properties Test Method Value Units
Specific Gravity/Density ASTM D792 0.924 -
