ConvoShieldĀ® Chrome Wire Loom

1/4" to 3/4" Dia, Aluminized Ideal For Automotive Applications

0.0 / 5

(0)

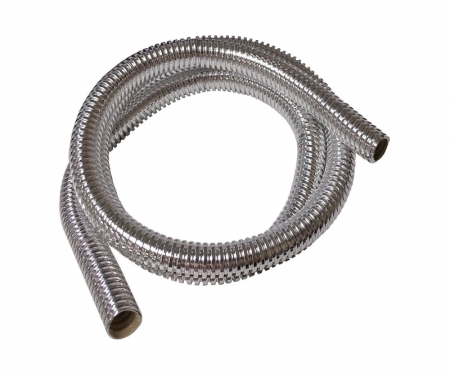

ConvoshieldĀ® Chrome Wire Loom Tubing

  • 39" In Total Length
  • Aluminized Coating Provides Protection Up To 1000°F
  • Provides Thermal Protection
  • Resistant To Automotive Fluids

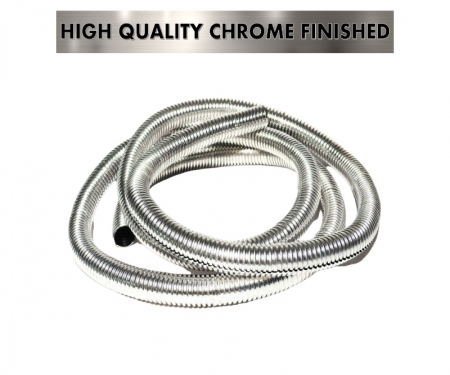

  • Chrome Finish

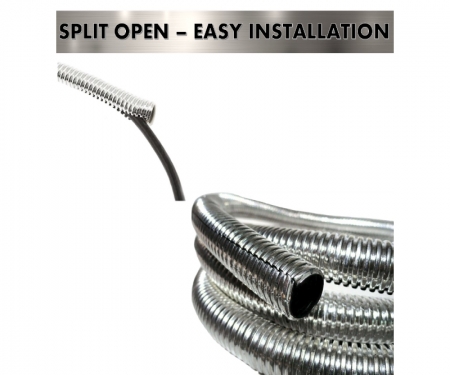

  • Slit Lengthwise For Easy Installation
See More Technical Specifications

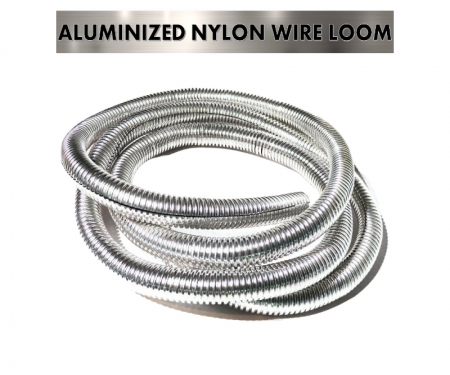

ConvoShield® Aluminized split wire loom was primarily designed to provide thermal protection for components that are highly exposed to heat. This product was tested and approved to provide some degree of static dissipation, RFI shielding and can withstand heated environments up to 1000°F.

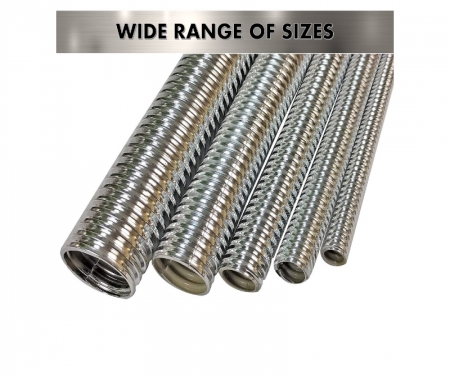

The ConvoShield Aluminized Split Tubing; a cost-effective and practical way of protecting cables and wires from heat and high-temperature environments. One of the most annoying and time-consuming problems that people encounter today are automobile wiring defects and breakdowns. Especially for busy people, car problems are a nightmare because it disrupts all plans and scheduled tasks for the day. Likewise, industries that use machinery or industrial vehicles may encounter the same problems causing delays in manufacturing due to wire and cable breakdowns. This chrome finished ConvoShield is resistant to automotive fluids, classed as insulative against 12-volt battery currents, and very easy to install with its lengthwise slit. This product is being used and has been very popular with car owners, automobile industries, and other manufacturing companies. Available in sizes of 3/8”, 1/2”, 5/8”, and 3/4”, with a standard length of 39”.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

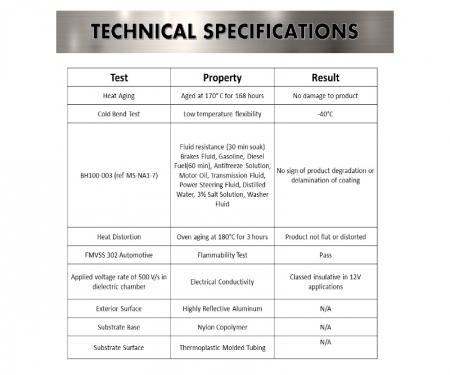

Test Property Result
Heat Aging Aged at 170° C for 168 hours No damage to product
Cold Bend Test Low temperature flexibility -40°C
BH100-003 (ref MS-NA1-7) Fluid resistance (30 min soak)
Brakes Fluid, Gasoline, Diesel Fuel(60 min), Antifreeze Solution, Motor Oil, Transmission Fluid, Power Steering Fluid, Distilled Water, 3% Salt Solution, Washer Fluid
No sign of product degradation or delamination of coating
Heat Distortion Oven aging at 180°C for 3 hours Product not flat or distorted
FMVSS 302 Automotive Flammability Test Pass
Applied voltage rate of 500 V/s in dielectric chamber Electrical Conductivity Classed insulative in 12V applications
Exterior Surface Highly Reflective Aluminum N/A
Substrate Base Nylon Copolymer N/A
Substrate Surface Thermoplastic Molded Tubing

Material: Nylon

Design: Tubular

Max Operating Temperature: +175°C (+347°F)

Min Operating Temperature: -40°C (-40°F)

Heat Protection Type: Radiant

Halogen-free: Yes

Diameters:1/4” to 3/4”

Color: Aluminum

Availability: Cut lengths (39”)

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Q: Are there longer lengths than 39" I can purchase?

A: Unfortunately, due to the manufacturing process these tubings can be no longer than 39" in total length





Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

ConvoShield® Aluminized split wire loom was primarily designed to provide thermal protection for components that are highly exposed to heat. This product was tested and approved to provide some degree of static dissipation, RFI shielding and can withstand heated environments up to 1000°F.

The ConvoShield Aluminized Split Tubing; a cost-effective and practical way of protecting cables and wires from heat and high-temperature environments. One of the most annoying and time-consuming problems that people encounter today are automobile wiring defects and breakdowns. Especially for busy people, car problems are a nightmare because it disrupts all plans and scheduled tasks for the day. Likewise, industries that use machinery or industrial vehicles may encounter the same problems causing delays in manufacturing due to wire and cable breakdowns. This chrome finished ConvoShield is resistant to automotive fluids, classed as insulative against 12-volt battery currents, and very easy to install with its lengthwise slit. This product is being used and has been very popular with car owners, automobile industries, and other manufacturing companies. Available in sizes of 3/8”, 1/2”, 5/8”, and 3/4”, with a standard length of 39”.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Test Property Result
Heat Aging Aged at 170° C for 168 hours No damage to product
Cold Bend Test Low temperature flexibility -40°C
BH100-003 (ref MS-NA1-7) Fluid resistance (30 min soak)
Brakes Fluid, Gasoline, Diesel Fuel(60 min), Antifreeze Solution, Motor Oil, Transmission Fluid, Power Steering Fluid, Distilled Water, 3% Salt Solution, Washer Fluid
No sign of product degradation or delamination of coating
Heat Distortion Oven aging at 180°C for 3 hours Product not flat or distorted
FMVSS 302 Automotive Flammability Test Pass
Applied voltage rate of 500 V/s in dielectric chamber Electrical Conductivity Classed insulative in 12V applications
Exterior Surface Highly Reflective Aluminum N/A
Substrate Base Nylon Copolymer N/A
Substrate Surface Thermoplastic Molded Tubing

Material: Nylon

Design: Tubular

Max Operating Temperature: +175°C (+347°F)

Min Operating Temperature: -40°C (-40°F)

Heat Protection Type: Radiant

Halogen-free: Yes

Diameters:1/4” to 3/4”

Color: Aluminum

Availability: Cut lengths (39”)

Product Manuals

Frequently Asked Questions

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Q: Are there longer lengths than 39" I can purchase?

A: Unfortunately, due to the manufacturing process these tubings can be no longer than 39" in total length
