High Temperature Split Nylon Wire Loom Tubing

Available From 1/4" - 2" Inside Diameter, High Temp & Chem Resistant

Split Nylon Wire Loom Tubing Features

  • Maintains Flexibility
  • Excellent Abrasion Resistance
  • Excellent Resistance To Automotive Fluids & Chemicals
  • Operating Temperature: -40ºF - 300ºF (-40ºC - 149ºC)
  • Material Is 94HB Rated
  • Meets the following Manufacturers Specifications
  • Ford ESB-M4D423-A2, ESF-M4D423-A, ESF-M4D426-A
  • Chrysler MS DB42, CPN 2785
  • GM GMP.PA6.003
  • Delphi Packard M-2170 and M1889
  • REACH & RoHS COMPLIANT
  • Meets the test requirements UL-94 HB @ 1.5 mm (Not UL certified)
  • Gaylord Boxes Ship By LTL Pallet Freight Only

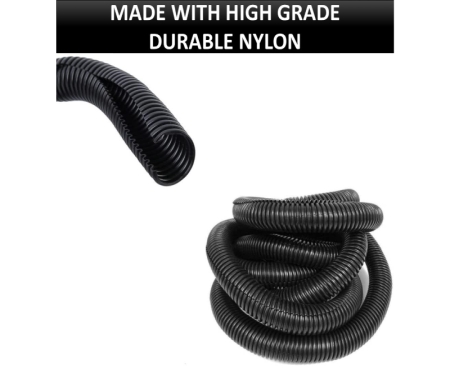

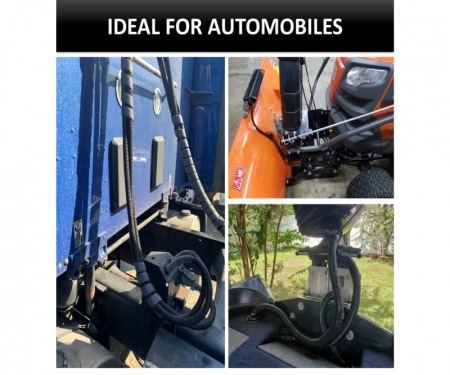

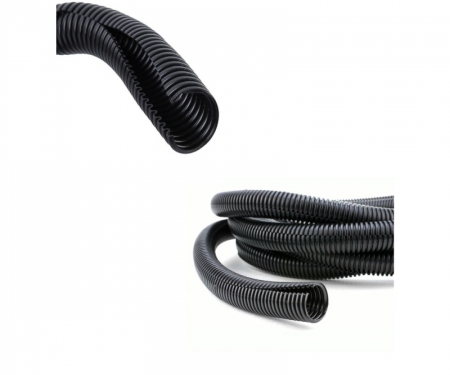

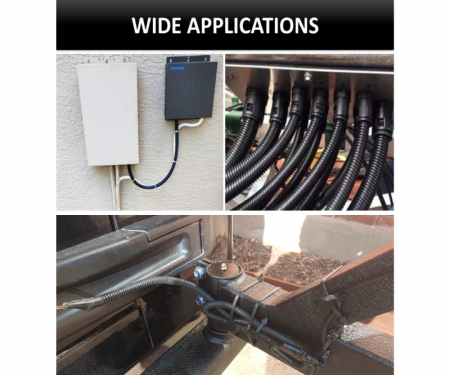

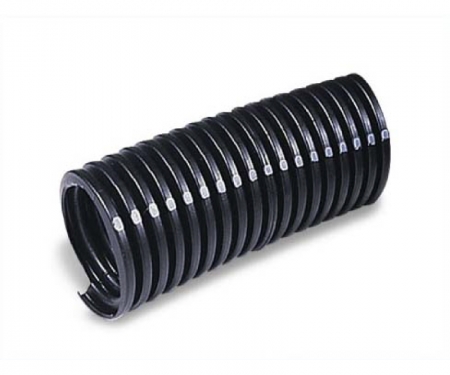

Nylon split wire loom is an automotive grade convoluted tubing that is lightweight, flexible, easy to use, and provides excellent protection for cables, tubing, hoses, and wire harnesses. Its flexible nature allows it to be installed around tight curves without the slit opening up. Nylon split wire loom is manufactured from impact modified, heat stabilized Nylon 6 that provides excellent resistance to high temperatures, making it suitable for automobile engines. The material is 94HB Rated. Operating temperature: -40°F to 300°F (-40°C to 149°C). If split nylon wire loom is not what you are looking for we have additional wire loom solutions. Please see our Chrome Wire Loom, our Color wire Loom, our Black Wire Loom, our Non-Slit Wire Loom, or our Flame Retardant Wire Loom. For other wire, cable or hose bundling and protection options, please see our Braided Sleeving or our Spiral Wrap.

Return Policy – ( WIRE LOOM TUBING)

30-DAY RETURN POLICY

  • You may return your purchase within 30 days after delivery for a full refund less shipping charges.

  • Items must be in their original condition, not visibly used damaged, or cut.

  • 10 foot Cut length wire loom orders are NON-CANCELLABLE & NON-RETURNABLE

  • GAYLORD bulk box returns are subject to an 25 percent re-stocking fee.

RETURN INSTRUCTIONS

Please Fill out our Linked RMA FORM to obtain a Return Authorization (RMA#) & Shipping instructions.

Let us know your Order ID, Name & which items you want to return.

Once we get your request we'll email you a Return Authorization and Shipping Instructions.

After we receive the return, it takes 3-5 business days for us to verify the items & process a refund. We'll refund back to your method of payment.

RETURN SHIPPING

  • Shipping charges are not refundable & customer is responsible for cost of return shipping.

  • We recommend you return via UPS, FedEx, or insured US Mail with a tracking number. Items not received by us will not receive a credit.

  • Shipping charges will apply on any exchanges.

SHORTAGE OR INCORRECT ORDERS

All claims for shortage or incorrect orders must be reported to us by phone or email within 5 business days from receipt of the order. Please mention your Purchase Order ID, Items, and your name.

DEFECTIVE PRODUCTS

Defective products must be reported to us within 30 days of delivery via phone or email.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal Internal Diameter  Dimension "A" Inside Diameter Dimension "B" Outside Diameter Dimension "C" Wall Thickness
Min Max Min Max
1/4" (6 mm) 0.237” (6.02 mm) 0.266” (6.76 mm) 0.372” (9.45 mm) 0.400” (10.16 mm) 0.005” (0.12 mm)
3/8" (9 mm) 0.341” (8.66 mm) 0.380” (9.65 mm) 0.496” (12.59 mm) 0.526” (13.36 mm) 0.005” (0.12 mm)
7/16" (10 mm) 0.399” (10.13 mm) 0.437” (11.10 mm) 0.569” (14.46 mm) 0.597” (15.16 mm) 0.005” (0.12 mm)
1/2" (13 mm) 0.471” (11.97 mm) 0.515” (13.07 mm) 0.645” (16.39 mm) 0.681” (17.31 mm) 0.005” (0.12 mm)
5/8" (16 mm) 0.603” (15.32 mm) 0.639” (16.23 mm) 0.802” (20.36 nmm) 0.837” (21.26 mm) 0.005” (0.12 mm)
3/4” (19 mm) 0.707” (17.96 mm) 0.759” (19.28 mm) 0.950” (24.13 mm) .989” (25.12 mm) 0.005” (0.12 mm)
7/8" (22 mm) 0.848” (21.54 mm) 0.898” (22.81 mm) 1.107 (28.12 mm) 1.151 (29.24 mm) 0.005” (0.13 mm)
1" (23 mm) 0.897” (22.78 mm) 0.949” (24.10 mm) 1.077 (27.36 mm) 1.109 (28.17 mm) 0.006” (0.15 mm)
1-1/4" (30 mm) 1.199” (30.45 mm) 1.257” (31.93 mm) 1.446” (36.73 mm) 1.500” (38.10 mm) 0.006” (0.15 mm)
1-1/2" (40 mm) 1.566” (39.78 mm) 1.647” (41.83 mm) 1.867” (47.42 mm) 1.947” (49.45 mm) 0.006” (0.15 mm)
2" (51 mm) 1.969” (50.01 mm) 2.038” (51.77 mm) 2.285” (58.04 mm) 2.388” (60.66 mm) 0.011” (0.028 mm)





Performance Enhancers
Flame Retardant Yes
UV Inhibitor No
Heat Stabilizer No
Performance Characteristics
Flexibility Good
Abrasion Resistance Excellent
Chemical Resistance Good
Recommended Operating Upper Temperature +300°F (149°C)
Recommended Operating Lower Temperature -40°F (-40°C)
Typical Physical Properties Test Method Value Units
Specific Gravity/Density ISO 1183-A 1.06 -
Elongation @ Break - - -
Elongation @ Yield - - -
Tensile Strength @ 25C ASTM D638 35.2 MPa
2% Secant Modulus - - -
Flexural Modulus ASTM D790 1.9 GPa
Melting Point ISO 3146-C 424 (218) °F (°C)
Notched Izod Impact Test ASTM D256 67.4 KJ/m2
Heat Deflection Temperature @66psi - - -
Heat Deflection Temperature @264psi - - -
Material Certifications
Delphi / Packard
Ford WSS-M4D933-A1
General Motors
Chrysler
ASTM D4066 PA283
Underwriters Laboratory
FMVSS 302 Burn rate of max. 101.2mm / min. (1.0 mm thick) Self-extinguishing



Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

Nylon split wire loom is an automotive grade convoluted tubing that is lightweight, flexible, easy to use, and provides excellent protection for cables, tubing, hoses, and wire harnesses. Its flexible nature allows it to be installed around tight curves without the slit opening up. Nylon split wire loom is manufactured from impact modified, heat stabilized Nylon 6 that provides excellent resistance to high temperatures, making it suitable for automobile engines. The material is 94HB Rated. Operating temperature: -40°F to 300°F (-40°C to 149°C). If split nylon wire loom is not what you are looking for we have additional wire loom solutions. Please see our Chrome Wire Loom, our Color wire Loom, our Black Wire Loom, our Non-Slit Wire Loom, or our Flame Retardant Wire Loom. For other wire, cable or hose bundling and protection options, please see our Braided Sleeving or our Spiral Wrap.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal Internal Diameter  Dimension "A" Inside Diameter Dimension "B" Outside Diameter Dimension "C" Wall Thickness
Min Max Min Max
1/4" (6 mm) 0.237” (6.02 mm) 0.266” (6.76 mm) 0.372” (9.45 mm) 0.400” (10.16 mm) 0.005” (0.12 mm)
3/8" (9 mm) 0.341” (8.66 mm) 0.380” (9.65 mm) 0.496” (12.59 mm) 0.526” (13.36 mm) 0.005” (0.12 mm)
7/16" (10 mm) 0.399” (10.13 mm) 0.437” (11.10 mm) 0.569” (14.46 mm) 0.597” (15.16 mm) 0.005” (0.12 mm)
1/2" (13 mm) 0.471” (11.97 mm) 0.515” (13.07 mm) 0.645” (16.39 mm) 0.681” (17.31 mm) 0.005” (0.12 mm)
5/8" (16 mm) 0.603” (15.32 mm) 0.639” (16.23 mm) 0.802” (20.36 nmm) 0.837” (21.26 mm) 0.005” (0.12 mm)
3/4” (19 mm) 0.707” (17.96 mm) 0.759” (19.28 mm) 0.950” (24.13 mm) .989” (25.12 mm) 0.005” (0.12 mm)
7/8" (22 mm) 0.848” (21.54 mm) 0.898” (22.81 mm) 1.107 (28.12 mm) 1.151 (29.24 mm) 0.005” (0.13 mm)
1" (23 mm) 0.897” (22.78 mm) 0.949” (24.10 mm) 1.077 (27.36 mm) 1.109 (28.17 mm) 0.006” (0.15 mm)
1-1/4" (30 mm) 1.199” (30.45 mm) 1.257” (31.93 mm) 1.446” (36.73 mm) 1.500” (38.10 mm) 0.006” (0.15 mm)
1-1/2" (40 mm) 1.566” (39.78 mm) 1.647” (41.83 mm) 1.867” (47.42 mm) 1.947” (49.45 mm) 0.006” (0.15 mm)
2" (51 mm) 1.969” (50.01 mm) 2.038” (51.77 mm) 2.285” (58.04 mm) 2.388” (60.66 mm) 0.011” (0.028 mm)





Performance Enhancers
Flame Retardant Yes
UV Inhibitor No
Heat Stabilizer No
Performance Characteristics
Flexibility Good
Abrasion Resistance Excellent
Chemical Resistance Good
Recommended Operating Upper Temperature +300°F (149°C)
Recommended Operating Lower Temperature -40°F (-40°C)
Typical Physical Properties Test Method Value Units
Specific Gravity/Density ISO 1183-A 1.06 -
Elongation @ Break - - -
Elongation @ Yield - - -
Tensile Strength @ 25C ASTM D638 35.2 MPa
2% Secant Modulus - - -
Flexural Modulus ASTM D790 1.9 GPa
Melting Point ISO 3146-C 424 (218) °F (°C)
Notched Izod Impact Test ASTM D256 67.4 KJ/m2
Heat Deflection Temperature @66psi - - -
Heat Deflection Temperature @264psi - - -
Material Certifications
Delphi / Packard
Ford WSS-M4D933-A1
General Motors
Chrysler
ASTM D4066 PA283
Underwriters Laboratory
FMVSS 302 Burn rate of max. 101.2mm / min. (1.0 mm thick) Self-extinguishing
