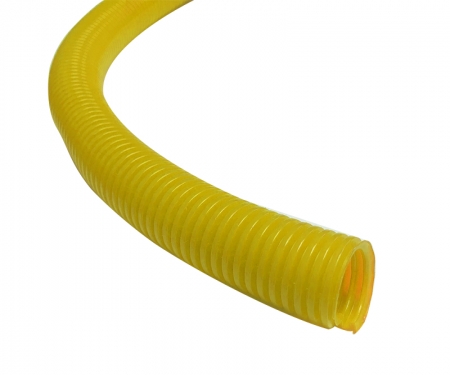

Kable Kontrol® Colored Split Wire Loom Tubing

1/4" to 2" ID | Polyethylene | 9 Colors | Small Footage & Bulk Boxes

Kable Kontrol® Colored Split Wire Loom Tubing Features

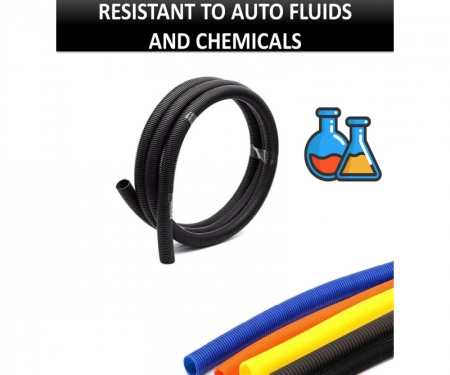

  • Resistant To Auto Fluids & Chemicals
  • Temperature Range -40ºF to 200F (-40ºC - 93ºC)

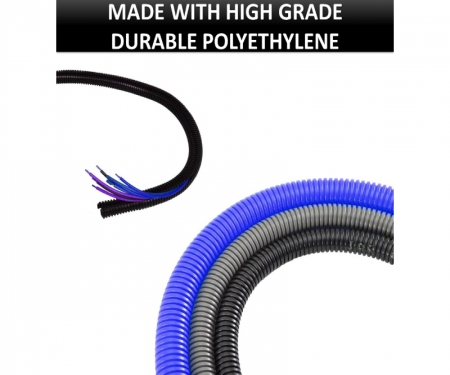

  • Made of Durable Polyethylene
  • Slit Wire Looms Allows For Easy And Quick Installation
  • Made In North America

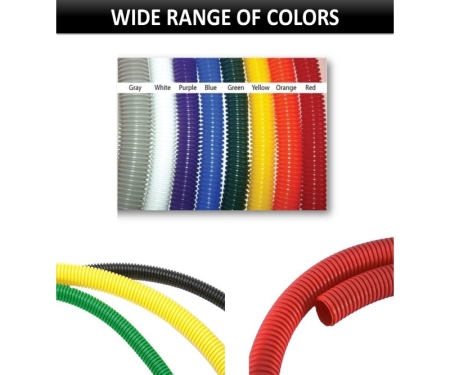

  • Available In Many Colors And Sizes

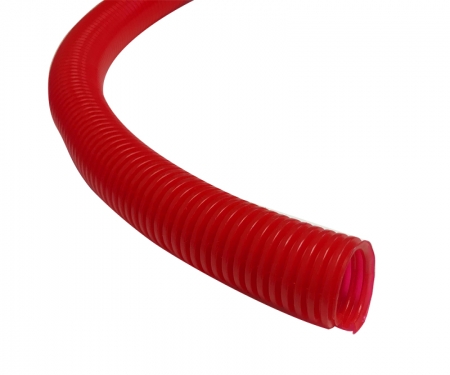

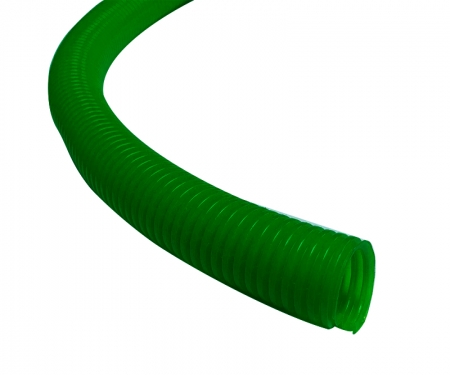

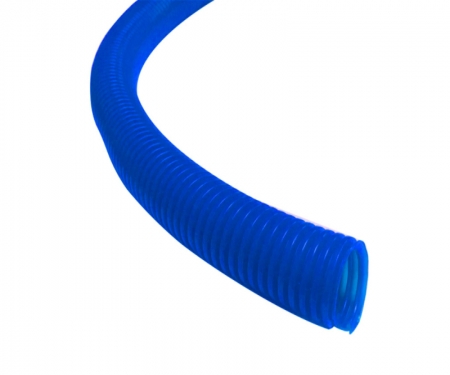

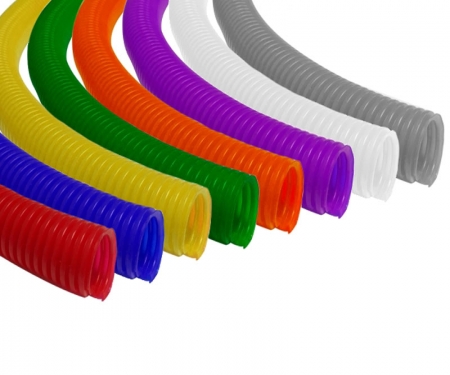

Kable Kontrol® Split Colored wire loom tubing is an affordable cable organizer and cable protector that is made of durable polyethylene convoluted material. Colored Wire loom is perfect for organizing cables and hoses by identifying specific runs into color-coded bundles that will help keep your electronic equipment in order and will prevent equipment failure or fire hazards. Colored wire loom comes slit down the middle which offers easy installation; just open the tubing along the slit and insert the wires. It is also highly flexible, resistant to gas and chemicals, and secures your wires, cables or even small hoses.

Click for More Details or Description

Gaylords Ship By Pallet LTL Freight Only


Product Details

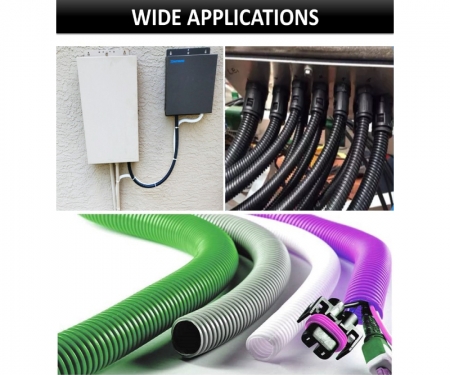

Split wire loom tubing is resistant to auto fluids and chemicals and has an operating temperature range of -40℉ to +200℉ (-40℃ to +93℃). Color wire loom is suitable for use in many industries, such as automotive, computer/electronics, farm/agricultural, marine, recreation vehicles, telecommunications, construction, and specialty markets.

For additional wire loom solutions, please see our Chrome Wire Loom, our Black Wire Loom, our Nylon Wire Loom, our Flame Retardant Wire Loom, or our Non-Slit Wire Loom. For other wire loom, cable or hose bundling and protection options, please see our Braided Sleeving our Spiral Wrap.


Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal Internal Diameter  Dimension "A" Inside Diameter Dimension "B" Outside Diameter Dimension "C" Wall Thickness
Min Max Min Max
1/4" (6 mm) 0.237” (6.02 mm) 0.266” (6.76 mm) 0.372” (9.45 mm) 0.400” (10.16 mm) 0.005” (0.12 mm)
3/8" (9 mm) 0.341” (8.66 mm) 0.380” (9.65 mm) 0.496” (12.59 mm) 0.526” (13.36 mm) 0.005” (0.12 mm)
1/2" (13 mm) 0.471” (11.97 mm) 0.515” (13.07 mm) 0.645” (16.39 mm) 0.681” (17.31 mm) 0.005” (0.12 mm)
5/8" (16 mm) 0.603” (15.32 mm) 0.639” (16.23 mm) 0.802” (20.36 nmm) 0.837” (21.26 mm) 0.005” (0.12 mm)
3/4” (19 mm) 0.707” (17.96 mm) 0.759” (19.28 mm) 0.950” (24.13 mm) .989” (25.12 mm) 0.005” (0.12 mm)
1" (23 mm) 0.897” (22.78 mm) 0.949” (24.10 mm) 1.077 (27.36 mm) 1.109 (28.17 mm) 0.006” (0.15 mm)
1-1/4" (30 mm) 1.199” (30.45 mm) 1.257” (31.93 mm) 1.446” (36.73 mm) 1.500” (38.10 mm) 0.006” (0.15 mm)
1-1/2" (40 mm) 1.566” (39.78 mm) 1.647” (41.83 mm) 1.867” (47.42 mm) 1.947” (49.45 mm) 0.006” (0.15 mm)
2" (51 mm) 1.969” (50.01 mm) 2.038” (51.77 mm) 2.285” (58.04 mm) 2.388” (60.66 mm) 0.011” (0.028 mm)
2-1/2" (64 mm) 2.447” (62.15 mm) 2.516” (63.9 mm) 2.771” (70.39 mm) 2.874” (73.01 mm) 0.011” (0.028 mm)
3-1/2" (89 mm) 3.481” (88.41 mm) 3.559” (90.41 mm) 3.81” (97 mm) 3.937” (100 mm) 0.011” (0.028 mm)



Performance Enhancers
Flame Retardant No
UV Inhibitor No
Heat Stabilizer No
Performance Characteristics
Flexibility Excellent
Abrasion Resistance Good
Chemical Resistance Good
Recommended Operating Upper Temperature +200°F (93°C)
Recommended Operating Lower Temperature -40°F (-40°C)
Typical Physical Properties Test Method Value Units
Specific Gravity/Density ASTM D792 0.924 -
