Techflex® Flexo® Chrome Xtra Coverage Braided Cable Sleeving

Gold & Silver - Full Coverage Metallic Expandable Sleeving

0.0 / 5

(0)

Chrome XC Sleeving Features

  • Operating Temperature Range: -103° to 257 °F (-75° to 125°C.)

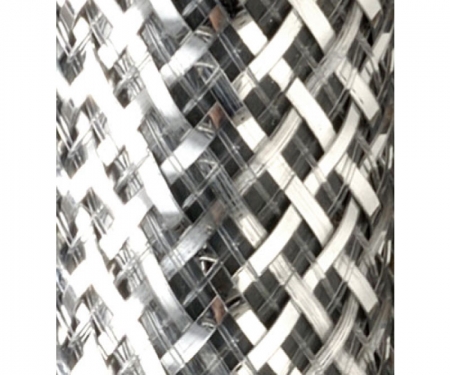

  • Tight Braid For Full Metallic Coverage
  • Conductive Mylar for Shielding Applications
  • Cuts Easily with Hot Knife
  • Halogen Free - RoHS Compliant
  • Resists Common Chemicals & Solvents
  • Expands Up To 150%
  • 446°F / 230°C. Melt Temp.
See More Technical Specifications

Require Splice Free? Please Call 1-877-284-7760

Inside Diameters Are Measured as Round Not Flat

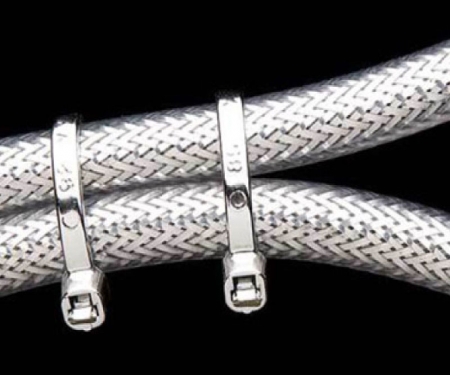

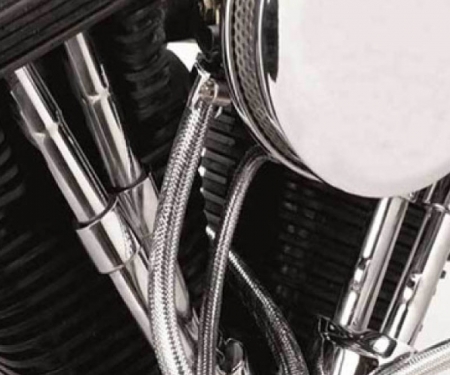

Flexo Chrome X-tra coverage heavy duty expandable metallized mylar sleeve is ideal for dressing up any application with the look of braided stainless steel. The X-tra coverage product, Chrome XC, provides fuller coverage with no transparent elements in the braided construction and results in a smooth, continuous metallic shine on any application. Made with full slit heavy duty Mylar, Chrome XC will provide years of attractive hose or wire covering.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Expansion Range Standard Spool Put-Ups Colors Lbs/
100'
Min. Max. Bulk Spool Shop Spool
1/4"
5/16"
1/2"
3/4"
1 1/4"
1 1/2"
CXN0.25
CXN0.31
CXN0.50
CXN0.75
CXN1.25
CXN1.50
1/4"
5/16"
1/2"
3/4"
1 1/4"
1 1/2"
5/16"
1/2"
3/4"
1 3/8"
2"
3"
500'
250'
250'
200'
100'
100'
125'
100'
80'
40'
30'
25'
3
3
3
3
3
3
0.25
0.36
0.52
0.83
1.25
1.50



Physical Properties
Monofilament Thickness (ASTM D-204) .005
Flammability Rating N/A
Recommended Cutting Hot Knife
Colors 3
Wall Thickness .025
Tensile Strength - Yarn (ASTM D-2265) lbs. N/A
Abrasion Resistance Medium
Specific Gravity 1.3



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 1
Chlorinated Solvents 3
Weak Bases 1
Strong Bases 3
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 3
Strong Oxidants 2
Esters/Ketones 1
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .00
WVR .16
Smoke D-Max (ASTM E-662) N/A
Outgassing Medium
Oxygen Index (ASTM D-2863) 21



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA No
SVHC None













Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
