Techflex® Aramid Armor® Braided Cable Sleeving
Highly Resistant to Abrasion, Cuts, Acids, Solvents, Bases & Fuels
0.0 / 5
Aramid Armor Braided Sleeving Features
- Will Not Melt, Burn or Support Combustion
- Stays Soft & Pliable
- Resists Acids, Bases, Solvents, & Fuels
- High Tensile Strength
- Cuts With Kevlar Shears
- Extra Heavy Duty
- High Cut Resistance
- Operating Temperature: -274°F to 320°F (-170°C to 160°C)
- *Aramid Armor is Degraded by Ultraviolet Light.*
- Inside Diameters Are Measured as Round Not Flat

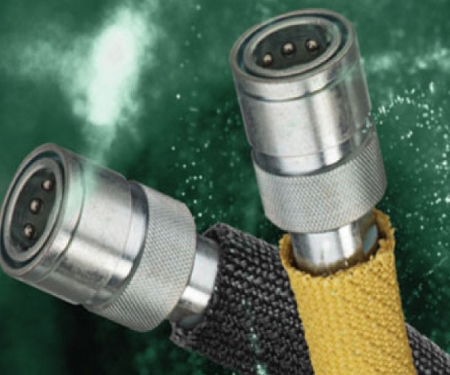

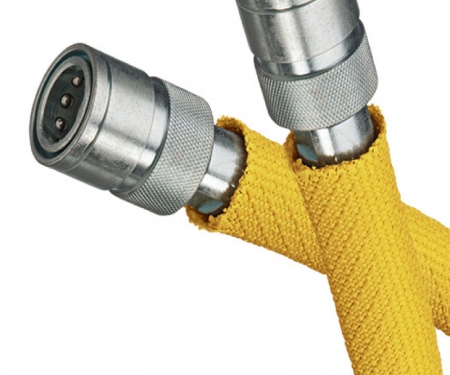

Extra heavy duty, tightly woven Aramid Armor sleeving is braided from aramid fibers, soft and pliable but with 5 times strength of steel on equal-weight basis. Aramid Armor braided sleeving is perfect for bundling and protecting vulnerable components from the most extreme environmental conditions. The aramid fibers provide durability, pliability and extraordinary tensile strength. It will not melt, burn or support combustion. The inherent strength and heat resistance of Aramid Armor sleeving provides performance that can not be worn or aged away. Typical uses include aerospace, marine, and automotive industry applications. Aramid Armor sleeving is available in Yellow.
Please note that Aramid Armor is degraded by ultraviolet light. Do not store in direct sunlight. Fluoescent lighting will cause discoloration, but will not affect fiber mechanical properties.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/4" 1/2" 1" 1 1/4" | KVX0.25YL KVX0.50YL KVX1.00YL KVX1.25YL | 1/4" 1/2" 1" 1 1/4" | 3/8" 1" 1 3/4" 2" | 500' 250' 200' 125' | 50' 50' 25' 25' | YL YL YL YL | 1.69 3.22 4.76 5.88 |
| Physical Properties | |
| Recommended Cutting | Kevlar Shears |
| Colors | 1 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 39 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.44 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 3.13 |
| CVCM | .19 |
| WVR | 1.76 |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 29 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 2 |
| Chlorinated Solvents | 2 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 2 |
| UV Light | 4 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -274°F/-170°C |
| Maximum Continuous (MIL-I-23053) | 320°F/160°C |
| Melt (ASTM D-2117) | It Will Not Melt |
| Other Information | |
| Halogen Free | Yes |
| UL/CSA | Yes |
| ROHS | Yes |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Extra heavy duty, tightly woven Aramid Armor sleeving is braided from aramid fibers, soft and pliable but with 5 times strength of steel on equal-weight basis. Aramid Armor braided sleeving is perfect for bundling and protecting vulnerable components from the most extreme environmental conditions. The aramid fibers provide durability, pliability and extraordinary tensile strength. It will not melt, burn or support combustion. The inherent strength and heat resistance of Aramid Armor sleeving provides performance that can not be worn or aged away. Typical uses include aerospace, marine, and automotive industry applications. Aramid Armor sleeving is available in Yellow.
Please note that Aramid Armor is degraded by ultraviolet light. Do not store in direct sunlight. Fluoescent lighting will cause discoloration, but will not affect fiber mechanical properties.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/4" 1/2" 1" 1 1/4" | KVX0.25YL KVX0.50YL KVX1.00YL KVX1.25YL | 1/4" 1/2" 1" 1 1/4" | 3/8" 1" 1 3/4" 2" | 500' 250' 200' 125' | 50' 50' 25' 25' | YL YL YL YL | 1.69 3.22 4.76 5.88 |
| Physical Properties | |
| Recommended Cutting | Kevlar Shears |
| Colors | 1 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 39 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.44 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | 3.13 |
| CVCM | .19 |
| WVR | 1.76 |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 29 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 2 |
| Chlorinated Solvents | 2 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 2 |
| UV Light | 4 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -274°F/-170°C |
| Maximum Continuous (MIL-I-23053) | 320°F/160°C |
| Melt (ASTM D-2117) | It Will Not Melt |
| Other Information | |
| Halogen Free | Yes |
| UL/CSA | Yes |
| ROHS | Yes |
