Techflex® Flexo® PPS Expandable Braided Cable Sleeving
Lightweight - High Temp Tolerant & Impervious to Chemical Degradation
0.0 / 5
PPS Braided Sleeving Features
- Virtually Impervious to Chemical Damage
- Expands Up to 150%
- FAR 25 Approved
- Operating Temperature Range: -94° to 392°F (-70° to 200°C.)
- Melt Temp 545°F / 285°C.
- Cuts Easily With Hot Knife
- RoHS Compliant
- Ultra Light Weight
Inside Diameters Are Measured as Round Not Flat

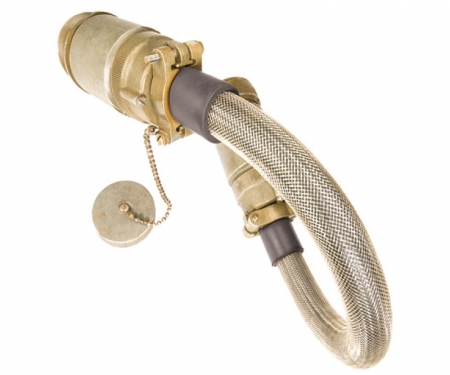

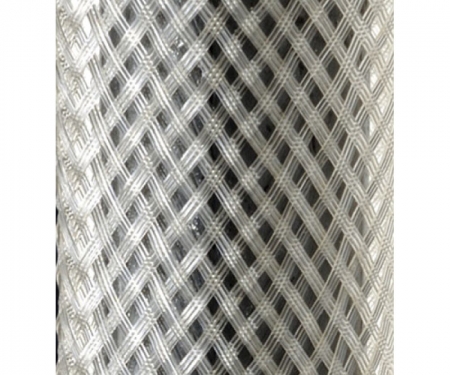

FLEXO PPS expandable sleeving is used in high temperature, flame resistant wire harnesses and cable assemblies. Flexo PPS braided sleeving is an extremely lightweight expandable sleeving, resistant to high temperatures and virtually impervious to solvents. Flexo PPS expandable sleeving is ideal for aerospace, telecom and military applications and meets many engineering goals including; chemical resistance, high temperature stability, low moisture absorption, excellent dimensional stability and ultra-low wear. Flexo PPS expandable sleeving is braided from 8 mil flame resistant PolyPhenylene Sulfide (PPS) monofilament fibers.
PPS expandable sleeving offers the broadest resistance to chemicals of any advanced engineering plastic. The material resists all known solvents below 392°F and is inert to steam, strong bases, fuels and acids.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 1/2" 3/4" 1 1/4" 1 3/4" 2" | RYN0.13 RYN0.25 RYN0.50 RYN0.75 RYN1.25 RYN1.75 RYN2.00 | 3/32" 1/8" 1/4" 1/2" 3/4" 1 1/4" 1 5/16" | 1/4" 3/8" 3/4" 1 1/4" 1 3/4" 2 1/2" 2 3/8" | 1,000' 1,000' 500' 250' 250' 200' 200' | 225' 200' 100' 75' 50' 50' 25' | 2 2 2 2 2 2 2 | 0.21 0.36 0.59 0.75 1.30 1.60 2.00 |
| 10 Mil Construct | |||||||
| 1/8" | RZH0.13NT | 1/8" | 9/32" | 1,000' | 225' | NT | 0.26 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .008 |
| Flammability Rating | UL-94, FAR 25, V-O |
| Recommended Cutting | Hot Knife |
| Colors | 2 |
| Wall Thickness | .024 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 6.1 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.37 |
| Moisture Absorption % (ASTM D-570) | .02 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .08 |
| CVCM | .00 |
| WVR | .04 |
| Smoke D-Max (ASTM E-662) | |
| Outgassing | Low |
| Oxygen Index (ASTM D-2863) | 40 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 1 |
| Strong Oxidants | 1 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 392°F/200°C |
| Melt (ASTM D-2117) | 545°F/285°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
FLEXO PPS expandable sleeving is used in high temperature, flame resistant wire harnesses and cable assemblies. Flexo PPS braided sleeving is an extremely lightweight expandable sleeving, resistant to high temperatures and virtually impervious to solvents. Flexo PPS expandable sleeving is ideal for aerospace, telecom and military applications and meets many engineering goals including; chemical resistance, high temperature stability, low moisture absorption, excellent dimensional stability and ultra-low wear. Flexo PPS expandable sleeving is braided from 8 mil flame resistant PolyPhenylene Sulfide (PPS) monofilament fibers.
PPS expandable sleeving offers the broadest resistance to chemicals of any advanced engineering plastic. The material resists all known solvents below 392°F and is inert to steam, strong bases, fuels and acids.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 1/2" 3/4" 1 1/4" 1 3/4" 2" | RYN0.13 RYN0.25 RYN0.50 RYN0.75 RYN1.25 RYN1.75 RYN2.00 | 3/32" 1/8" 1/4" 1/2" 3/4" 1 1/4" 1 5/16" | 1/4" 3/8" 3/4" 1 1/4" 1 3/4" 2 1/2" 2 3/8" | 1,000' 1,000' 500' 250' 250' 200' 200' | 225' 200' 100' 75' 50' 50' 25' | 2 2 2 2 2 2 2 | 0.21 0.36 0.59 0.75 1.30 1.60 2.00 |
| 10 Mil Construct | |||||||
| 1/8" | RZH0.13NT | 1/8" | 9/32" | 1,000' | 225' | NT | 0.26 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .008 |
| Flammability Rating | UL-94, FAR 25, V-O |
| Recommended Cutting | Hot Knife |
| Colors | 2 |
| Wall Thickness | .024 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 6.1 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.37 |
| Moisture Absorption % (ASTM D-570) | .02 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .08 |
| CVCM | .00 |
| WVR | .04 |
| Smoke D-Max (ASTM E-662) | |
| Outgassing | Low |
| Oxygen Index (ASTM D-2863) | 40 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 1 |
| Strong Oxidants | 1 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 392°F/200°C |
| Melt (ASTM D-2117) | 545°F/285°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
