PEEK Braided Sleeving
High Temperature & Chemical Resistance - V-0 Flammability Rating.
PEEK Braided Sleeving Features
- Operating Temperature: -94°F to 500°F (-70°C to 260°C)
- Resists Most Chemicals, Acids, Salt & Oil
- V-0 Certified - RoHS Compliant
- Resists Superheated Water & Steam
- Braided From 10 mil Unfilled PEEK Filaments
- Melt Temp: 633°F/334°C
- Cuts Easily With Hot Knife
- Very Light Weight
Inside Diameters Are Measured as Round Not Flat
PEEK braided sleeving, Similar to PPS, but with a substantially expanded operating temperature range, PEEK (PolyEtherEther-Ketone) is a high performance advanced polymer with outstanding physical properties. PEEK braided sleeving is inherently flame retardant, with a V-0 flammability rating, will withstand continuous use in superheated water or steam up to 500°F, and resists most acids, solvents and bases.
PEEK braided sleeving is FDA approved as a food contact product, resists damage from radiation and will continue to perform in UHV (Ultra High Vacuum) environments. PEEK braided sleeving is extensively used in the aerospace, automotive, teletronic and chemical process industries, and is considered an advanced biomaterial used in medical implants and other biomedical applications. PEEK braided sleeving will withstand thousands of sterilization cycles without damage or degradation.

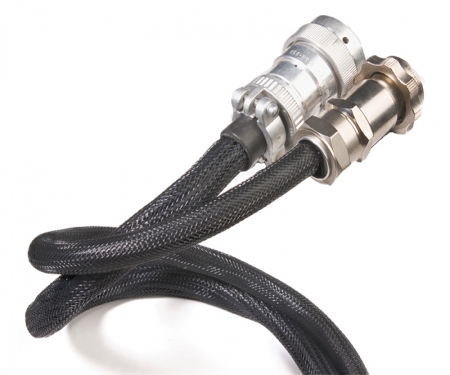

Flexo PEEK expandable sleeving is tightly braided from 10 mil filaments of pure, unfilled PEEK polymer. The sleeving expands to fit over connectors and splices, and provides a full coverage over wires hoses and cable bundles in advanced engineering applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
|Monofilament Thickness (ASTM D-204)||.010|
|Recommended Cutting||Hot Knife|
|Tensile Strength - Yarn (ASTM D-2265) lbs.||13,300|
|Moisture Absorption % (ASTM D-570)||<.05|
|Hard Vacuum Data (ASTM E-595 at 10-5 torr)|
|Dielectric Strength (ASTM D-149; V/Mil)||>500|
|Volume Resistivity (ASTM D-257; ohm-cm)||4.9x10 16|
|Chemical Resistance |
1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected
|Salt Water (O-S-1926)||1|
|Hydraulic Fluid (MIL-H-5606)||1|
|Lubricating Oil (MIL-L-7808)||1|
|De-Icing Fluid (MIL-A-8243)||1|
|Fungus (ASTM G-21)||1|
|Maximum Continuous (MIL-I-23053)||500°F/260°C|
|Melt (ASTM D-2117)||633°F/334°C|
