Techflex® Flexo® Super Duty Braided Cable Sleeving
Braided With 20-mil Thick Nylon 6-6 Filaments - Extreme Durablity
0.0 / 5
Flexo® Super Duty Braided Sleeving Features
- Highly Abrasion & UV Resistant
- Heavy Duty Construction
- Operating Temp Range: -49°F to 302°F (-45°C to 150°C)
- Resists Common Chemicals & Solvents
- Will Not Retain Moisture
- Cuts Easily With Hot Knife
- RoHS Compliant
- Melt Temp: 493°F/256°C
- Inside Diameters Are Measured as Round Not Flat

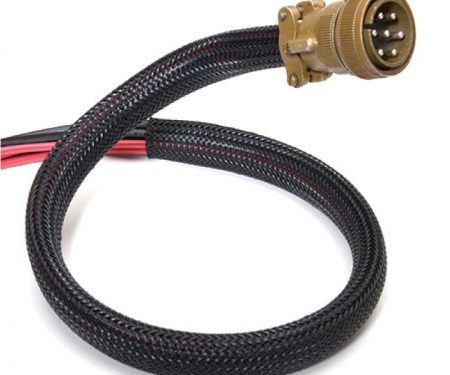

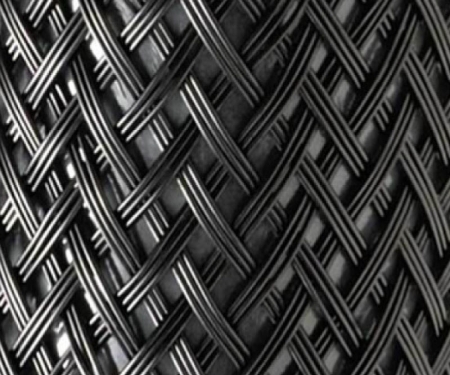

Flexo® Super Duty (SD) is braided from 20 mil Nylon® 6-6 Polyamide monofilament. Heavy duty and flexible, this sleeving is extremely versatile. Excellent durability makes flexo Super Duty braided sleeving ideal for a wide range of industrial applications and other jobs where high abrasion protection is needed. Super Duty braided sleeving outperforms all competitive round filament sleeving. flexo Super Duty is also more economical and easy to use, cutting cleanly with a hot knife leaving a neat, sealed end.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/4" 1/2" 3/4" 1" 1 1/4" 1 3/4" 2 1/4" | SDN0.25BK SDN0.50BK SDN0.75BK SDN1.00BK SDN1.25BK SDN1.75BK SDN2.25BK | 1/4" 1/2" 3/4" 1" 1 1/4" 1 3/4" 2 1/4" | 1/2" 1" 1 1/4" 1 1/2" 2" 2 3/4" 3" | 500' 250' 250' 250' 250' 100' 100' | 100' 100' 50' 50' 50' 25' 25' | BK BK BK BK BK BK BK | 1.05 1.85 2.30 2.75 3.00 4.00 5.30 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .020 |
| Flammability Rating | |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | ..05 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 19 |

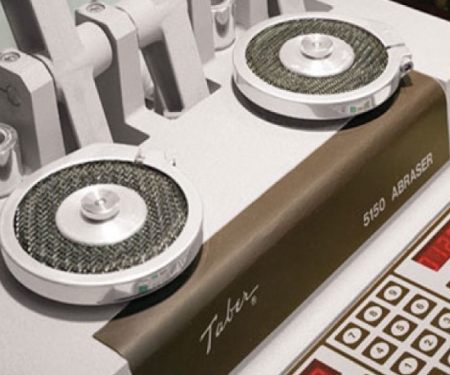

| Abrasion Resistance | High |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .1.10 |
| CVCM | ..01 |
| WVR | ..69 |
| Smoke D-Max (ASTM E-662) | |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 3 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 302°F/150°C |
| Melt (ASTM D-2117) | 493°F/256°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Flexo® Super Duty (SD) is braided from 20 mil Nylon® 6-6 Polyamide monofilament. Heavy duty and flexible, this sleeving is extremely versatile. Excellent durability makes flexo Super Duty braided sleeving ideal for a wide range of industrial applications and other jobs where high abrasion protection is needed. Super Duty braided sleeving outperforms all competitive round filament sleeving. flexo Super Duty is also more economical and easy to use, cutting cleanly with a hot knife leaving a neat, sealed end.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/4" 1/2" 3/4" 1" 1 1/4" 1 3/4" 2 1/4" | SDN0.25BK SDN0.50BK SDN0.75BK SDN1.00BK SDN1.25BK SDN1.75BK SDN2.25BK | 1/4" 1/2" 3/4" 1" 1 1/4" 1 3/4" 2 1/4" | 1/2" 1" 1 1/4" 1 1/2" 2" 2 3/4" 3" | 500' 250' 250' 250' 250' 100' 100' | 100' 100' 50' 50' 50' 25' 25' | BK BK BK BK BK BK BK | 1.05 1.85 2.30 2.75 3.00 4.00 5.30 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .020 |
| Flammability Rating | |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | ..05 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 19 |
| Abrasion Resistance | High |
| Specific Gravity | 1.14 |
| Moisture Absorption % (ASTM D-570) | 2.5 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .1.10 |
| CVCM | ..01 |
| WVR | ..69 |
| Smoke D-Max (ASTM E-662) | |
| Outgassing | High |
| Oxygen Index (ASTM D-2863) | 22 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 3 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -49°F/-45°C |
| Maximum Continuous (MIL-I-23053) | 302°F/150°C |
| Melt (ASTM D-2117) | 493°F/256°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
