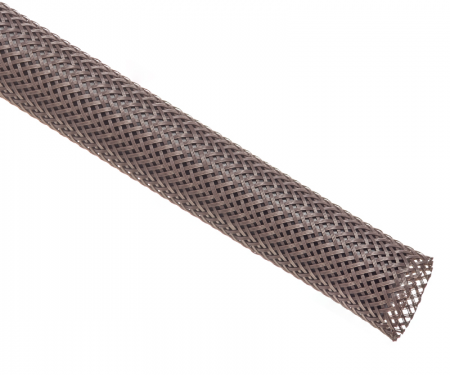

Techflex® Rodent Resistant Braided Cable Sleeving
Repels Rodents From Chewing On Valuable Hoses & Cables
0.0 / 5
Rodent Resistant Braided Sleeving Features
- Resists Rodents
- Cuts Easily With Hot Knife
- Highly Abrasion & UV Resistant
- Expands Up to 150%
- Operating Temps: -94°F to 257°F (-70°C to 125°C)
- Halogen Free - RoHS Compliant
- Melt Temp: 482°F / 250°C
- Inside Diameters Are Measured as Round Not Flat
Require Splice Free? Please Call 1-877-284-7760
*Please Use Caution while handling Flexo Rodent Resistant. May cause skin and/or eye irritation.
Flexo Rodent Resistant braided sleeving is the latest solution for fighting the harmful effects of unprotected wires which are exposed to rodents. Muskrats, Mice, Rats, and other rodents have never ending time to find and destroy wiring and hose systems. The knowledge of technical filaments and braided protection sleeves were combined to create an amazing rodent resistant sleeving. The new rodent resistant braided sleeving or wire and hose braided conduit makes a very repulsive meal for any critter. In our own in-house testing, rodents completely avoided our new Flexo Rodent Resistant sleeving even when stuffed with food. Make your wires and hoses an unappealing midnight snack with new Flexo Rodent Resistant sleeving.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expans. Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" 2" 2 1/2" | RR30.25DB RRN0.38DB RRN0.50DB RRN0.63DB RRN0.75DB RRN1.00DB RRN1.25DB RRN1.50DB RRN1.75DB RRN2.00DB RRN2.50DB | 1/8" 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" | 3/8" 1/2" 3/4" 1" 1 1/4" 1 5/8" 1 3/4" 2 1/8" 2 3/4" 3 1/2" 3 5/8" | 1000' 500' 500' 500' 250' 250' 250' 200' 200' 200' 200' | 200' 125' 100' 100' 75' 65' 50' 40' 30' 50' 50' | 1 1 1 1 1 1 1 1 1 1 1 | 0.39 0.57 0.77 0.95 1.20 1.34 1.60 1.96 2.45 2.60 3.80 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1-.2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | ||||
| Aromatic Solvents | 2 | |||
| Alipahtic Solvents | 1 | |||
| Chlorinated Solvents | 3 | |||
| Weak Bases | 1 | |||
| Strong Bases | 2 | |||
| Salt Water (O-S-1926) | 1 | |||
| Hydraulic Fluid (MIL-H-5606) | 1 | |||
| Lubricating Oil (MIL-L-7808) | 1 | |||
| De-Icing Fluid (MIL-A-8243) | 1 | |||
| Strong Acids | 3 | |||
| Strong Oxidants | 2 | |||
| Esters/Ketones | 1 | |||
| UV Light | 1 | |||
| Petroleum | 1 | |||
| Fungus (ASTM G-21) | 1 | |||
| Salts | 1 | |||
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | ||||
| Halogen Free | Yes | |||
| RoHS | Yes | |||
| SVHC | None | |||
| UL/CSA | No | |||
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
