Kable Kontrol™ Nylon Braided Cable Sleeving

High Abrasion & Chemical Resistance - by Kable Kontrol

0.0 / 5

(0)

Kable Kontrol™ Nylon Expandable Sleeving Features

  • Material: Nylon 6-6 Monofilament

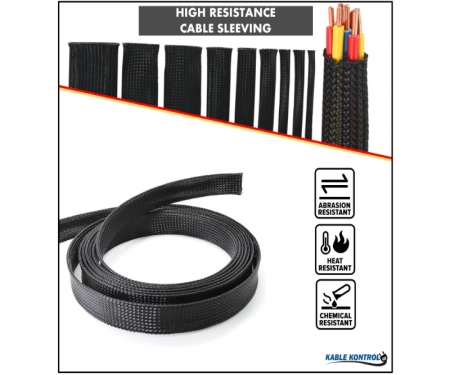

  • Highly Abrasion Resistant

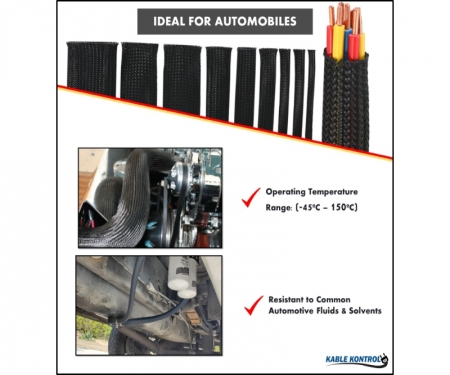

  • Resistant to Common Automotive Fluids & Solvents

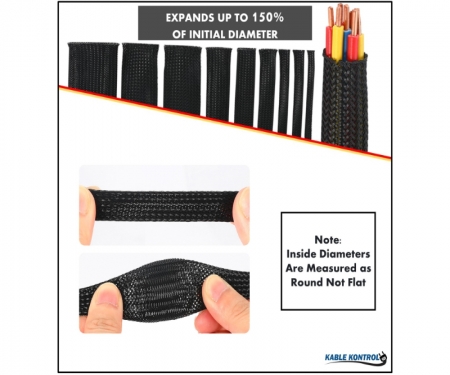

  • Expands up to 150% of Initial Diameter
  • Operating Temperature Range: (-60ºC – 160ºC)
See More Technical Specifications

Inside Diameters Are Measured as Round Not Flat

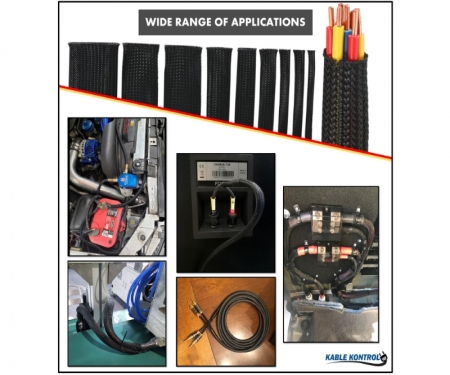

Expandable monofilament Nylon braided sleeving is an economical yet durable solution to protect hoses and wires. Nylon braided sleeving is constructed from nylon 6-6 Polyamide filaments which have excellent abrasion resistance, heat resistance, chemical resistance and therefore will last longer than most other general-purpose sleeving. Due to nylon sleeving’s high temperature and chemical fluid resistance it has become a popular choice for the automotive industry.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal Size SKU Expansion Range Colors Lbs/100'
Min Max
1/8" BSLNY0125* 3/32" 1/4" Black 0.22
1/4" BSLNY025* 1/8" 3/8" Black 0.31
1/2" BSLNY050* 3/8" 3/4" Black 1.03
3/4" BSLNY075* 1/2" 1 1/4" Black 1.47
1" BSLNY100* 5/8" 1 3/8" Black 1.60
1 1/4" BSLNY125* 3/4" 1 1/2" Black 1.78
1 1/2" BSLNY150* 1" 2" Black 2.55
2" BSLNY200* 1 1/2" 3" Black 2.26



Testing Data

Property Test Result/Value
MONOFILAMENT DIAMETER ASTM D-204 0.010"
TENSILE STRENGTH ASTM D-2256 4.5 LBS.
SPECIFIC GRAVITY ASTM D-792 1.14
MOISTURE ABSORPTION ASTM D-570 2.50%
LIMITING OXYGEN INDEX ASTM D-2863 22
TML ASTM E-595 AT 10-5 TORR 1.10%
CVCM ASTM E-595 AT 10-5 TORR 0.01%
WVR ASTM E-595 AT 10-5 TORR 0.690%





Temperature Scale

Description Temperature
MELT POINT 493°F (256°C)
MAXIMUM CONTINUOUS 320°F (160°C)
MINIMUM CONTINUOUS -76°F (-60°C)
