Insultherm Tru-Fit Sleeving

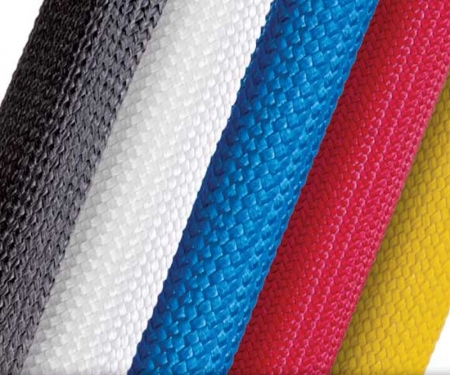

7 Colors - Fray Resistant Fiberglass Sleeving - Max Temp: 1,200°F
Insultherm Tru-Fit Sleeving Features
- Operating Temps: -94°F to 1,202ºF (-70°C to 650°C)
- For High Temp - Low Voltage Applications
- Extremely Abrasion & Cut Resistant
- Will Not Burn or Support Combustion
- RoHS Compliant & Halogen Free
- Resists Common Chemicals & Solvents
- UL Recognized: VW-1
- Excellent Low Temp Flexibility
- Cuts Easily With Scissors
- Melt Temp: 2,048°F / 1,120°C
Inside Diameters Are Measured as Round Not Flat
Insultherm Tru-Fit is a braided fiberglass sleeving which has been heat treated and impregnated with an acrylic binder to reduce fraying and dusting, and improve usability and performance. Insultherm Tru-Fit sleeving is engineered for applications where temperatures as high as 1,200°F may be encountered.

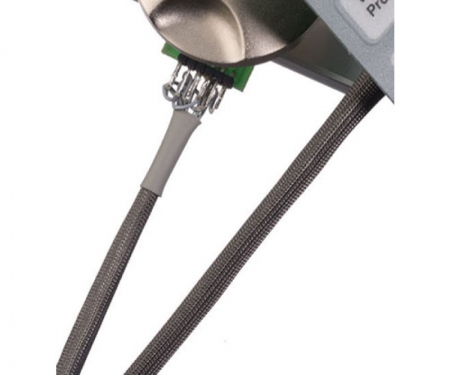

Tru-Fit is used as primary insulation on low voltage applications such as leads in toasters, coffee makers, ranges and other appliances. Insultherm Tru-Fit sleeving may also be used as insulation and protection for small heaters and resistors that operate at high temperatures, and to insulate over soldered connections when exposure to solder melt temperatures is possible.
Insultherm Tru-Fit provides a sturdy, long lasting and inexpensive insulation solution. It is flexible and expandable, and can easily be installed over applications with irregular shapes and tight turns.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

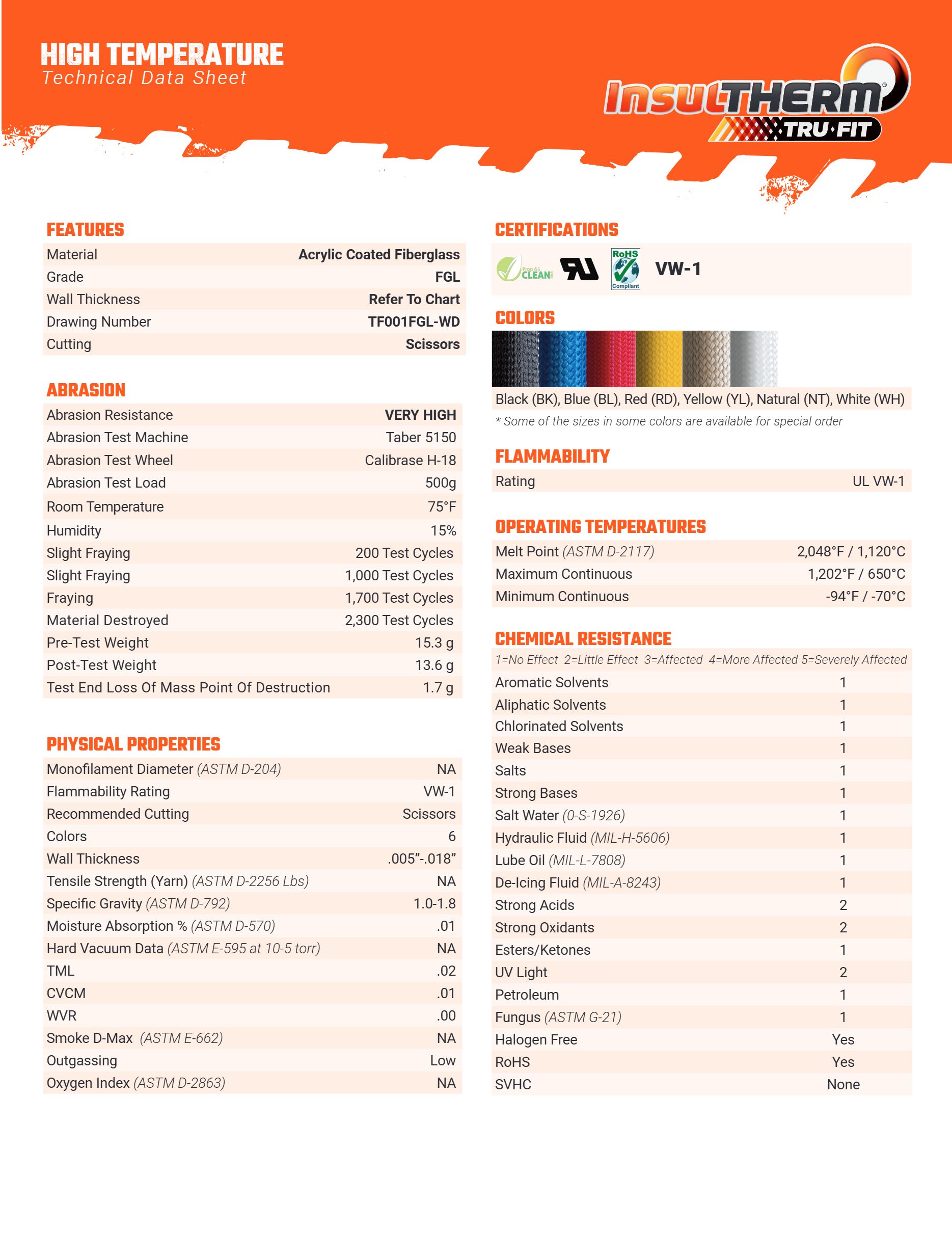

|Expansion Range||Standard Spool Put-Ups||Colors|
|Monofilament Thickness (ASTM D-204)||NA|
|Wall Thickness||.006 - .016|
|Tensile Strength - Yarn (ASTM D-2265) lbs.||NA|
|Specific Gravity||1.0 - 1.8|
|Moisture Absorption % (ASTM D-570)||.01|
|Hard Vacuum Data (ASTM E-595 at 10-5 torr)|
|Smoke D-Max (ASTM E-662)||NA|
|Chemical Resistance |
1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected
|Salt Water (O-S-1926)||1|
|Hydraulic Fluid (MIL-H-5606)||1|
|Lubricating Oil (MIL-L-7808)||1|
|De-Icing Fluid (MIL-A-8243)||1|
|Fungus (ASTM G-21)||1|
|Maximum Continuous (MIL-I-23053)||1,202°F/650°C|
|Melt (ASTM D-2117)||2,048°F/1,120°C|
