Techflex® ThermaShield® Connector Shield

Specially Designed to Protect Your Connectors From Radiant Heat

0.0 / 5

(0)

Connector Shield Features

  • Length: 3”
  • Material: Aluminized Fiberglass
  • Color: Silver
  • Diameter: 1-1/4”
  • Economical And Easy To Install
  • Reflects Radiant Heat
  • Insulates Delicate Wires & Components
  • Resists Gasoline And Engine Chemicals
See More Technical Specifications

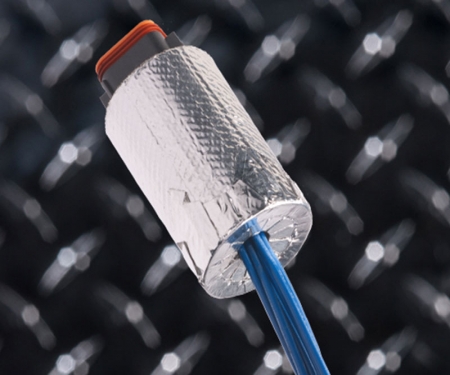

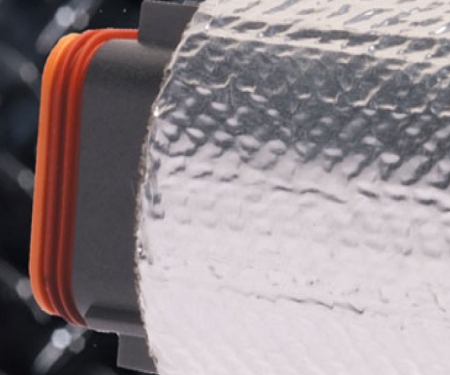

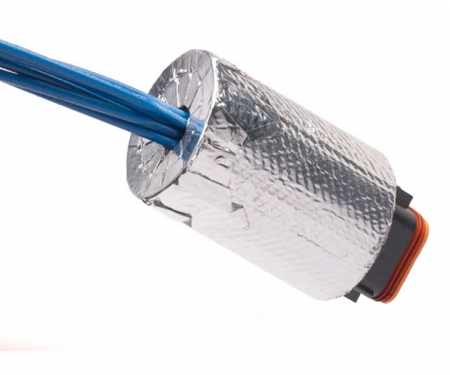

Connector Shield is specially designed to protect your connectors from all types of heat. Engine and exhaust temperatures on today’s motors can quickly exceed the design limits of plastic connector bodies. Our state-of-the-art shield slides easily over plugs or receptacles and can cut surface heat to a fraction of the unprotected temp. The semi-rigid design allows the shield to maintain its shape maximizing its ability to insulate your connections. The multi-layer composite system in our heat shield combats the effects of radiant heat with the aluminum skin and convective heat with thick insulation layers. If you have connections in the line of fire, connector shields are for you.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size ID
Product
Part #
Length Colors Lbs
1 1/4" CNS1.25 3" Silver 0.09



Overall Dimension 1-1/4" X 3"
Flammability Rating Non Flammable
Recommended Cutting Scissor
Wall Thickness 0.025”
Abrasion Resistance High
Operating Temperature Continuous -76°F to 392°F (-60°C to 200°C)
Melting Temperature 2048°F (1120°C)
Halogen Free Yes
ROHS Yes



Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
