Techflex® Flame Retardant Flexo Wrap Cable Sleeving
Side Entry With Hook & Loop Closure - Will Not Support Combustion
0.0 / 5
Flame Retardant Flexo Wrap Sleeving Features
- Hook & Loop Closure For Easy installation
- Side Entry Design
- Very High Abrasion Resistance
- Expands To Fit Over Connectors
- Operating Temps: -94°F to 257°F (-70°C to 125°C)
- Halogen Free - RoHS Compliant
- Resists Common Chemicals & Solvents
- Organic Flame Inhibitor
- Melt Temp: 482°F / 250°C
- Cuts Easily With Hot Knife
- Inside Diameters Are Measured as Round Not Flat

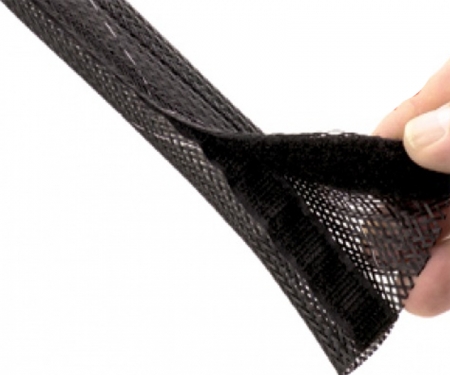

Flame Retardant Flexo Wrap sleeving provides the same hook and loop wire management flexibility as our standard Flexo Wrap along with the added safety feature of an organic flame inhibitor to provide an additional level of security. Flexo Wrap Flame Retardant sleeving is a safe, economical solution for a wide range of cable management applications where moderate levels of flame protection are needed. Flexo Wrap flame retardant sleeving is available in Black with a White Tracer to identify it as a flame retardant product.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Hook & Loop Width | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | |||||
| 1/2" 3/4" 1 1/4" 2" 2 1/2" | FWF0.50TB FWF0.75TB FWF1.25TB FWF2.00TB FXF2.50TB | 1/4" 5/8" 5/8" 5/8" 5/8" | 100' 100' 100' 100' 100' | 20' 15' 12' 10' 10' | TB TB TB TB TB | 1.30 1.80 2.30 3.20 3.75 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | VW-1 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .04 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 275 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 31 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 2 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Flame Retardant Flexo Wrap sleeving provides the same hook and loop wire management flexibility as our standard Flexo Wrap along with the added safety feature of an organic flame inhibitor to provide an additional level of security. Flexo Wrap Flame Retardant sleeving is a safe, economical solution for a wide range of cable management applications where moderate levels of flame protection are needed. Flexo Wrap flame retardant sleeving is available in Black with a White Tracer to identify it as a flame retardant product.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Hook & Loop Width | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | |||||
| 1/2" 3/4" 1 1/4" 2" 2 1/2" | FWF0.50TB FWF0.75TB FWF1.25TB FWF2.00TB FXF2.50TB | 1/4" 5/8" 5/8" 5/8" 5/8" | 100' 100' 100' 100' 100' | 20' 15' 12' 10' 10' | TB TB TB TB TB | 1.30 1.80 2.30 3.20 3.75 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | VW-1 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .04 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 275 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 31 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 2 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
