Techflex® Flame Retardant F6® Woven Wrap Cable Sleeving
Wrap Around - Tighter Weave For Fuller Coverage & Abrasion Resistance
0.0 / 5
Flame Retardant F6 Woven Wrap Sleeving Features
- High Coverage, Self-Wrapping Design
- Ideal For Protecting Components Without Disconnecting Them
- Melt Temp 482°F
- Cut & Abrasion Resistant
- Passes Smoke Density Test ASTM E-662
- Passes Surface Flammability Test ASTM E-162
- Passes Smoke Toxicity Test SMP 800-C
- Inside Diameters Are Measured as Round Not Flat

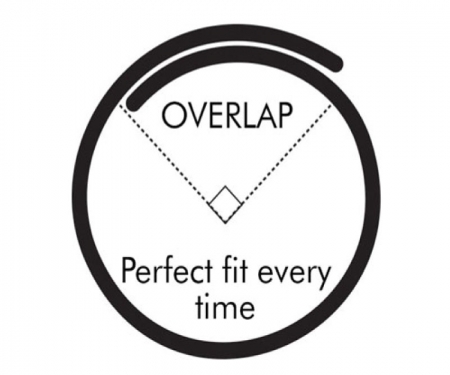

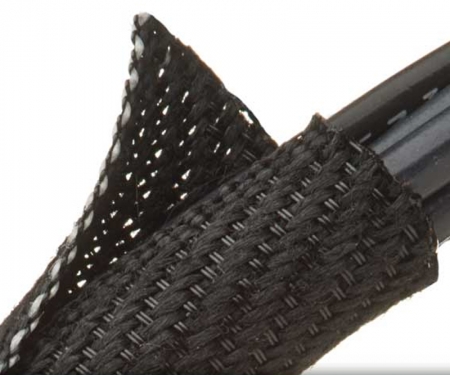

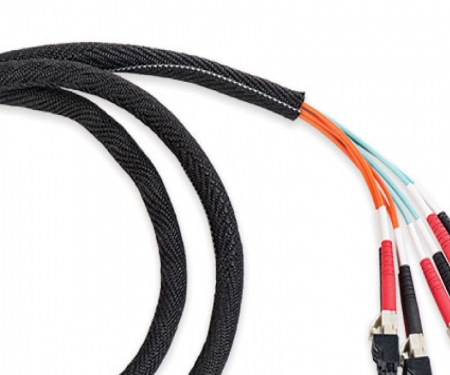

Flame Retardant F6 Woven Wrap is a VW-1 Rated version our industry recognized F6 Woven Wrap, with the added advantage of a flame inhibitor to provide an extra level of safety. It utilizes many of the same characteristics as our original F6 splie braided sleeving including the easy wrap around design and the extra overlap to ensure complete protection of important electronic communication and power systems. The new woven construction provides superior elastic flexibility with unbeatable coverage over any harness assembly. Through a unique process, the blend of monofilament and multifilament polyester fibers are formed into a sleeving with memory that causes the sleeve to self close, and also snap back when opened. The combination of flame retardance, ease of installation, and complete coverage make F6 Woven Flame Retardant sleeving an ideal solution for many commercial and aerospace applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Standard Spool Put-Ups | Colors | Overlap | Lbs/ 100' | ||
| Bulk | A | B | ||||||
| 3/16" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" | F6V0.19BK F6V0.38BK F6V0.50BK F6V0.75BK F6V1.00BK F6V1.25BK F6V1.50BK | .027" .027" .027" .027" .027" .027" .027" | 3,000' 2,000' 1,500' 1,000' 460' 330' 260' | 500' 250' 200' 150' 100' 75' 50' | 100' 100' 75' 50' 50' 25' 25' | 1 1 1 1 1 1 1 | 51% 41% 35% 28% 26% 25% 23% | 0.8 1.2 1.6 2.5 3.2 3.7 4.8 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | |
| Flammability Rating | VW-1 Pending |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .027 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Flame Retardant F6 Woven Wrap is a VW-1 Rated version our industry recognized F6 Woven Wrap, with the added advantage of a flame inhibitor to provide an extra level of safety. It utilizes many of the same characteristics as our original F6 splie braided sleeving including the easy wrap around design and the extra overlap to ensure complete protection of important electronic communication and power systems. The new woven construction provides superior elastic flexibility with unbeatable coverage over any harness assembly. Through a unique process, the blend of monofilament and multifilament polyester fibers are formed into a sleeving with memory that causes the sleeve to self close, and also snap back when opened. The combination of flame retardance, ease of installation, and complete coverage make F6 Woven Flame Retardant sleeving an ideal solution for many commercial and aerospace applications.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Standard Spool Put-Ups | Colors | Overlap | Lbs/ 100' | ||
| Bulk | A | B | ||||||
| 3/16" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" | F6V0.19BK F6V0.38BK F6V0.50BK F6V0.75BK F6V1.00BK F6V1.25BK F6V1.50BK | .027" .027" .027" .027" .027" .027" .027" | 3,000' 2,000' 1,500' 1,000' 460' 330' 260' | 500' 250' 200' 150' 100' 75' 50' | 100' 100' 75' 50' 50' 25' 25' | 1 1 1 1 1 1 1 | 51% 41% 35% 28% 26% 25% 23% | 0.8 1.2 1.6 2.5 3.2 3.7 4.8 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | |
| Flammability Rating | VW-1 Pending |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .027 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
