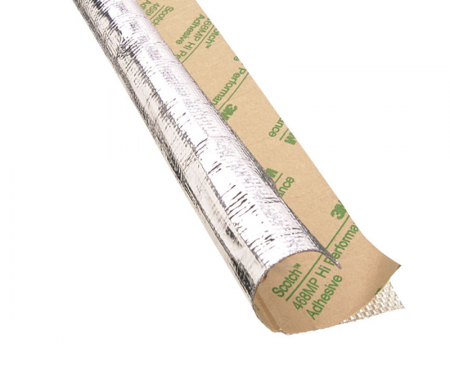

Techflex® ThermaShield® Flat Heat Reflective Wrap
Aluminized Fiberglass Sheeting With a Full High Temp Adhesive Backing
0.0 / 5
Thermashield Flat Wrap Features
- Entire Backside Has High Temp Adhesive
- Operating Temperature Range -76° to 392°F (-60° to 200°C.)
- Insulates Delicate Wires and Components
- Economical & Easy to Install
- Cuts Easily with Scissors
- Reflects Radiant Heat
- Resists Gasoline and Engine Chemicals
- ROHS Compliant
- 2,048°F / 1,120°C. Melt Temp
- Note: Measurements Are Listed as Inside Diameter.

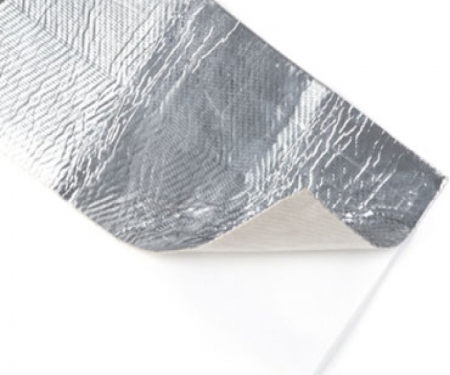

Thermashield Flat contains an entire side of high temperature adhesive Thermashield Flat is an aluminum laminated fiberglass sheet with a full coating of permanent, high-temperature adhesive. This unique product applies directly to any clean surface and is an ideal solution for protecting delicate electronic component boxes mounted close to engines or other heat sources. When applied, the aluminum laminate reflects heat away, and the insulating fiberglass backing protects the fragile contents from thermal damage and failure.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Product Sizes
| Size | Part Number | Wall Thickness Max | Bulk Spool | Shop Spool | Lbs / 100' |
|---|---|---|---|---|---|
| 1" | TSN1.00SV | .025" | 250' | 100' | 1.60 |
| 1 1/2" | TSN1.50SV | .025" | 250' | 100' | 2.00 |
| 2" | TSN2.00SV | .025" | 250' | 100' | 2.75 |
| 3" | TSN3.00SV | .025" | 250' | 100' | 4.30 |
| 4" | TSN4.00SV | .025" | 250' | 100' | 5.60 |
| 5" | TSN5.00SV | .025" | 200' | 100' | 7.60 |
| 6" | TSN6.00SV | .025" | 100' | 50' | 9.20 |
| 6 7/8" | TSN6.88SV | .025" | 100' | 50' | 10.900 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Thermashield Flat contains an entire side of high temperature adhesive Thermashield Flat is an aluminum laminated fiberglass sheet with a full coating of permanent, high-temperature adhesive. This unique product applies directly to any clean surface and is an ideal solution for protecting delicate electronic component boxes mounted close to engines or other heat sources. When applied, the aluminum laminate reflects heat away, and the insulating fiberglass backing protects the fragile contents from thermal damage and failure.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Product Sizes
| Size | Part Number | Wall Thickness Max | Bulk Spool | Shop Spool | Lbs / 100' |
|---|---|---|---|---|---|
| 1" | TSN1.00SV | .025" | 250' | 100' | 1.60 |
| 1 1/2" | TSN1.50SV | .025" | 250' | 100' | 2.00 |
| 2" | TSN2.00SV | .025" | 250' | 100' | 2.75 |
| 3" | TSN3.00SV | .025" | 250' | 100' | 4.30 |
| 4" | TSN4.00SV | .025" | 250' | 100' | 5.60 |
| 5" | TSN5.00SV | .025" | 200' | 100' | 7.60 |
| 6" | TSN6.00SV | .025" | 100' | 50' | 9.20 |
| 6 7/8" | TSN6.88SV | .025" | 100' | 50' | 10.900 |
