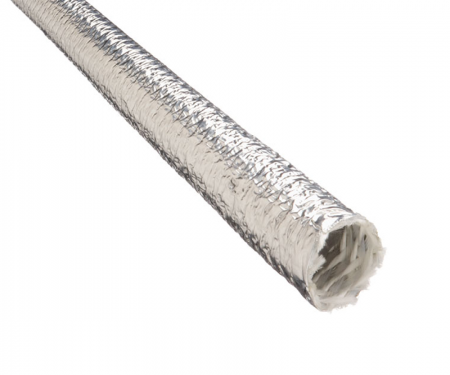

Techflex® ThermaShield® Heat Reflective Convoluted Tubing
Semi-Rigid Laminated Flexible Fiberglass Tube - 4' Lengths
0.0 / 5
Thermashield Convoluted Tubing Features
- Length: 4’ Sticks
- Operating Temps: -76°F to 392°F (-60°C to 200°C)
- Reflects Radiant Heat & Insulates Hoses & Pipes
- Resists Common Chemicals & Solvents
- Cuts Easily With Scissors or Shears
- Halogen And Asbestos Free
- Melt Temp: 2,048°F/1,120°C
- Note: Measurements Are Listed as Inside Diameter.

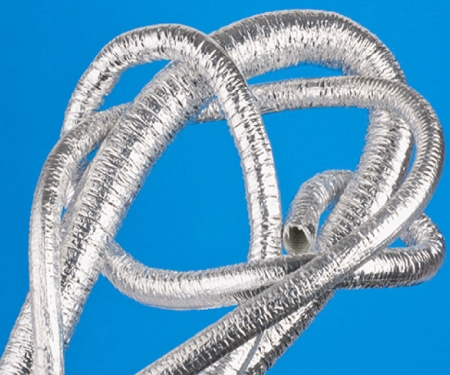

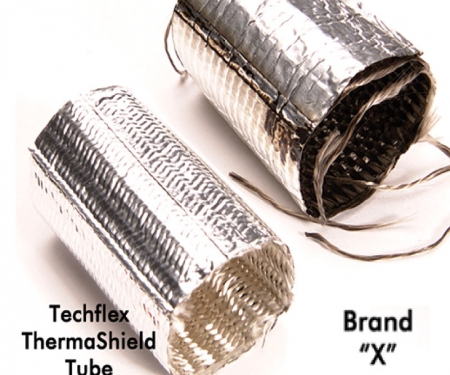

It is ideally suited for applications where wires are exposed to radiant heat. It will even help keep high performance engines running more efficiently. Thermashield is made by laminating an aluminized metallic heat shield to a layer of strong, tightly braided fiberglass insulation.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Product Sizes
| Size | Part Number | Wall Thickness Max | Bulk Spool | Shop Spool | Box A | Box B | Lbs / 10 Pcs. |
|---|---|---|---|---|---|---|---|
| 1/2" | TCN0.50SV | .045" | 250 | 70 | 40 | 25 | 1.20 |
| 5/8" | TCN0.63SV | .045" | 150 | 60 | 35 | 20 | 1.50 |
| 3/4" | TCN0.75SV | .045" | 125 | 50 | 30 | 15 | 1.80 |
| 1" | TCN1.00SV | .045" | 88 | 30 | 20 | 9 | 2.10 |
| 1 1/4" | TCN1.25SV | .045" | 63 | 20 | 10 | 6 | 2.30 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
It is ideally suited for applications where wires are exposed to radiant heat. It will even help keep high performance engines running more efficiently. Thermashield is made by laminating an aluminized metallic heat shield to a layer of strong, tightly braided fiberglass insulation.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Product Sizes
| Size | Part Number | Wall Thickness Max | Bulk Spool | Shop Spool | Box A | Box B | Lbs / 10 Pcs. |
|---|---|---|---|---|---|---|---|
| 1/2" | TCN0.50SV | .045" | 250 | 70 | 40 | 25 | 1.20 |
| 5/8" | TCN0.63SV | .045" | 150 | 60 | 35 | 20 | 1.50 |
| 3/4" | TCN0.75SV | .045" | 125 | 50 | 30 | 15 | 1.80 |
| 1" | TCN1.00SV | .045" | 88 | 30 | 20 | 9 | 2.10 |
| 1 1/4" | TCN1.25SV | .045" | 63 | 20 | 10 | 6 | 2.30 |
