Kable Kontrol® Vortex® Spiral Wrap Tubing
Available In 5 Colors - 1/8" - 1" Inside Diameters
Kable Kontrol® Vortex Spiral Wrap Tubing Features
- Quick & Simple To Install
- Enhanced Protection From Abrasion
- Will Not lose Coil Strength With Repeated Flexing
- 1/16” To 7” Bundle Diameter Expansion Range
- Easily Removed & Re-Applied
- Ideal For Cable Management & Industrial Applications
- -103°F - 215°F (-75°C - 101°C) Operating Temperature Range

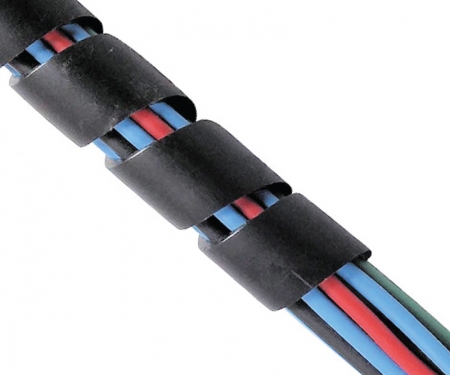

Kable Kontrol’s Vortex® Spiral Wrap Tubing is made from durable Polyethylene, and easily slides over runs of cables & hoses, allowing them to retain their necessary flexibility regardless of corners while being securely concealed and shielded from abrasive forces. The
Measurements Are Inside Diameter
5’ & 10’ Cut Lengths Are Non Cancellable Non-Refundable
Prices May Vary Based On Color
Product Details
simple installation is complemented by very easy removal, and despite frequent bending, flexing and installing, each length of Polyethylene Spiral Cable Wrap will maintain its strength and integrity. Cable and hose break-outs are also accommodated by the numerous slits along the spiral hose wrap tubing, shop now for hot deals.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Spiral Wrap Sizing Chart | ||||||
| Model | Size | Outside Diameter(b) | Inside Diameter(a) | Pitch(c) | Max. Bundle Diameter Range | Optimal Bundle Diameter Range |
| SPW-125 | 1/8" | 0.183" | 0.125" | 0.283" | 1/16"-1/4" | 1/16"-1/4" |
| SPW-250 | 1/4" | 0.314" | 0.25" | 0.511" | 3/16"-2" | 3/16"-1/2" |
| SPW-375 | 3/8" | 0.439" | 0.375" | 0.628" | 5/16"-3" | 5/16"-3/4" |
| SPW-500 | 1/2" | 0.584" | 0.5" | 0.632" | 3/8"-4" | 3/8"-1" |
| SPW-750 | 3/4" | 0.862" | 0.75" | 0.813" | 3/4"-5" | 3/4"-2" |
| SPW-1000 | 1" | 1.18" | 1" | 1.75" | 1"-7" | 1"-3" |
| Material Specifications | ||||
| MATERIAL | MIN OPERATING TEMPERATURE | MAX OPERATING TEMPERATURE | UV RESISTANCE | UL FLAME RATING |
| Polyethylene | -103ºF -75ºC | 215ºF 101ºC | Very High | 94V-2 |
