Fire Resistant Anti-Static (FRAS) Spiral Wrap

Prevent Hazards From Potential Static Discharge

(FRAS) Spiral Wrap Features



  • MSHA Certified

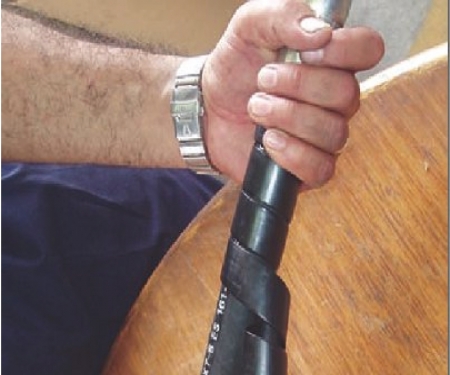

  • You can wrap and bundle one hose or cable at a time, or several at once
  • HDPE material make it ideal for protecting cables against UV rays, damages &cables can not be crushed
  • Perfect for use in hydraulic equipment, underground mining, welding, drilling, tunneling and manufacturing
  • Made from conductive thermoplastic compound on a polypropylene based
Click for More Details or Description

Product Details

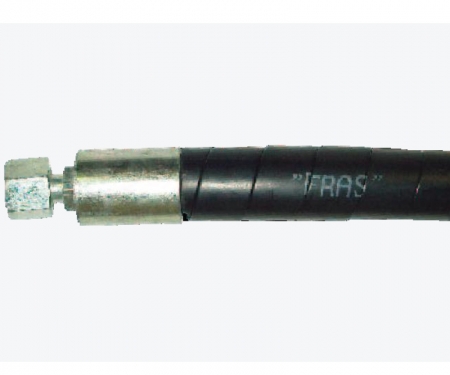

FRAS spiral wrap is made of a low-resistivity material to prevent bundles from building up a charge and discharging sparks in unstable environments, which can cause hazardous flames. In addition to its anti-static nature, this protective wrap is fire resistant, so it won't ignite in the event of a fire.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Part Number Hose ID (Inch) ID Variance Hose OD Range Wall Thickness Helix – Band Width (In) Box Qty (Feet)
SPW-FRAS12 0.4” +/- 0.02” 0.39” – 0.66” 0.06” +/- 0.01” 0.4” +/- 0.08” 165’
SPW-FRAS16 0.45” +/- 0.02” 0.47” – 086” 0.06” +/- 0.01” 0.48” +/- 0.08” 66’
SPW-FRAS20 0.55” +/- 0.02” 0.62” – 1.06” 0.07” +/- 0.01” 0.57” +/- 0.08” 66’
SPW-FRAS25 00.8” +/- 0.02” 0.86” – 1.37” 0.08” +/- 0.01” 0.82” +/- 0.12” 66’
SPW-FRAS32 1” +/- 0.02” 1.06” – 1.69” 0.09” +/- 0.01” 0.94” +/- 0.12” 66’
SPW-FRAS40 1.26” +/- 0.04” 1.3” – 2.17” 0.09” +/- 0.01” 1.18” +/- 0.12” 66’
SPW-FRAS50 1.5” +/- 0.04” 1.65” – 2.52” 0.12” +/- 0.01” 1.38” +/- 0.12” 66’
SPW-FRAS63 2.0” +/- 0.04” 2.05” – 2.95” 0.14” +/- 0.01” 1.57” +/- 0.16” 66’
SPW-FRAS75 2.4” +/- 0.04” 2.56” – 3.8” 0.15” +/- 0.02” 1.6” +/- 0.16” 66’
SPW-FRAS90  2.83” +/- 0.04” 3.15” – 4.9” 0.18” +/- 0.02” 1.78” +/- 0.16” 66’
SPW-FRAS110 3.43” +/- 0.04” 3.8” – 5.9”+ 0.22” +/- 0.02” 2.17" +/- 0.16” 40’



Physical Properties
Density 0.97 g/cm³
Tensile Strength 20 MPa
Yield Strength 24 MPa
Volume Resistivity <10cm³
Surface Resistivity <105
Shrinkage 1.2% - 1.5%
Modulus of Elasticity 1500 MPa
