All-Purpose Low Profile Traffic Jersey Barrier
24" X 96" - 6 Colors Available - Water or Sand Fill
0.0 / 5
All-Purpose Low Profile Traffic Jersey Barrier

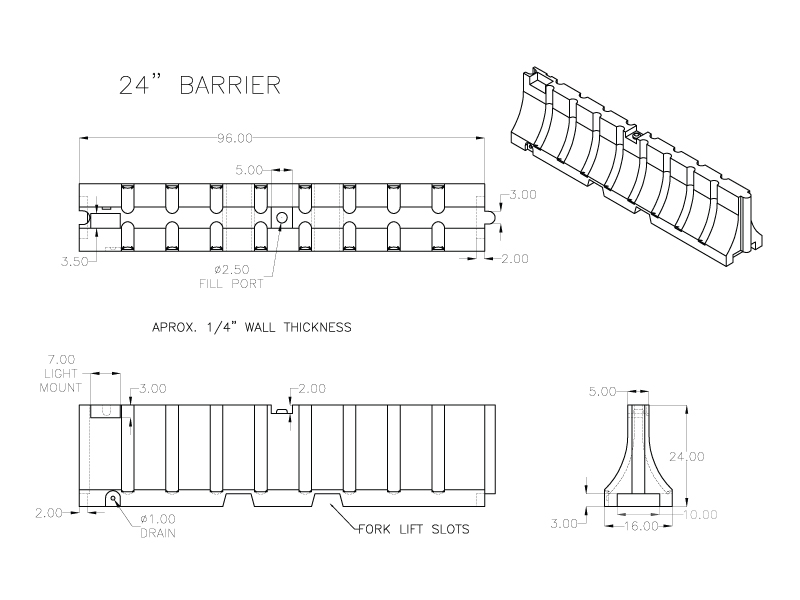

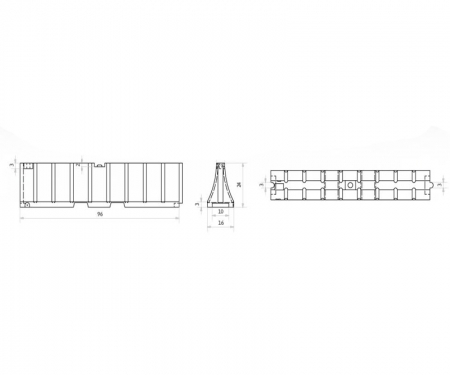

- Overall Dimensions: 24″H x 96″L x 16″W.
- UV and long-term fade resistant
- Impact-resistant
- Ballastable with water or sand
- Deployable by one or two people
- No heavy equipment needed, but forklift accessible
- Structurally Sound
- Lightweight
- Durable
- Drain plugs
- Screw-on fill caps and lids
- Compatible with square bolt-on or round screw-in lights
- Easily relocated
- Lower labor costs
- Allows for application flexibility
- Larger barriers accept fencing
- Withstands harsh treatment during installation and relocation
- Pre-molded attachment areas for lights and flags
- Long-lasting visual appeal
- Composed of recyclable material
- Quick installation and removal
- Uniform wall thickness with thicker corners and edges

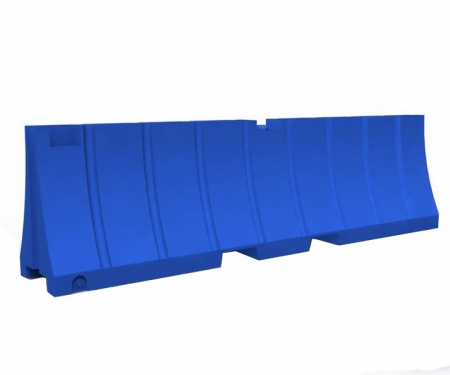

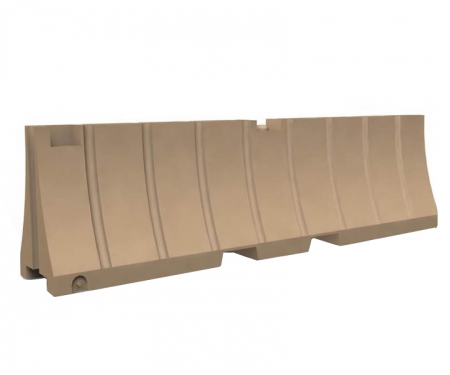

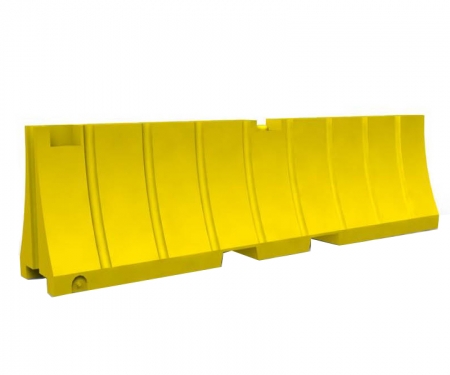

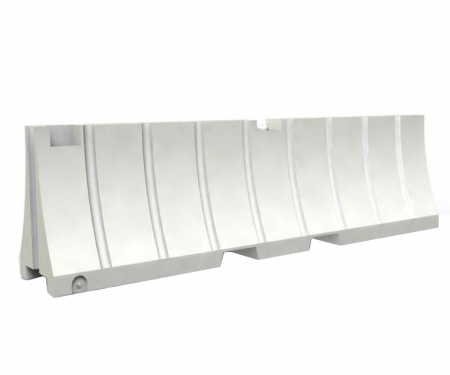

All-Purpose Low Profile traffic Safety Barrier – 24″H x 96″L x 16″W. Made from UV-Resistant Polyethylene. Available in Orange, White, Yellow, Tan, Olive Drab, or Blue. 1/4″ wall thickness. Plastic road barriers have Built-in molded forklift slots.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Most of our barriers now have fill lines. We recommend only filling the barriers to the
the fill line – over filling can cause bulging.
10x96x10 – Fill line is 17 gallons of water – total weight including barrier 165 lbs
24x96x16 – 7” above parting line is 50 gallons of water – total weight including barrier 467 lbs
Stackable – Fill Line is 50 gallons of water – total weight including barrier 487 lbs
Wedge – Fill Line is 70 gallons of water – total weight including barrier 653 lbs
32x72x18 – 15” above parting line is 70 gallon of water – total weight including barrier 653 lbs
42x72x24 – Fill Line is 100 gallon of water – total weight is 834 lbs + weight of barrier
42x96x24 – 13” above parting line is 130 gal. of water – total weight is 1084 lbs + weight of barrier
31x120x24 – Filling ½ full is 80 gallons of water – total weight is 667 lbs + weight of barrier
48” Cont Barrier – Fill Line is 75 gallons of water – total weight including barrier 745 lbs
This Product is Made to Order. Lead Times May Apply
Non-Cancellable & Non-Refundable
Products Ship LTL FREIGHT ONLY
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
All-Purpose Low Profile traffic Safety Barrier – 24″H x 96″L x 16″W. Made from UV-Resistant Polyethylene. Available in Orange, White, Yellow, Tan, Olive Drab, or Blue. 1/4″ wall thickness. Plastic road barriers have Built-in molded forklift slots.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Most of our barriers now have fill lines. We recommend only filling the barriers to the
the fill line – over filling can cause bulging.
10x96x10 – Fill line is 17 gallons of water – total weight including barrier 165 lbs
24x96x16 – 7” above parting line is 50 gallons of water – total weight including barrier 467 lbs
Stackable – Fill Line is 50 gallons of water – total weight including barrier 487 lbs
Wedge – Fill Line is 70 gallons of water – total weight including barrier 653 lbs
32x72x18 – 15” above parting line is 70 gallon of water – total weight including barrier 653 lbs
42x72x24 – Fill Line is 100 gallon of water – total weight is 834 lbs + weight of barrier
42x96x24 – 13” above parting line is 130 gal. of water – total weight is 1084 lbs + weight of barrier
31x120x24 – Filling ½ full is 80 gallons of water – total weight is 667 lbs + weight of barrier
48” Cont Barrier – Fill Line is 75 gallons of water – total weight including barrier 745 lbs
