Techflex® Insultherm® Heavy Duty Braided Cable Sleeving
Acryllic Coated Fiberglass Sleeving - Max Temp: 1,200°F
0.0 / 5

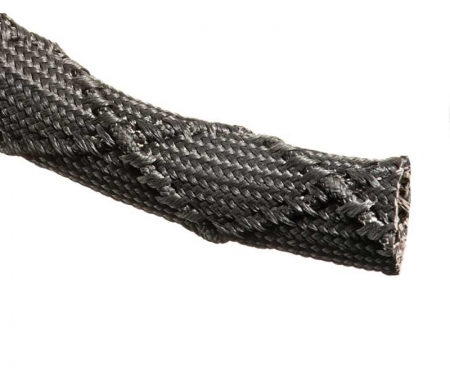

Insultherm Heavy Duty Sleeving
- Heavy Weight Braided Fiberglass Wont Burn, Melt or Become Brittle
- Minimal Dusting When Cut & Handled
- Cut and Abrasion Resistant
- Easy to Install - Cuts with Scissors
- Resists Gasoline and Engine Chemicals
- Inside Diameters Are Measured as Round Not Flat

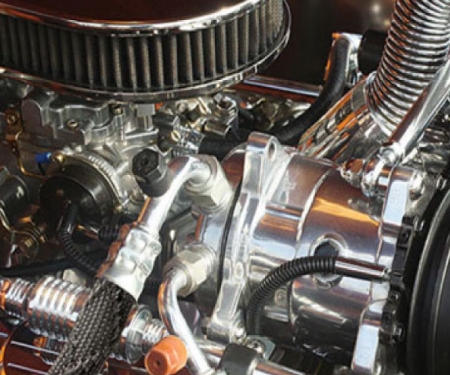

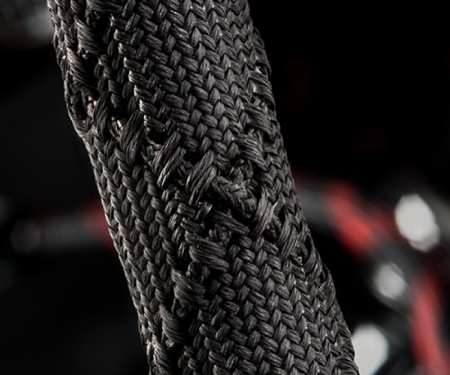

INSULTHERM Heavy Duty is a braided fiberglass sleeving made in a heavy wall construction with a high temp cord braided into the sleeving. Insultherm Heavy Duty sleeving is saturated with high temperature acrylic resins which adds rigidity and reduces fray when cut. The high temperature fiberglass cord braided into the sleeving adds significant abrasion protection and allows the sleeving to expand to much larger diameters, making it easier to apply over longer lengths. Insultherm Heavy Duty sleeving is ideal heat protection for cables and hoses in a wide range of available sizes and will withstand 1,200°F temperatures. This sleeving is designed to provide thermal insulation and protection for EGR tubes, fuel lines, hydraulic and industrial hose applications as well as many welding and automotive applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Maximum Diameter | Wall Thickness | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Spool | Spool | ||||||
| 1/2" 3/4" 1" 1 1/4" 1 3/8" 1 1/2" | FGS0.50BK FGS0.75BK FGS1.00BK FGS1.25BK FGS1.38BK FGS1.50BK | 7/8" 2 3/4" 2 1/2" 3 3/8" 4 3/8" 5 3/8" | .050" .058" .073" .072" .072" .090" | 200' 200' 200' 100' 100' 100' | 50' 50' 50' 25' 25' 25' | BK BK BK BK BK BK | 7.30 13.60 17.00 21.70 24.75 27.80 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | VW-1 |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .050 - .090 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | NA |
| Abrasion Resistance | High |
| Specific Gravity | 1.0 - 1.8 |
| Moisture Absorption % (ASTM D-570) | .01 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .02 |
| CVCM | .01 |
| WVR | .00 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | Low |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 1,202°F/650°C |
| Melt (ASTM D-2117) | 2,048°F/1,120°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
INSULTHERM Heavy Duty is a braided fiberglass sleeving made in a heavy wall construction with a high temp cord braided into the sleeving. Insultherm Heavy Duty sleeving is saturated with high temperature acrylic resins which adds rigidity and reduces fray when cut. The high temperature fiberglass cord braided into the sleeving adds significant abrasion protection and allows the sleeving to expand to much larger diameters, making it easier to apply over longer lengths. Insultherm Heavy Duty sleeving is ideal heat protection for cables and hoses in a wide range of available sizes and will withstand 1,200°F temperatures. This sleeving is designed to provide thermal insulation and protection for EGR tubes, fuel lines, hydraulic and industrial hose applications as well as many welding and automotive applications.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Maximum Diameter | Wall Thickness | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Spool | Spool | ||||||
| 1/2" 3/4" 1" 1 1/4" 1 3/8" 1 1/2" | FGS0.50BK FGS0.75BK FGS1.00BK FGS1.25BK FGS1.38BK FGS1.50BK | 7/8" 2 3/4" 2 1/2" 3 3/8" 4 3/8" 5 3/8" | .050" .058" .073" .072" .072" .090" | 200' 200' 200' 100' 100' 100' | 50' 50' 50' 25' 25' 25' | BK BK BK BK BK BK | 7.30 13.60 17.00 21.70 24.75 27.80 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | NA |
| Flammability Rating | VW-1 |
| Recommended Cutting | Scissor |
| Colors | 1 |
| Wall Thickness | .050 - .090 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | NA |
| Abrasion Resistance | High |
| Specific Gravity | 1.0 - 1.8 |
| Moisture Absorption % (ASTM D-570) | .01 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .02 |
| CVCM | .01 |
| WVR | .00 |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | Low |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 1,202°F/650°C |
| Melt (ASTM D-2117) | 2,048°F/1,120°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
