Bumble Bee® 4 Channel GM Cable Protector
3" H Channel Size | 30,000 Lbs Per Axle Max Capacity
0.0 / 5
Bumble Bee® 4 Channel GM Cable Protector Features
- 4 Oversized Channels Each is 3" W x 3” H
- Top Loading For Easier Installation
- Ideal For Manufacturing Application Where Hoses & Cables Are Present
- Space Efficient Entire Cable Protector Only 24" Wide
- Up to 30,000 lbs per axle load bearing
- Highly Visible Yellow & Black Color Scheme
- Non-skid surface
- Made from durable and high impact material: Durathane
Bumble Bee® GM Cable & Hose Protectors were designed primarily to protect and organize high capacity hydraulic hoses used in plants and manufacturing facilities. They are also an ideal solution for cable protection in any high-volume, limited access, automated manufacturing, and industrial facilities
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
The Bumble Bee® GM Cable Protector has a maximum weight capacity of 30,000 lbs.
| PART # | Cable Protector Type | Channel Width | Channel Height | Length | Width | Height | Color |
|---|---|---|---|---|---|---|---|

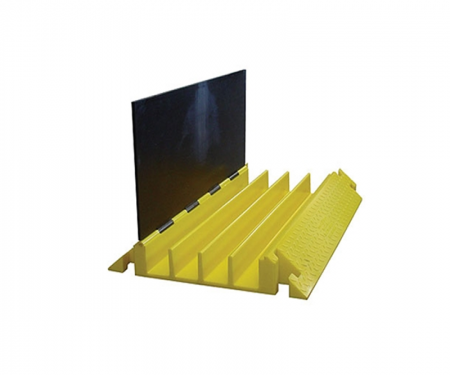

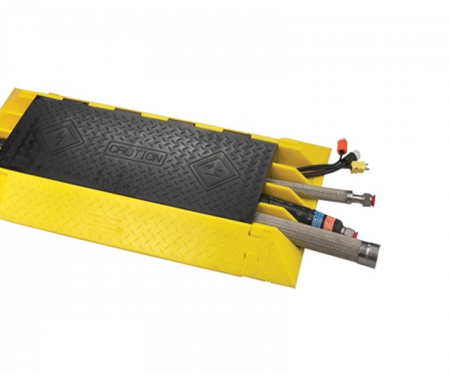

| BB4GM300
| 4 Channel Extra Large (GM) Cable Protector | 3" Channel Width | 3" Channel Height | 36" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |

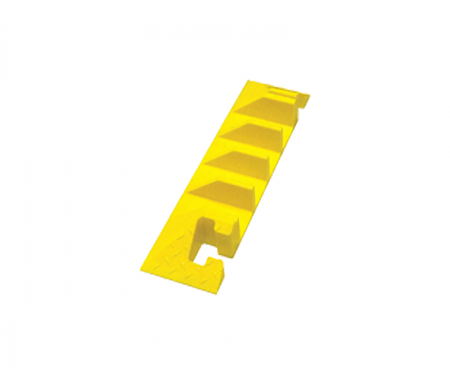

| BB4GM300EF
| Female End Cap | 3" Channel Width | 3" Channel Height | 7" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |

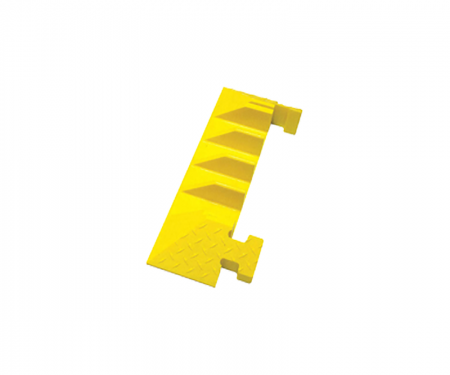

| BB4GM300EM
| Male End Cap | 3" Channel Width | 3" Channel Height | 7" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |

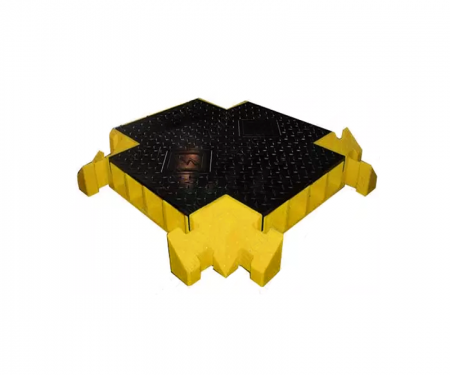

| BB4GM300X
| X Intersection | 3" Channel Width | 3" Channel Height | 26" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |

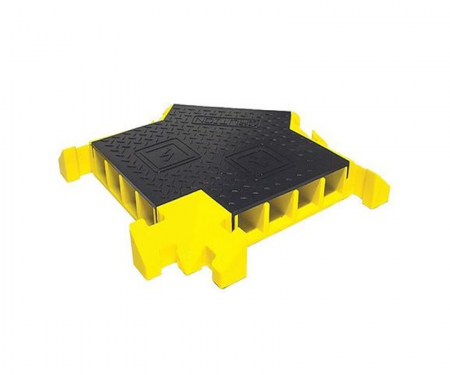

| BB4GM300Y
| Y Intersection | 3" Channel Width | 3" Channel Height | 26" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Bumble Bee® GM Cable & Hose Protectors were designed primarily to protect and organize high capacity hydraulic hoses used in plants and manufacturing facilities. They are also an ideal solution for cable protection in any high-volume, limited access, automated manufacturing, and industrial facilities
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
The Bumble Bee® GM Cable Protector has a maximum weight capacity of 30,000 lbs.
| PART # | Cable Protector Type | Channel Width | Channel Height | Length | Width | Height | Color |
|---|---|---|---|---|---|---|---|
| BB4GM300
| 4 Channel Extra Large (GM) Cable Protector | 3" Channel Width | 3" Channel Height | 36" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |
| BB4GM300EF
| Female End Cap | 3" Channel Width | 3" Channel Height | 7" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |
| BB4GM300EM
| Male End Cap | 3" Channel Width | 3" Channel Height | 7" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |
| BB4GM300X
| X Intersection | 3" Channel Width | 3" Channel Height | 26" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |
| BB4GM300Y
| Y Intersection | 3" Channel Width | 3" Channel Height | 26" Long | 24" Wide | 4" Height | (Black Lid / Yellow Base) |
