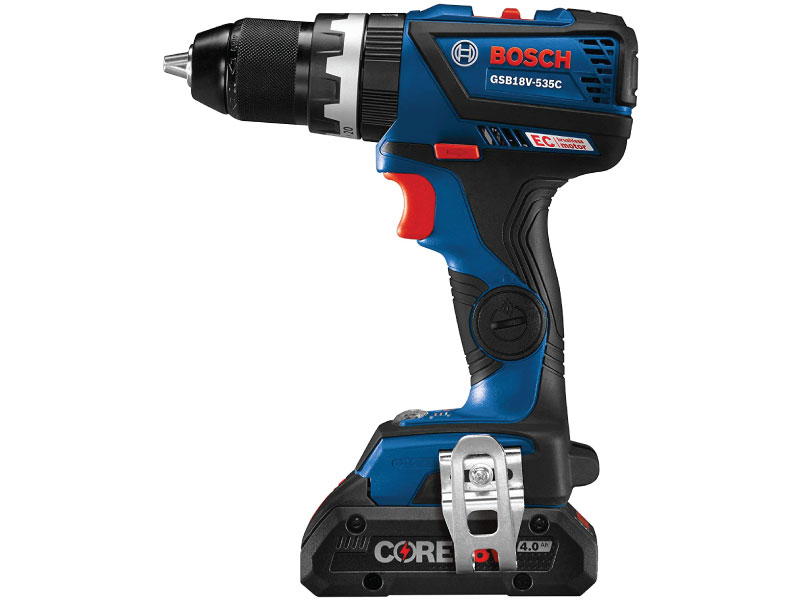

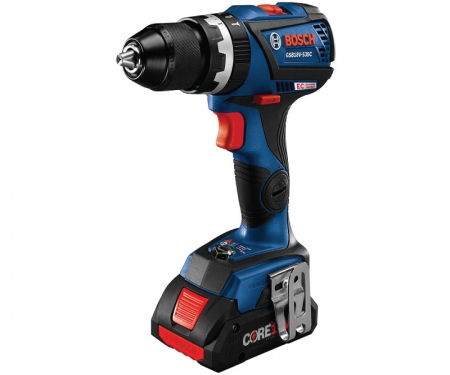

BOSCH® Connected-Ready Compact Tough 1/2" Hammer Drill/Driver Kit - 18V EC Brushless
Engineered for tough jobs, with next-gen convenience
0.0 / 5
BOSCH® Connected-Ready Compact Tough 1/2" Hammer Drill/Driver Kit
- AUTOMATIC FREE SHIPPING FOR ALL BOSCH® ORDERS ABOVE $149.99
- Next-gen hammer drill power and control – engineered with Bluetooth® connectivity (when the optional Connectivity Tool Module is installed), KickBack Control, 20+1 precision clutch and EC Brushless motor
- Bluetooth® connectivity – connects to optional Connectivity Tool Module to customize tool settings on a connected device
- Compact CORE18V 4.0 Ah Li-ion battery – engineered to provide next-gen power and runtime, while losing the weight, for optimized performance-to-weight ratio
- KickBack Control – reduces the risk from sudden rotational torque reaction in a bind-up scenario
- EC Brushless motor – efficient motor that delivers 535 In.-Lbs. of torque with a long lifetime
- Precision clutch with 20+1 settings – provides driving accuracy for reduced fastener damage
- High-power cells – uses enhanced 21700 cell technology, combined with advanced battery design for greater efficiency, to produce longer runtime
- Cutting-edge cell design – engineered to improve performance
- Bosch-exclusive CoolPack 2.0 technology – cooling the battery 20% faster than previous 4.0 Ah double-layer versions
- Upgraded all-metal chuck – for more durability, along with first-rate bit retention
- Drill-area LED with feedback – illuminates dark zones; provides tool-status change feedback
- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance
Details:
This Bosch hammer drill is engineered for tough jobs, with next-gen convenience and CORE18V power. The GSB18V-535CB25 18V EC Brushless Connected-Ready Compact Tough 1/2 In. hammer drill kit features a tool with Bluetooth® connectivity (which connects with an optional Connectivity Tool Module), linking the free Bosch Toolbox app on any connected device for enhanced tool control and feedback. The kit includes two next-gen CORE18V 4.0 Ah compact batteries. Each keeps the power and runtime, while losing the weight, with 21700 cell technology. The CORE18V matches the power of the original two-layer 4.0 Ah battery with half the number of cells. It features the CoolPack 2.0 heat-management system. This hammer drill’s powerful EC Brushless motor delivers 535 In.-Lbs. of torque and 0-28,500 bpm. It has variable speed settings; one for high-speed (0-1,900 rpm) and one for high power (0-600 rpm). The cordless drill has KickBack Control to reduce the risk from sudden rotational torque reaction, a 20+1 precision clutch; an all-metal chuck that provides durability and a longer belt clip.
Benefits:
- Next-gen hammer drill power and control – engineered with Bluetooth® connectivity (when the optional Connectivity Tool Module is installed), KickBack Control, 20+1 precision clutch and EC Brushless motor
- Bluetooth® connectivity – connects to optional Connectivity Tool Module to customize tool settings on a connected device
- Compact CORE18V 4.0 Ah Li-ion battery – engineered to provide next-gen power and runtime, while losing the weight, for optimized performance-to-weight ratio
- KickBack Control – reduces the risk from sudden rotational torque reaction in a bind-up scenario
- EC Brushless motor – efficient motor that delivers 535 In.-Lbs. of torque with a long lifetime
- Precision clutch with 20+1 settings – provides driving accuracy for reduced fastener damage
- High-power cells – uses enhanced 21700 cell technology, combined with advanced battery design for greater efficiency, to produce longer runtime
- Cutting-edge cell design – engineered to improve performance
- Bosch-exclusive CoolPack 2.0 technology – cooling the battery 20% faster than previous 4.0 Ah double-layer versions
- Upgraded all-metal chuck – for more durability, along with first-rate bit retention
- Drill-area LED with feedback – illuminates dark zones; provides tool-status change feedback
- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Specifications | |
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery Voltage (V) | 18 |
| Battery/Charger | Included |
| Chuck Capacity | 1/2" Keyless Chuck |
| Chuck Design | Keyless |
| Chuck Size | 1/2 in |
| Height | 7.9" |
| Length | 7.25" |
| No Load BPM | 28,500 |
| No Load RPM | 0-600 / 0-1,900 |
| Torque (in. lbs.) | 535 |
| Weight | 2.7lb |
| Width | 3.0" |
| Works With | Bosch Bluetooth® Connectivity Module GCY42 (See tool manual for its connectivity/app features.) Dust Extraction/Collection Hood HDC200 |
| Includes | (1) GSB18V-535C 18V EC Brushless Connected-Ready Compact Tough 1/2 In. Hammer Drill/Driver, (2) 18V CORE18V Lithium-Ion 4.0 Ah Compact Batteries, (1) 18V Charger, (1) 4x Bit Holder, (4) Bits, (1) Belt Clip, (1) Carrying Bag |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Details:
This Bosch hammer drill is engineered for tough jobs, with next-gen convenience and CORE18V power. The GSB18V-535CB25 18V EC Brushless Connected-Ready Compact Tough 1/2 In. hammer drill kit features a tool with Bluetooth® connectivity (which connects with an optional Connectivity Tool Module), linking the free Bosch Toolbox app on any connected device for enhanced tool control and feedback. The kit includes two next-gen CORE18V 4.0 Ah compact batteries. Each keeps the power and runtime, while losing the weight, with 21700 cell technology. The CORE18V matches the power of the original two-layer 4.0 Ah battery with half the number of cells. It features the CoolPack 2.0 heat-management system. This hammer drill’s powerful EC Brushless motor delivers 535 In.-Lbs. of torque and 0-28,500 bpm. It has variable speed settings; one for high-speed (0-1,900 rpm) and one for high power (0-600 rpm). The cordless drill has KickBack Control to reduce the risk from sudden rotational torque reaction, a 20+1 precision clutch; an all-metal chuck that provides durability and a longer belt clip.
Benefits:
- Next-gen hammer drill power and control – engineered with Bluetooth® connectivity (when the optional Connectivity Tool Module is installed), KickBack Control, 20+1 precision clutch and EC Brushless motor
- Bluetooth® connectivity – connects to optional Connectivity Tool Module to customize tool settings on a connected device
- Compact CORE18V 4.0 Ah Li-ion battery – engineered to provide next-gen power and runtime, while losing the weight, for optimized performance-to-weight ratio
- KickBack Control – reduces the risk from sudden rotational torque reaction in a bind-up scenario
- EC Brushless motor – efficient motor that delivers 535 In.-Lbs. of torque with a long lifetime
- Precision clutch with 20+1 settings – provides driving accuracy for reduced fastener damage
- High-power cells – uses enhanced 21700 cell technology, combined with advanced battery design for greater efficiency, to produce longer runtime
- Cutting-edge cell design – engineered to improve performance
- Bosch-exclusive CoolPack 2.0 technology – cooling the battery 20% faster than previous 4.0 Ah double-layer versions
- Upgraded all-metal chuck – for more durability, along with first-rate bit retention
- Drill-area LED with feedback – illuminates dark zones; provides tool-status change feedback
- Works with Bosch PRO+GUARD™ dust solutions – an end-to-end dust-collection system that helps users move toward OSHA Silica dust compliance
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Specifications | |
|---|---|
| Battery Chemistry | Lithium Ion |
| Battery Voltage (V) | 18 |
| Battery/Charger | Included |
| Chuck Capacity | 1/2" Keyless Chuck |
| Chuck Design | Keyless |
| Chuck Size | 1/2 in |
| Height | 7.9" |
| Length | 7.25" |
| No Load BPM | 28,500 |
| No Load RPM | 0-600 / 0-1,900 |
| Torque (in. lbs.) | 535 |
| Weight | 2.7lb |
| Width | 3.0" |
| Works With | Bosch Bluetooth® Connectivity Module GCY42 (See tool manual for its connectivity/app features.) Dust Extraction/Collection Hood HDC200 |
| Includes | (1) GSB18V-535C 18V EC Brushless Connected-Ready Compact Tough 1/2 In. Hammer Drill/Driver, (2) 18V CORE18V Lithium-Ion 4.0 Ah Compact Batteries, (1) 18V Charger, (1) 4x Bit Holder, (4) Bits, (1) Belt Clip, (1) Carrying Bag |
