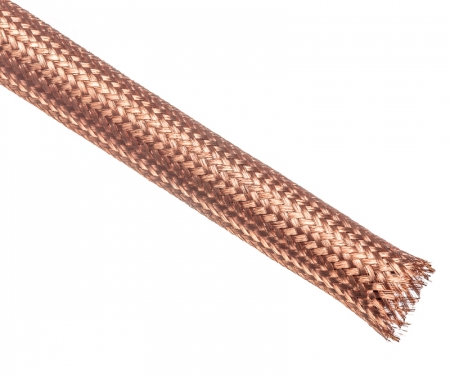

Techflex® Flexo® Bare Copper Braided Cable Sleeving
100% Bare Copper - Ideal For Grounding Applications
0.0 / 5
Braided Bare Copper Wire Sleeving Features
- Material: MBC Copper
- 100% Copper
- Highly Flexible
- Ideal For Grounding Applications
- Excellent Current Transmission
- No Fillers or Coating
- Long-Lasting
- RoHS Compliant
Inside Diameters Are Measured as Round Not Flat

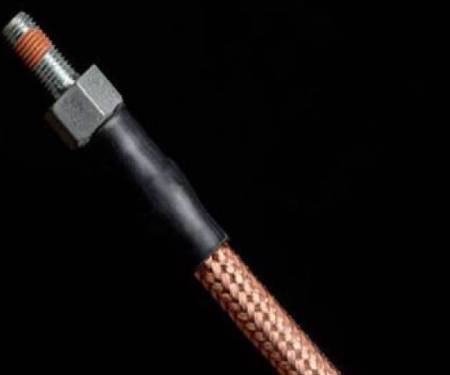

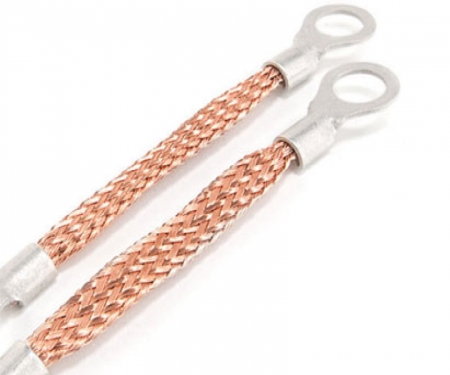

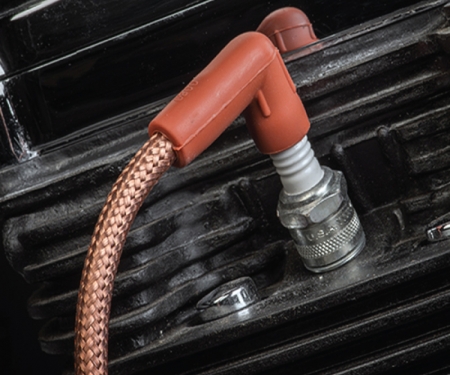

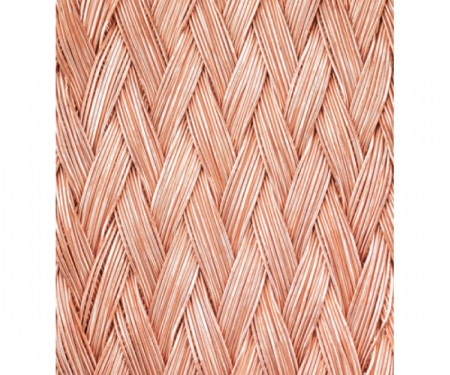

High purity braided copper sleeve is a 100% copper braid for grounding, shielding, and many other unique projects. the copper series of metal braids are pure metal with no fillers or coating to provide many years of continuous use. The copper wire sleeving is suitable for many applications including hoses, wires, and other lines on a wide variety of applications. Braided copper sleeving is intended for high flex, high temperature, and environmentally tough conditions, making it appropriate for use in aerospace applications. Bare Copper braided sleeving will provide high flexibility and excellent current transmission for your demanding uses.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | |||||
| 1/8" 1/4" 3/8" 1/2" | MBC0.13CP MBC0.25CP MBC0.38CP MBC0.50CP | .015" .025" .018" .020" | 1/8" 1/4" 3/8" 1/2" | 1/4" 3/8" 3/4" 1" | 250' 100' 100' 100' | 25' 25' 25' 25' | CP CP CP CP | 0.90 3.00 3.10 4.10 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .005 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .015 - .025 |
| Abrasion Resistance | NA |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | NA |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | NA |
| CVCM | NA |
| WVR | NA |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | NA |
| Operating Temperatures | |
| Minimum Continuous | NA |
| Maximum Continuous (MIL-I-23053) | NA |
| Melt (ASTM D-2117) | 449°F/232°C |
| Other Information | |
| RoHS | Yes |
| UL/CSA | No |
| Halogen Free | Yes
|
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
High purity braided copper sleeve is a 100% copper braid for grounding, shielding, and many other unique projects. the copper series of metal braids are pure metal with no fillers or coating to provide many years of continuous use. The copper wire sleeving is suitable for many applications including hoses, wires, and other lines on a wide variety of applications. Braided copper sleeving is intended for high flex, high temperature, and environmentally tough conditions, making it appropriate for use in aerospace applications. Bare Copper braided sleeving will provide high flexibility and excellent current transmission for your demanding uses.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thickness | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | |||||
| 1/8" 1/4" 3/8" 1/2" | MBC0.13CP MBC0.25CP MBC0.38CP MBC0.50CP | .015" .025" .018" .020" | 1/8" 1/4" 3/8" 1/2" | 1/4" 3/8" 3/4" 1" | 250' 100' 100' 100' | 25' 25' 25' 25' | CP CP CP CP | 0.90 3.00 3.10 4.10 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .005 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .015 - .025 |
| Abrasion Resistance | NA |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | NA |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Ketones | 1 |
| UV Light | 2 |
| Petroleum | 2 |
| Fungus (ASTM G-21) | 2 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | NA |
| CVCM | NA |
| WVR | NA |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | NA |
| Operating Temperatures | |
| Minimum Continuous | NA |
| Maximum Continuous (MIL-I-23053) | NA |
| Melt (ASTM D-2117) | 449°F/232°C |
| Other Information | |
| RoHS | Yes |
| UL/CSA | No |
| Halogen Free | Yes
|
