Ultratech® Adjustable Frame Drain Guards

The Steel Framework Adjusts To Fit Different Drain Sizes.

0.0 / 5

(0)

Ultratech® Adjustable Frame Drain Guard Features

  • Adjustable catch basin insert quickly re-sizes to fit almost any storm drain – no trimming of excess fabric required.

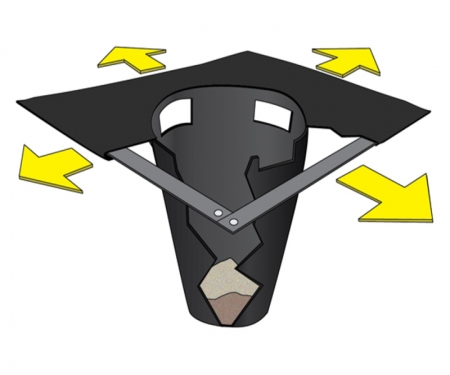

  • Steel frame adjusts and keeps Drain Guard in place – preventing it from falling into the basin even when the grate is lifted.

  • Heavy-duty hook-and-loop fasteners around the perimeter of the Drain Guard skirt keeps it secured to the frame.

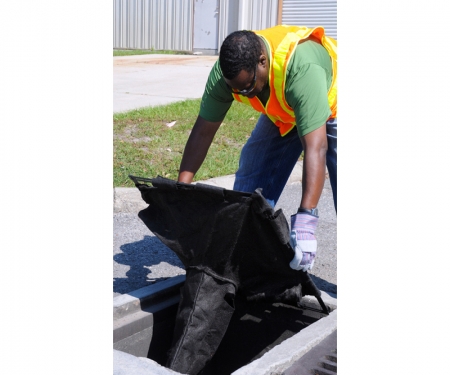

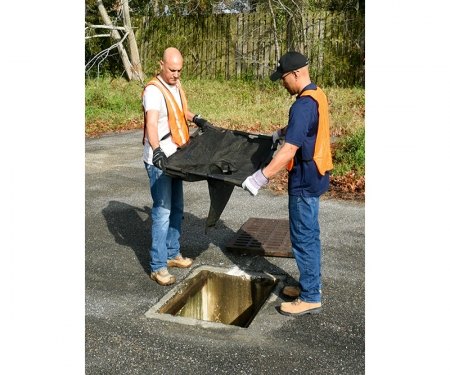

  • Quick and clean installation – no measuring or trimming required.

  • The steel frame can be reused - Replacement Filter Fabric available and is quickly and easily installed.

  • Compliance: Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.

ultra Drain Guard stays in place even with grate removed There are many models of Ultra-Drain Guard. And most of them are held in place by the weight of the storm drain grating. The one exception to this is the Adjustable Model. Instead, this unit relies on a steel framework to keep it from falling into the basin. The steel framework adjusts to fit different drain sizes. What is the advantage of this type of installation? For one thing, the Drain Guard remains in place even when the grating is lifted. With other models, crews need the foresight to secure the Drain Guard before lifting the grate. The other advantage is aesthetics. There is no excess material to trim or that may stick out above the grating. It's a clean and simple installation.

See More Technical Specifications


Ultratech® Adjustable Frame Drain Guards stay in place even with a grate removed.

There are many models of Ultra-Drain Guard and most of them are held in place by the weight of the storm drain grating. The one exception to this is the Adjustable Model. Instead, this unit relies on a steel framework to keep it from falling into the basin. The steel framework adjusts to fit different drain sizes. What is the advantage of this type of installation? For one thing, the Drain Guard remains in place even when the grating is lifted. With other models, crews need the foresight to secure the Drain Guard before lifting the grate. The other advantage is aesthetics. There is no excess material to trim or that may stick out above the grating. It's a clean and simple installation.

  • Adjustable catch basin insert quickly re-sizes to fit almost any storm drain – no trimming of excess fabric required.

  • Steel frame adjusts and keeps Drain Guard in place – preventing it from falling into the basin even when the grate is lifted.

  • Heavy-duty hook-and-loop fasteners around the perimeter of the Drain Guard skirt keeps it secured to the frame.

  • Quick and clean installation – no measuring or trimming required.

  • The steel frame can be reused - Replacement Filter Fabric available and is quickly and easily installed.

  • Compliance: Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Part # Quantity Dimensions in. (mm) Containment Capacity gal. (L) Weight Capacity UDL (lbs)
8930 1 16L x 20W x 18H (406 x 508 x 458) to
26L x 32W x 18H (660 x 813 x 458)
Up to 0.5 gal (1.9 L) of Oil Up to 40 lbs. (18 kg) of Sediment
8931 10 16L x 20W x 18H (406 x 508 x 458) to
26L x 32W x 18H (660 x 813 x 458)
Up to 0.5 gal (1.9 L) of Oil Up to 40 lbs. (18 kg) of Sediment



Instructions and Maintenance

Specifications Sheet

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


How much water can the Drain Guard handle?

When new, the Drain Guard has a flow rate of 90 gpm/ft2. However, the unit has been designed with overflow ports.  These allow the Drain Guard a flow rate of 770 gpm which will prevent any flooding or ponding during extreme rain events.  Any water that goes through the overflow is essentially untreated.

How long will a Drain Guard last?

It is difficult to arrive at a definitive answer for this as there are several factors that will determine how long an Ultra-Drain Guard will last after it has been installed.  The amount of rainfall and the amount and type of pollutants that the unit will be exposed to, among other things will determine the Drain Guard's life expectancy.  For this reason, we recommend inspecting the unit after each significant rain event to better understand how much each Drain Guard will capture.  We have had test units in Seattle as well as Florida that were still working effectively after more than a year after installation.

Can the Ultra-Drain Guard be reused?

Yes, under most circumstances.  If the Drain Guard is filled with sand, silt, and sediment, it can be removed from the drain, emptied out and replaced.  Trash and debris can also be removed.  The exception is if the Drain Guard is saturated with oil, gas or other hydrocarbons.  Because these pollutants can be flushed out of the Drain Guard by a major rain event, it is recommended that the units be replaced instead of reused.

Can I replace just the filter fabric without buying another frame?

Yes, replacement fabric is available in a 10-pack (Part# 8932).  Simply remove the fabric by pulling apart the hook and loop fasteners around the top perimeter of the Drain Guard and replace it with a new one.

Why would I use the Ultra-Drain Guard, Adjustable Frame Model instead of one of your other Drain Guard models?

The unique feature of the Adjustable Frame Model is, of course, the adjustable frame. This allows the unit to stay in place whenever the catch basin's grate is lifted or removed.  Our other Drain Guards rely on the grate to pinch the fabric and hold the unit in place.

Is hardware included?

If you purchase either Part# 8930 (1-pack) or Part# 8931 (10-pack), you will receive everything you need including the hardware (frame).  No other parts, pieces or components will be necessary to install/use your Drain Guard.

What other products could be used instead of the Ultra-Drain Guard, Adjustable Frame Model?

The Oil & Sediment and Oil & Sediment Plus Model Ultra-Drain Guards would be good options to the Adjustable Frame Model.  If the added benefit of keeping the unit in place when the grate is lifted is significant to you, the Drain Guard Retainers can be used with any model to provide similar results.

Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

Ultratech® Adjustable Frame Drain Guards stay in place even with a grate removed.

There are many models of Ultra-Drain Guard and most of them are held in place by the weight of the storm drain grating. The one exception to this is the Adjustable Model. Instead, this unit relies on a steel framework to keep it from falling into the basin. The steel framework adjusts to fit different drain sizes. What is the advantage of this type of installation? For one thing, the Drain Guard remains in place even when the grating is lifted. With other models, crews need the foresight to secure the Drain Guard before lifting the grate. The other advantage is aesthetics. There is no excess material to trim or that may stick out above the grating. It's a clean and simple installation.

  • Adjustable catch basin insert quickly re-sizes to fit almost any storm drain – no trimming of excess fabric required.

  • Steel frame adjusts and keeps Drain Guard in place – preventing it from falling into the basin even when the grate is lifted.

  • Heavy-duty hook-and-loop fasteners around the perimeter of the Drain Guard skirt keeps it secured to the frame.

  • Quick and clean installation – no measuring or trimming required.

  • The steel frame can be reused - Replacement Filter Fabric available and is quickly and easily installed.

  • Compliance: Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Part # Quantity Dimensions in. (mm) Containment Capacity gal. (L) Weight Capacity UDL (lbs)
8930 1 16L x 20W x 18H (406 x 508 x 458) to
26L x 32W x 18H (660 x 813 x 458)
Up to 0.5 gal (1.9 L) of Oil Up to 40 lbs. (18 kg) of Sediment
8931 10 16L x 20W x 18H (406 x 508 x 458) to
26L x 32W x 18H (660 x 813 x 458)
Up to 0.5 gal (1.9 L) of Oil Up to 40 lbs. (18 kg) of Sediment



Instructions and Maintenance

Specifications Sheet

Product Manuals

Frequently Asked Questions

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


How much water can the Drain Guard handle?

When new, the Drain Guard has a flow rate of 90 gpm/ft2. However, the unit has been designed with overflow ports.  These allow the Drain Guard a flow rate of 770 gpm which will prevent any flooding or ponding during extreme rain events.  Any water that goes through the overflow is essentially untreated.

How long will a Drain Guard last?

It is difficult to arrive at a definitive answer for this as there are several factors that will determine how long an Ultra-Drain Guard will last after it has been installed.  The amount of rainfall and the amount and type of pollutants that the unit will be exposed to, among other things will determine the Drain Guard's life expectancy.  For this reason, we recommend inspecting the unit after each significant rain event to better understand how much each Drain Guard will capture.  We have had test units in Seattle as well as Florida that were still working effectively after more than a year after installation.

Can the Ultra-Drain Guard be reused?

Yes, under most circumstances.  If the Drain Guard is filled with sand, silt, and sediment, it can be removed from the drain, emptied out and replaced.  Trash and debris can also be removed.  The exception is if the Drain Guard is saturated with oil, gas or other hydrocarbons.  Because these pollutants can be flushed out of the Drain Guard by a major rain event, it is recommended that the units be replaced instead of reused.

Can I replace just the filter fabric without buying another frame?

Yes, replacement fabric is available in a 10-pack (Part# 8932).  Simply remove the fabric by pulling apart the hook and loop fasteners around the top perimeter of the Drain Guard and replace it with a new one.

Why would I use the Ultra-Drain Guard, Adjustable Frame Model instead of one of your other Drain Guard models?

The unique feature of the Adjustable Frame Model is, of course, the adjustable frame. This allows the unit to stay in place whenever the catch basin's grate is lifted or removed.  Our other Drain Guards rely on the grate to pinch the fabric and hold the unit in place.

Is hardware included?

If you purchase either Part# 8930 (1-pack) or Part# 8931 (10-pack), you will receive everything you need including the hardware (frame).  No other parts, pieces or components will be necessary to install/use your Drain Guard.

What other products could be used instead of the Ultra-Drain Guard, Adjustable Frame Model?

The Oil & Sediment and Oil & Sediment Plus Model Ultra-Drain Guards would be good options to the Adjustable Frame Model.  If the added benefit of keeping the unit in place when the grate is lifted is significant to you, the Drain Guard Retainers can be used with any model to provide similar results.
