Techflex® Flexglass Electrical Insulation Sleeving - Acrylic Coated
Grade A (7,000 V) - & Grade C (2,500 V) - Mil-I-3190
0.0 / 5
Acrylic Coated Flexglass Sleeving Features
- Grade A (7,000 V) Mil-I-3190
- Grade C (2,500 V)Mil-I-3190
- Rated to 311°F Class F (155°C)
- Cut & Abrasion Resistant
- Resists Acids and Most Organic Solvents
- Operating Temperature Range: -94°F to 311°F (-70°C to 155°C)
Inside Diameters Are Measured as Round Not Flat

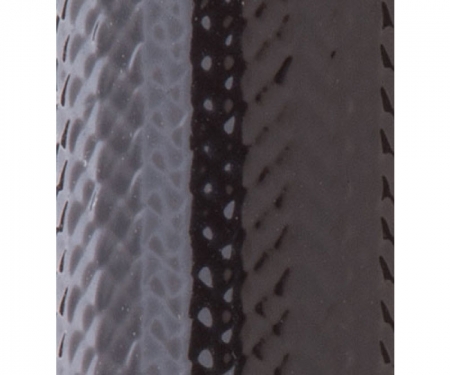

ACRYLIC FLEX GLASS (AG) sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a dielectric acrylic resin. This durable sleeving will withstand mechanical stress and holds it’s dielectric strength on all bends.
Acrylic Flex Glass is used in applications such as relays, radio circuits, transformers, and lead/crossover protection on motors. Highly resistant to acids and solvents, and will withstand tough assembly handling.
AG sleeving is recommended for thermal requirements from -13°F to 311°F ranges.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Size | Diam. | Part # | Grade | Part # | Grade | Standard Spool Put-Ups | Color | |
| Bulk | Shop | |||||||
3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1" | 0.375" 0.438" 0.500" 0.625" 0.750" 0.875" 1.000" | AGA0.38 AGA0.44 AGA0.50 AGA0.63 AGA0.75 AGA0.88 AGA1.00 | A A A A A A A | AGC0.38 AGC0.44 AGC0.50 AGC0.63 AGC0.75 AGC0.88 AGC1.00 | C C C C C C C | 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 50' | 4 4 4 NT NT NT NT |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
ACRYLIC FLEX GLASS (AG) sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a dielectric acrylic resin. This durable sleeving will withstand mechanical stress and holds it’s dielectric strength on all bends.
Acrylic Flex Glass is used in applications such as relays, radio circuits, transformers, and lead/crossover protection on motors. Highly resistant to acids and solvents, and will withstand tough assembly handling.
AG sleeving is recommended for thermal requirements from -13°F to 311°F ranges.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Size | Diam. | Part # | Grade | Part # | Grade | Standard Spool Put-Ups | Color | |
| Bulk | Shop | |||||||
3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1" | 0.375" 0.438" 0.500" 0.625" 0.750" 0.875" 1.000" | AGA0.38 AGA0.44 AGA0.50 AGA0.63 AGA0.75 AGA0.88 AGA1.00 | A A A A A A A | AGC0.38 AGC0.44 AGC0.50 AGC0.63 AGC0.75 AGC0.88 AGC1.00 | C C C C C C C | 100' 100' 100' 100' 100' 100' 100' | 50' 50' 50' 50' 50' 50' 50' | 4 4 4 NT NT NT NT |
