Triplett® 8066 - Touchscreen CCTV Camera Tester

4 Inch 480p Touch Screen For Maintenance of Most Camera Types

0.0 / 5

(0)

Triplett® 8066 - Touchscreen CCTV Camera Tester Features

  • Works with IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as for testing 4K H.264 /H.265
  • Network test including Ping/IP Scan/Port Flash/Link Monitor
  • Supports Hikvision/Dahua/ACTi and more than 30 protocols
  • Compact and lightweight wrist strap design

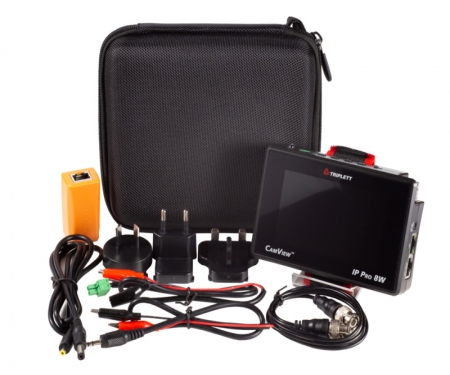

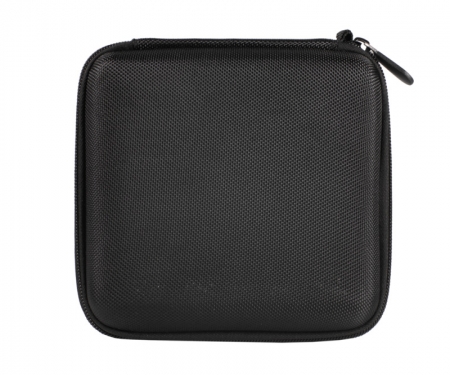

The CamView IP Pro-8W has a 4 inch IPS touch screen monitor designed for the maintenance and installation of IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as for testing 4K H.264 /H.265. The 800 x 480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports ONVIF PTZ and analog PTZ control and is compatible with more than 30 protocols. The combination of touch screen and key buttons make the CamView IP Pro-8W very user-friendly. Other functions include providing 24W PoE power to your camera, PING and IP address searching, LED Flashlight, DC 12V 3A power output and much more. Its portability, user-friendly design and many other functions make the IP tester an essential tool for all installers and technicians. Comes complete with Li-ion battery, AC adapter/charger, BNC/BNC cable, RS485 cable, audio cable, 12V camera power cable, wrist strap, and carrying case.

Click for More Details or Description

Product Details

IPC Protocol ONVIF, RTSP, RTP
Network Test 10/100/100M detect; IP address scan, ping, packet test; DHCP server; trace route; link monitor
Rapid IP Discovery Discover the IP addresses in the connected device’s network segment
WiFI Display upload/download connection speeds; create a WiFi hotspot
IP Camera Test Display image from the 4K H.265 camera by mainstream
Data Monitor Capture and analyze the command data from controlling device; can also send hexadecimal
Video Test NTSC/PAL/HD-CVI 3.0/AHD 3.0/HD-TVI 3.0
Audio Test 1 channel audio signal input
PTZ Control Test Support RS485; Compatible with more than 30 protocols
Lens Simulation Simulate different lens display areas: 2.8, 3.6, 4, 6, 8, 12, 16, 25mm
Poe Test power 48V power output; Max power 24W
12V Power Output 12V/3A output interface
Snapshot/Video Capture and record images and live video with playback
Memory Internal: 3.2GB; External: optional microSD 32GB max
Display 4” IPS touchscreen , 800 x 480
Power Lithium-ion battery; 8-hour work time
Dimensions 5 x 3.3 x 1.3” (126 x 83 x 33mm)
