Wall Mount Patch Panel Brackets - Kendall Howard
Make Mounting Patch Panels & Shallow Equipment Simple & Easy
0.0 / 5
Kendall Howard Patch Panel Bracket Features
- 180 Degree Swing-Out
- 6" Maximum Depth
- 19" EIA Compliant
- Requires 10-32 Rack Screws
- Made In The USA
- Limited Lifetime Warranty
The Kendall Howard Patch Panel Bracket makes mounting patch panels and/or other shallow equipment simple and easy. The unique hinged design allows installed equipment to swing to the left or right 180 degrees for convenient access to the back. These hinged wall mount systems are a fantastic alternative to larger, more expensive solutions that end up wasting space.
Hardware Not Included With Purchase Of *1U Bracket*
Product Details
| Low Cost Wall Mount Solution | The hinged design delivers the functionality of a swing-out rack without the added cost. Perfect for small business or home office applications. |
|---|---|
| Numerous Cable Tie Points | The patch panel wall mount brackets are packed with built-in cable tie downs and access holes, ensuring your installation is neat, organized, and ready for action. |
| Easy to Use | Once the bracket is mounted to the wall, simply mount the device to the hinged side of the bracket, swing it open, and terminate the cables. When completed, close the bracket and secure to the other side of the bracket. |
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
1U Patch Panel Bracket
| Part Number | 1916-3-200-01 |
| Width | 19.25" |
| Depth | 6" |
| Height | 1.75" |
| Weight | 1.60 lbs. |
| Shipping Dimensions | 20" L x 3" W x 7" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
2U Patch Panel Bracket
| Part Number | 1916-3-200-02 |
| Width | 19.25" |
| Depth | 6" |
| Height | 3.5" |
| Weight | 3.00 lbs. |
| Shipping Dimensions | 20" L x 4" W x 7" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
4U Patch Panel Bracket
| Part Number | 1916-3-200-04 |
| Width | 19.25" |
| Depth | 6" |
| Height | 7" |
| Weight | 5.00 lbs. |
| Shipping Dimensions | 20" L x 8" W x 7" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |

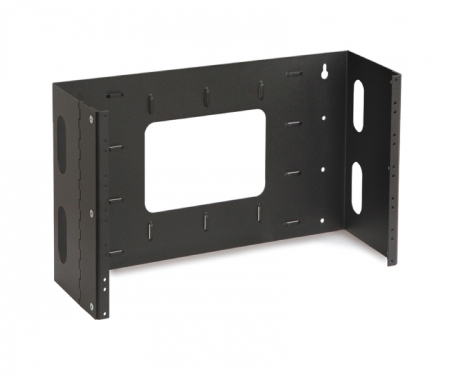

6U Patch Panel Bracket
| Part Number | 1916-3-200-06 |
| Width | 19.25" |
| Depth | 6" |
| Height | 10.5" |
| Weight | 7.00 lbs. |
| Shipping Dimensions | 20" L x 12" W x 7" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
