Millepede Reusable Cable Ties

Plenum Rated & Standard - 12" or 22" Lengths. 3 Colors

0.0 / 5

(0)

Millepede Releasable Cable Ties Features

  • Low Smoke Production
  • Each Mille-Tie Can Be Cut Into Multiple ties
  • Can Be Used For Multiple Loops To Secure Multiple Cables Separately
  • Reduces Cable pinching / compression In Secured Cables
  • Ideal For Fiber Optic & CAT6 Cables
  • Only *Red* Millepede Ties Are Plenum Rated
See More Technical Specifications


Mille-Tie cable ties are an extremely versatile and reusable cable tie. Featuring the "Intelligent Grip System", these ties reduce cable pinching when secured. Because of their sectional 'millepede like' design, each Mille-Tie can either be cut into more ties or formed into multiple loops to secure multiple cables separately.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

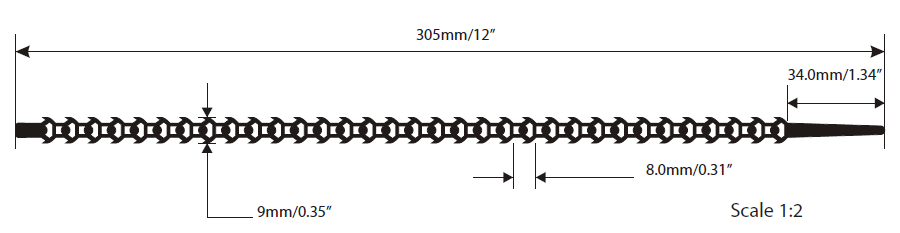

12" Mille-Tie

Physical Properties:

Nominal Moulded Length: 305mm (12”)
Width: 9.0mm (0.35”)
Thickness: 1.3mm (0.05”)
Apertures: 33 (1 per 8mm (0.35”) apx.)
Maximum Bundle Size (basic strip): > 75mm (3”) diameter
Maximum Bundle Size (when stretched before use): > 110mm (4.5”) diameter
Minimum Bundle Size: < 5mm (0.2”) diameter
Uses Per Strip @ 10mm (0.4”) Diameter: 6 approx
Standard Colours Available:Red (Plenum), Black (UV), Uncoloured/Natural (LSOH), Green, Grey


Material Properties:

Material: Thermoplastic Polyurethane Elastomer
Density: 1220Kg/m3
Tensile and Tear Strength: High
Abrasion Resistance: Excellent
Elasticity and Resilience: High
Resistance to Fuels and Oils: Excellent


Mechanical Properties:

Flexural Modulus: 124.1MPa (180,000 PSI)
Taper Abrasion H-18 Wheel, 1000g (1.1lb) Load: 50mg (1/560 Oz) Loss [1000 cycles]
Material Tensile Strength: 4.14MPa (6,000 PSI)
Maximum Mille-Tie Loop Strength: >10kg (22lb) [Using a secure latch]


Thermal Properties:

Low Temperature Brittle Point: Deflection Temperature Under Load: 59°C (139°F) [4.55kPa (66 PSI)]
Recommended Service Temperature Range [no load]: -20°C to +60°C (-4°F to 140°F)
Short Temp Peak Temperature Range [no load]: -30°C to +80°C (-22°F to 176°F)
Vicat Softening Temperature: Rate A, 168°C (334°F)
Flammability UL94 Flame Class: 1.5mm (0.06”) Thickness, Class HB


Flame & UV Properties:

UV Properties [Black or UV resistant coloured]:Very Good
UV Properties [Natural coloured]:Some loss of physical properties & yellowing
may occur under conditions of prolonged exposure.


Low Smoke Zero Halogen Version:

Low Smoke: BS 6853 : 1999 Apx D Clause D 8.3 (Smoke)
Zero Halogen: IEC 754-1: 1994



Air Handling Spaces (PLENUM) Version:

“For Positioning Only, Indoors only, Suitable for use in Air Handling Spaces in accordance with Section 300-22 (C) and (D) of the National Electric Code, and Rules 12-010 (3), (4), and (5), and 12-020 of the Canadian Electric Code, Part 1, File E230261”

USA Meets: Section 300.22 (C ) and (D ) of the National Electric Code
Canada Meets: Rules 12-010 (3), (4) and (5) , and 12-020, Part 1, Canadian Electrical Code



Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
