Metal Detectable Zip Ties
Nylon Impregnated Iron Cable Ties - 4" To 14" Lengths. FDA Approved
Metal Detectable Cable Ties Features
- FDA Compliant For Food And Pharmaceutical Industries
- Nylon 6-6 Impregnated With Magnetite (Approved Material for Contact with food)
- Teal Color For Easy Visibility
- One-Piece Construction, For Enhanced Durability
- Operating Temperature: -40°C to + 85°C (-40°F to + 185°F)
- Rated For Indoor Use
- Flammability of raw material: UL 94 - V2
- Humidity absorption: 2,7% - 2,8% (23°C -50%RH)
- Min Installation Temperature: 0°C (32°F)
- Max sustainable temperature for short time: +110°C (230°F)
- Good resistance to bases, oils, greases, oil derivatives, chloride solvents. Limited resistance to acids. Not resistant to phenols.
- FDA 21 CRF 177.1500 (b) Compliance
- REACH, ROHS, PAHS Compliance.
These metal detectable zip ties can be used very safely and efficiently in a wide range of indoor as well as outdoor applications. Kable Kontrol metal detector cable ties comply with the food, beverage, and pharmaceutical safety standards as set by the FDA. User-friendly Smooth edges for safe operation and curved
*For Use With Metal Detectors*
Metal detectable cable ties using Nylon material blended with iron provides magnetic properties throughout. It can be identified by any type of metal detection equipment. Weather-resistant and more cost-effective than stainless steel ties,
Very reliable and consistent performance due to its one-piece construction. Metal detectable tie wraps are available in sizes from 4” to 14” long with tie tensile ranging from 18 lb. to 120 lb.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

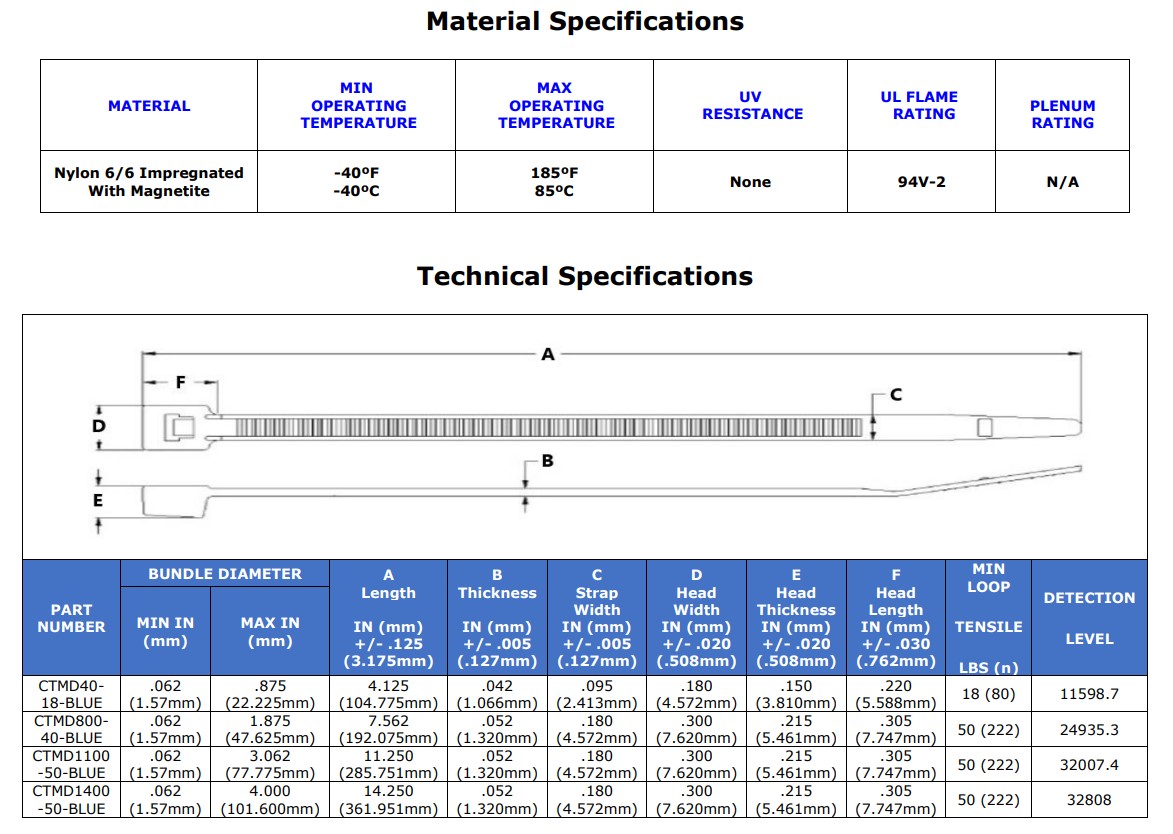

|PART NUMBER||BUNDLE DIAMETER|| |
IN (mm) +/- .125
IN (mm) +/- .005
IN (mm) +/- .005
IN (mm) +/- .020
IN (mm) +/- .020
IN (mm) +/- .030
ANSI/UL 94 Mtl
|MIN IN (mm)||MAX IN (mm)|
|CTMD40-18||.062 (1.57mm)||.875 (22.225mm)|| |
|.042 (1.066mm)||.095 (2.413mm)||.180 (4.572mm)||.150 (3.810mm)||.220 (5.588mm)||18 (80)||V-2||N/A||11598.7|
|CTMD700-50||.062 (1.57mm)||2.375 (60.325mm)||8.875 (225.425mm)||.049 (1.244mm)||.140 (3.556mm)||.240 (6.096mm)||.175 (4.445mm)||.250 (6.350mm)||40 (178)||V-2||N/A||29628.5|
|CTMD800-40||.062 (1.57mm)||1.875 (47.625mm)||7.562 (192.075mm)||.052 (1.320mm)||.180 (4.572mm)||.300 (7.620mm)||.215 (5.461mm)||.305 (7.747mm)||50 (222)||V-2||N/A||24935.3|
|CTMD1100-50||.062 (1.57mm)||3.062 (77.775mm)||11.250 (285.751mm)||.052 (1.320mm)||.180 (4.572mm)||.300 (7.620mm)||.215 (5.461mm)||.305 (7.747mm)||50 (222)||V-2||N/A||32007.4|
|CTMD1400-50||.062 (1.57mm)||4.000 (101.600mm)||14.250 (361.951mm)||.052 (1.320mm)||.180 (4.572mm)||.300 (7.620mm)||.215 (5.461mm)||.305 (7.747mm)||50 (222)||V-2||N/A||32808|
|CTMD1400-120||.187 (4.75mm)||4.06 (103.1mm)||15.093 (383.362mm)||.076 (1.930mm)||.300 (7.620mm)||.490 (12.446mm)||.300 (7.620mm)||.500 (12.700mm)||120 (534)||V-2||N/A||32778|
