Rack Mount Keyboard Trays
2-Post & 4-Post Mounting Options
0.0 / 5
Rack Mount Keyboard Trays Features
- Slim 1U Design
- Lockable
- 2-post Mounting
- 19" EIA Compliant
- Made in The USA
- 1-Year Limited Warranty
Product Details
Commercial, military, aerospace, corporate, and small office applications alike, the Kendall Howard Rackmount Keyboard Tray will complement them all. This heavy duty design is one of the most robust pull-out keyboard trays on the market. Don't be fooled by its sleek, low profile appearance. This keyboard tray was built to last. The keyboard and touchpad mouse simply slide out when needed to provide quick and easy access to your network.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

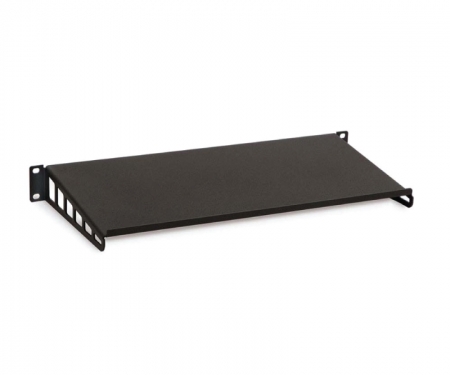

1U Stationary Keyboard Tray
| Part Number | 1910-1-001-01 |
| Width | 19" |
| Depth | 8" |
| Height | 1.72" |
| Weight | 4.00 lbs. |
| Shipping Dimensions | 21" L x 10" W x 3" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Black Powder Coated Finish |
1U Rackmount 2-Post Keyboard Tray
| Part Number | 1910-3-002-01 |
| Width | 18.97" |
| Depth | 16.50`" |
| Height | 1.72" |
| Weight | 16.50 lbs. |
| Shipping Dimensions | 22" L x 21" W x 6" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Rack Mount Panel: Black Powder Coated Finish |
| Key Travel Distance | 4.0 ± 0.5mm |
| Key Travel to Peak | 1.5 ± 0.5mm |
| Key Peak Force | 50 ± 10gm |
| Operating Temperature | 32° F to 131° F |
| Storage Temperature | -4° F to 140° F |
| Operating Humidity | 10% to 95% RH |
| Switch Life | 10 million life cycles |
| Electronic Data | +5VDC ± 5%@300mA |
| USB Cable Length | 6ft (72 in) |
1U Rackmount 4-Post Keyboard Tray
| Part Number | 1910-3-003-01 |
| Width | 18.97" |
| Depth | Adjustable 20" - 36.61" |
| Height | 1.72" |
| Weight | 17.60 lbs. |
| Shipping Dimensions | 22" L x 21" W x 6" H |
| Material(s) | CRS (Cold Rolled Steel) |
| Color/Finish | Rack Mount Panel: Black Powder Coated Finish |
| Key Travel Distance | 4.0 ± 0.5mm |
| Key Travel to Peak | 1.5 ± 0.5mm |
| Key Peak Force | 50 ± 10gm |
| Operating Temperature | 32° F to 131° F |
| Storage Temperature | -4° F to 140° F |
| Operating Humidity | 10% to 95% RH |
| Switch Life | 10 million life cycles |
| Electronic Data | +5VDC ± 5%@300mA |
| USB Cable Length | 6ft (72 in) |
