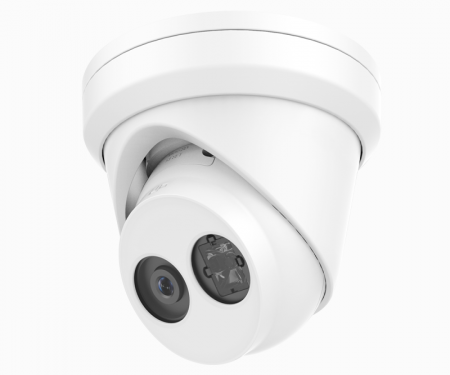

Platinum Turret Network IP Camera 6MP and 4k

Includes Camera Resolutions 3072x2048@20fps and 3840x2160@20fps

0.0 / 5

(0)

Platinum Turret Network IP Camera 6MP and 4k

  • 2.8mm Fixed Lens
  • Matrix IR 2.0, IR Range up to 100 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120dB
  • IP67
  • MicroSD Slot up to 128GB
  • DC 12V, PoE
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 6MP
Camera Technology IP / Network
Camera Housing Turret
Featured Product No
Specifications
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.265/ H.264
Sub stream: H.265/H.264/ MJPEG
Third stream: H.265/ H.264
H.265 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual Stream Support
Max. Resolution 3072 × 2048
Main Stream 60Hz: 20fps (2560×1920), 30fps (2048x1536), 30fps(1920×1080), 30fps(1280×720)
50Hz: 20fps (2560×1920), 25fps (2048x1536), 25fps(1920×1080), 25fps(1280×720)
Sub Stream 60Hz: 30fps (352×240, 640x480) 50Hz: 25fps (352×288, 640x480)
Others Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Face Detection Support
Behavioral Analysis Line Crossing Detection, Intrusion Detection
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity 		 -22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.5A, max. 6W PoE (802.3af, 36V to 57V), 0.3A to 0.2A, max. 7.5W
IR Range Up to 100ft
Weather Proof Ratings IP67
Dimensions 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm)
Weight 1.4 lb. (620 g)
Camera Series Platinum Series
Camera Resolution 4K
Camera Technology IP / Network
Camera Housing Turret
Featured Product No
Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.265/ H.264
Sub stream: H.265/H.264/ MJPEG
Third stream: H.265/ H.264
H.265 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual Stream Support
Max. Resolution 3840 × 2160
Main Stream 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 60Hz: 30fps (640 × 360, 352 × 240) / 50Hz: 25fps (640 × 360, 352 × 288)
Third Stream 60Hz: 30fps (1280 ×720) / 50Hz: 25fps (1280 ×720)
Others Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity 		 -22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 25%, PoE (802.3af)
Power Consumption Max. 5.5W (Max. 7.5W with ICR on)
IR Range Up to 100ft
Weather Proof Ratings IP67
Dimensions 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm)
Weight 1.4 lb. (620 g)

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.

Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

WARNING:
Products may contain materials listed under Prop 65 Enforcement Act. Click Here to read more.

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 6MP
Camera Technology IP / Network
Camera Housing Turret
Featured Product No
Specifications
Camera
Image Sensor 1/2.9" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.265/ H.264
Sub stream: H.265/H.264/ MJPEG
Third stream: H.265/ H.264
H.265 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual Stream Support
Max. Resolution 3072 × 2048
Main Stream 60Hz: 20fps (2560×1920), 30fps (2048x1536), 30fps(1920×1080), 30fps(1280×720)
50Hz: 20fps (2560×1920), 25fps (2048x1536), 25fps(1920×1080), 25fps(1280×720)
Sub Stream 60Hz: 30fps (352×240, 640x480) 50Hz: 25fps (352×288, 640x480)
Others Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Face Detection Support
Behavioral Analysis Line Crossing Detection, Intrusion Detection
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity 		 -22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.5A, max. 6W PoE (802.3af, 36V to 57V), 0.3A to 0.2A, max. 7.5W
IR Range Up to 100ft
Weather Proof Ratings IP67
Dimensions 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm)
Weight 1.4 lb. (620 g)
Camera Series Platinum Series
Camera Resolution 4K
Camera Technology IP / Network
Camera Housing Turret
Featured Product No
Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range True WDR 120dB
Angle Adjustment Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.265/ H.264
Sub stream: H.265/H.264/ MJPEG
Third stream: H.265/ H.264
H.265 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual Stream Support
Max. Resolution 3840 × 2160
Main Stream 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 60Hz: 30fps (640 × 360, 352 × 240) / 50Hz: 25fps (640 × 360, 352 × 288)
Third Stream 60Hz: 30fps (1280 ×720) / 50Hz: 25fps (1280 ×720)
Others Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity 		 -22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 25%, PoE (802.3af)
Power Consumption Max. 5.5W (Max. 7.5W with ICR on)
IR Range Up to 100ft
Weather Proof Ratings IP67
Dimensions 5.01″ × 3.78″ (Φ 127.3 × 95.9 mm)
Weight 1.4 lb. (620 g)
