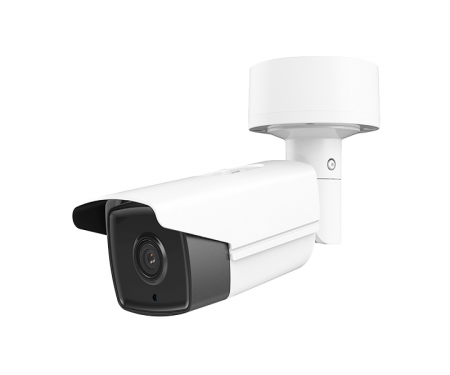

Platinum Matrix IR Bullet Network IP Camera 4.1MP

4.1MP High Definition with resolution up to 2688x1520fps and DWDR

0.0 / 5

(0)

Platinum Matrix IR Bullet Network IP Camera 4.1MP Features

  • 4.1MP High Definition
  • 4mm Fixed Lens
  • H.264 Zip+
  • Up to 2688×1520 Resolution
  • 2 Matrix IR LEDs up to 165ft
  • 3D DNR, DWDR, BLC, VCA
  • IP66
  • DC 12V, PoE
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series
Platinum Series
Camera Resolution 4.1MP
Camera Technology IP / Network
Camera Housing Bullet
Featured Product No
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.02 8Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Slow Shutter Support
Lens 4mm
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range DWDR
Compression Standard
Video Compression H.264 / MJPEG/H.264 Zip+
H.264 Type Type Main Profile
Video Bit Rate 32 Kbps ~ 8 Mbps
Max. Resolution 2688×1520
Frame Rate 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature/
Humidity		 -22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 7.5W
IR Range Approx. 165ft (50 meters)
Weather Proof Ratings IP66
Dimensions 11.8’’ × 3.4’’ × 3.35’’ (299.7 × 86.5 × 85.1mm)
Weight 2.7 lbs (1200g)
