FEP Heat Shrink Tubing 1.3:1
Widely used in the Medical Device Industry | Sold as 4' Ft Sticks
0.0 / 5
FEP Heat Shrink Tubing 1.3:1 Features
- Sold as 4’ Feet Stick
- Shrink Ratio: 1.3:1
- Operating Temperature: -65°C to +200°C
- Shrink Activation Range: 200°C to 230°C
- Material: High-purity FEP (Fluorinated Ethylene Propylene)
- Electrical Insulation: Excellent dielectric properties
- Biocompatibility: Physiologically inert and ISO 10993-1 compliant
- Sterilization Compatibility: Suitable for EtO and GAMMA methods
- Environmental Compliance: RoHS certified
- Standard Color: Transparent
Engineered from high-purity fluorinated ethylene propylene (FEP), this medical-grade heat shrink tubing delivers outstanding clarity, heat resistance, and electrical insulation. Designed to withstand extreme temperatures without deforming or damaging adjacent components, it maintains structural integrity throughout the shrinking process.
Its superior transparency and glossy surface make it ideal for applications requiring visual inspection, such as drug delivery systems, catheters, surgical tools, and microcatheters. Fully compliant with ISO 10993-1 standards and sterilization-ready for EtO and GAMMA methods, this tubing is trusted in the medical device industry for safe, biocompatible insulation and protection.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Standard | Standard Performance |
| Tensile strength (MPa) | ASTM D 2671 | ≥20 |
| Dielectric strength (kV/mm) | IEC 243 | ≥14 |
| Insulation withstand voltage | ASTM D 149 | 4000V, 60s, no breakdown |
| Low temperature flexibility | AMS-DTL-23053 | -65°C, 4h, no cracking |
| Flammability | ASTM D2671 | VW-1 |
| Operation Temperature | -60°C – 200°C | |
| Shrink Temperature | -120°C – 200°C | |

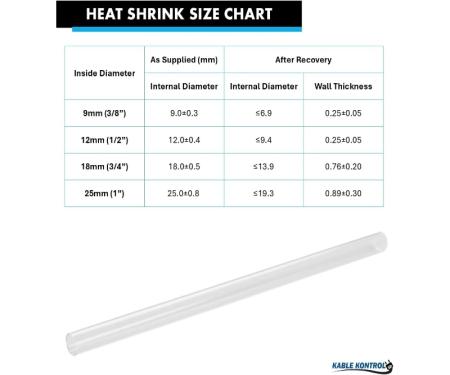

| Inside Diameter | As Supplied (mm) | After Recovery | |
| Internal Diameter | Internal Diameter | Wall Thickness | |
| 9mm (3/8”) | 9.0±0.3 | ≤6.9 | 0.25±0.05 |
| 12mm (1/2”) | 12.0±0.4 | ≤9.4 | 0.25±0.05 |
| 18mm (3/4”) | 18.0±0.5 | ≤13.9 | 0.76±0.20 |
| 25mm (1”) | 25.0±0.8 | ≤19.3 | 0.89±0.30 |
*KABLE KONTROL FEP Heat Shrink Tubing 1.3:1* – 30 Day Return & Refund Policy
If you are not entirely satisfied with your purchase, we're here to help. You have 30 calendar days to return an item from the date you received it. To be eligible for a return, your item must be unused and in the same condition that you received it. Your item must be in the original packaging.
You are required to have an RMA (Returned Merchandise Authorization) assigned by our customer service team. To apply for an RMA you must fill out our RMA request Form linked here.
Undeliverable Shipments:
- In the event that the customers shipping address provided is deemed undeliverable by the shipping carrier, shipping fee's will not be refunded. Instead it is the customers responsibility to provide a deliverable address.
Defective/damaged products or items incorrectly shipped:
- In the highly unlikely event that a defective product or the another item that was not ordered was sent to you, please contact us via phone or email to schedule a return within 14 days of receiving the product. We may require photos for documentation and to authorize a replacement shipment.
- Defective/damaged products or items incorrectly shipped by Cable Ties And More or by our manufacturers, will be re-shipped at our expense. Additionally, return shipping expense of incorrect or defective product will be at our expense. We will provide you with a return shipping label with detailed shipping instructions.
Refunds
Once we receive your item, we will inspect it and we will immediately notify you on the status of your refund after inspecting the item. If your return is approved, we will initiate a refund to your credit card (or original method of payment). You will receive the credit within 48 hours after product condition is verified.
Shipping Fees
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund. For additional information in this section, create your own Return & Refund Policy.
Contact Us
If you have any questions on how to return your item to us, contact us using our Email Form Here… Or call during our business working hours at 1-877-284-7760
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Engineered from high-purity fluorinated ethylene propylene (FEP), this medical-grade heat shrink tubing delivers outstanding clarity, heat resistance, and electrical insulation. Designed to withstand extreme temperatures without deforming or damaging adjacent components, it maintains structural integrity throughout the shrinking process.
Its superior transparency and glossy surface make it ideal for applications requiring visual inspection, such as drug delivery systems, catheters, surgical tools, and microcatheters. Fully compliant with ISO 10993-1 standards and sterilization-ready for EtO and GAMMA methods, this tubing is trusted in the medical device industry for safe, biocompatible insulation and protection.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Standard | Standard Performance |
| Tensile strength (MPa) | ASTM D 2671 | ≥20 |
| Dielectric strength (kV/mm) | IEC 243 | ≥14 |
| Insulation withstand voltage | ASTM D 149 | 4000V, 60s, no breakdown |
| Low temperature flexibility | AMS-DTL-23053 | -65°C, 4h, no cracking |
| Flammability | ASTM D2671 | VW-1 |
| Operation Temperature | -60°C – 200°C | |
| Shrink Temperature | -120°C – 200°C | |
| Inside Diameter | As Supplied (mm) | After Recovery | |
| Internal Diameter | Internal Diameter | Wall Thickness | |
| 9mm (3/8”) | 9.0±0.3 | ≤6.9 | 0.25±0.05 |
| 12mm (1/2”) | 12.0±0.4 | ≤9.4 | 0.25±0.05 |
| 18mm (3/4”) | 18.0±0.5 | ≤13.9 | 0.76±0.20 |
| 25mm (1”) | 25.0±0.8 | ≤19.3 | 0.89±0.30 |
