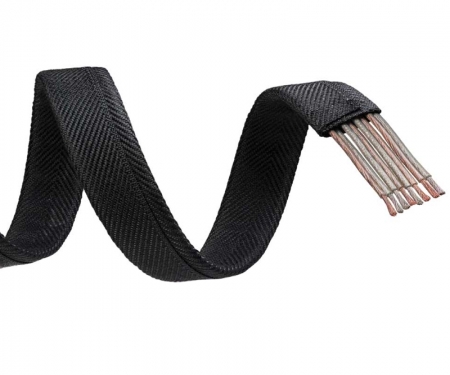

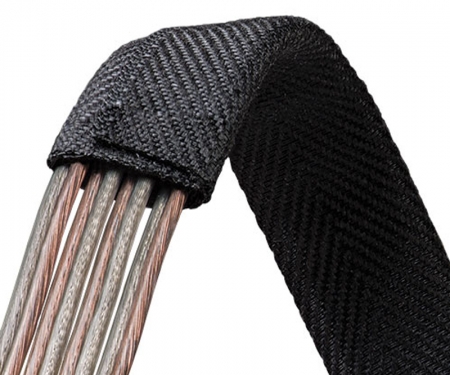

Techflex® F6® Flat Wrap Around Braided Cable Sleeving
Maintains Low Profile Flat Shape - Ideal For Areas With Limited Space
0.0 / 5
F6 Flat Sleeving Features

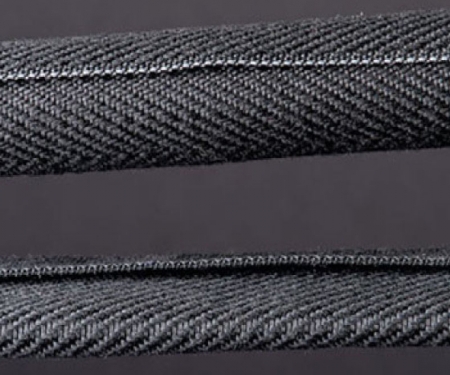

- Low Profile Flat Construction
- Average 0.038" Wall Thickness
- High Mechanical Abrasion Resistance
- Cuts Easily With Hot Knife
- Operating Temps: -95°F to 257°F (-70°C to 125°C)
- Asbestos Free - RoHS Compliant
- Resists Common Chemicals
- Melt Temp: 482°F/250°C
Measurement Are Inside Diameters
Built on the same design as out Flexo F6 and F6 Woven, Flexo F6 Flat is a self-wrappable sleeve used to bundle and protect wire harnesses and cable assemblies in areas where space constraints restrict the use of traditional sleeving. Lightweight and durable, it maintains its flexibility for conforming to irregular shapes and bends during installation. Woven from monofilament and multifilament polyester yarn, Flexo F6 Flat provides noise suppression and a high level of mechanical abrasion protection making it the perfect for use in automotive applications. The low-profile design is great for channeling and protecting wires that run under the carpet or in the headliner of automobiles.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Width | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | |||||
| 1" 1 1/2" 1 3/4" 2 1/4" | F6Z1.00BK F6Z1.50BK F6Z1.75BK F6Z2.25BK | 30mm 40mm 50mm 60mm | 50' 50' 50' 50' | 25' 25' 25' 25' | 1 1 1 1 | 3.26 4.34 5.42 6.51 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .015 |
| Flammability Rating | |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .038 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 6-10 |
| Abrasion Resistance | Med |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1-.2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | ||||
| Aromatic Solvents | 2 | |||
| Alipahtic Solvents | 1 | |||
| Chlorinated Solvents | 3 | |||
| Weak Bases | 1 | |||
| Strong Bases | 2 | |||
| Salt Water (O-S-1926) | 1 | |||
| Hydraulic Fluid (MIL-H-5606) | 1 | |||
| Lubricating Oil (MIL-A-8243) | 1 | |||
| De-Icing Fluid (MIL-A-8243) | 1 | |||
| Strong Acids | 3 | |||
| Strong Oxidants | 2 | |||
| Esters/Ketones | 1 | |||
| UV Light | 1 | |||
| Petroleum | 1 | |||
| Fungus (ASTM G-21) | 1 | |||
| Salts | 1 | |||
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | ||||
| Halogen Free | Yes | |||
| RoHS | Yes | |||
| SVHC | None | |||
| UL/CSA | No | |||
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Built on the same design as out Flexo F6 and F6 Woven, Flexo F6 Flat is a self-wrappable sleeve used to bundle and protect wire harnesses and cable assemblies in areas where space constraints restrict the use of traditional sleeving. Lightweight and durable, it maintains its flexibility for conforming to irregular shapes and bends during installation. Woven from monofilament and multifilament polyester yarn, Flexo F6 Flat provides noise suppression and a high level of mechanical abrasion protection making it the perfect for use in automotive applications. The low-profile design is great for channeling and protecting wires that run under the carpet or in the headliner of automobiles.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Width | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | |
| Bulk Spool | Shop Spool | |||||
| 1" 1 1/2" 1 3/4" 2 1/4" | F6Z1.00BK F6Z1.50BK F6Z1.75BK F6Z2.25BK | 30mm 40mm 50mm 60mm | 50' 50' 50' 50' | 25' 25' 25' 25' | 1 1 1 1 | 3.26 4.34 5.42 6.51 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .015 |
| Flammability Rating | |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .038 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 6-10 |
| Abrasion Resistance | Med |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1-.2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | ||||
| Aromatic Solvents | 2 | |||
| Alipahtic Solvents | 1 | |||
| Chlorinated Solvents | 3 | |||
| Weak Bases | 1 | |||
| Strong Bases | 2 | |||
| Salt Water (O-S-1926) | 1 | |||
| Hydraulic Fluid (MIL-H-5606) | 1 | |||
| Lubricating Oil (MIL-A-8243) | 1 | |||
| De-Icing Fluid (MIL-A-8243) | 1 | |||
| Strong Acids | 3 | |||
| Strong Oxidants | 2 | |||
| Esters/Ketones | 1 | |||
| UV Light | 1 | |||
| Petroleum | 1 | |||
| Fungus (ASTM G-21) | 1 | |||
| Salts | 1 | |||
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | ||||
| Halogen Free | Yes | |||
| RoHS | Yes | |||
| SVHC | None | |||
| UL/CSA | No | |||
