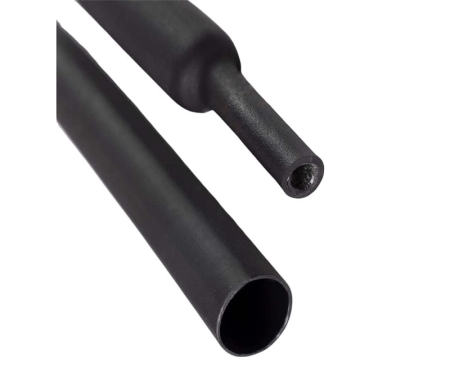

2:1 Adhesive Lined Dual wall Heat Shrink Tubing
Sold in 4 Ft Sticks 1/8" - 1-1/2" | ROHS Compliant
0.0 / 5
2:1 Dual Wall Heat Shrink Tubing Features
- 48” Length Per Stick
- UL Listed, File E536025

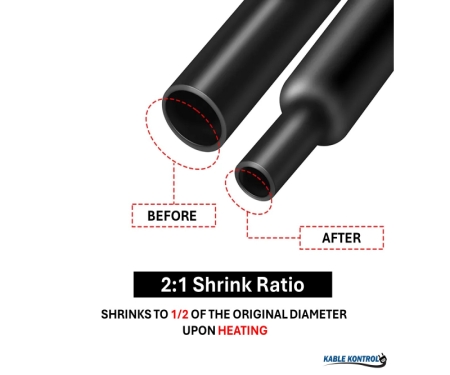

- Shrink Ratio: 50% or More In The Radial Direction, 5% or Less In The Axial Direction
- Continuous Operating Temperature: - 55℃(-67℉) to 110℃ (230℉)
- Excellent Electrical Insulation Properties
- AMS-DTL-23053/4 Class 2 (Formerly MIL-DTL-23053/4 Class 2)
- ROHS Compliant
- Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT.
- Please be advised: All 4’ long sticks are shipped Folded to avoid costly "oversized shipping" fees for the customer. If you require your HS stick to ship un-folded please call 1-877-284-7760

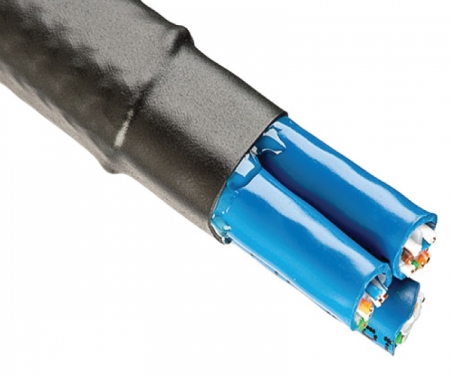

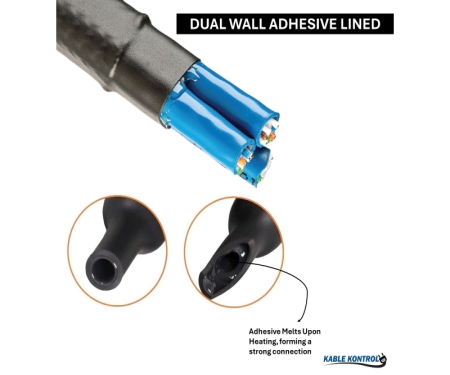

This 2:1 dual wall, adhesive heat shrink tubing is designed for general purpose applications such as the insulation and strain relief of electrical connections and terminations, light-duty harnessing, jacketing, and bundling. The adhesive lining forms an environmental seal that helps protect against moisture.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Method | Value | ||
|---|---|---|---|---|
| physical | Unaged | Tensile Strength | ASTM D638 | Min. 1500psi |
| Elongation | Min. 2000psi | |||
| Fluid Resist. | Tensile Strength | ASTM D638 | Min. 1000 ps | |
| Dielectric strength | ASTM D2671 | Min. 400 Volts/mil | ||
| Heat shock | 250℃, 4 hrs | No cracks, flowing, or dripping | ||
| Low temperature flex | ASTM D746 | No crack @ -55℃ | ||
| Secant Modulus | ASTM D882 | Max. 25,000 psi | ||
| Heat Resistance | ASTM D2671 | No cracks | ||
| Electrical | Dielectric strength | ASTM D2671 | Min. 500 Volts/mil | |
| Volume resistivity | ASTM D876 | Min. 1x1012Ω -cm | ||
| Chemical | Copper corrosion | 121℃, 16hrs | No corrosion | |
| Fungus resistance | ASTM G21 | No growth | ||
| Water Absorption | ASTM D570 | Max. 0.5% | ||
| Flammability | ASTM D2671 | Pass | ||
| Product Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Expanded | Recovered | ||||||
| Internal Diameter Minimum (D) | Internal Diameter Maximum (D) | Minimum Total Wall Thickness (Total Wall) (T) | Normal Wall Thickness (Adhesive Wall) (T) | |||||
| Inch Size | In. | mm | In. | mm | In. | mm | In. | mm |
| 1/8" | 0.125 | 3.2 | 0.062 | 1.57 | 0.017 | 0.43 | 0.008 | 0.20 |
| 3/16" | 0.187 | 4.7 | 0.093 | 2.36 | 0.017 | 0.43 | 0.008 | 0.20 |
| 1/4" | 0.250 | 6.4 | 0.125 | 3.18 | 0.022 | 0.56 | 0.008 | 0.20 |
| 3/8" | 0.375 | 9.5 | 0.187 | 4.75 | 0.022 | 0.56 | 0.012 | 0.30 |
| 1/2" | 0.500 | 12.7 | 0.250 | 6.35 | 0.022 | 0.56 | 0.012 | 0.30 |
| 3/4" | 0.750 | 19.1 | 0.375 | 9.53 | 0.027 | 0.69 | 0.012 | 0.30 |
| 1" | 1.000 | 25.4 | 0.500 | 12.7 | 0.030 | 0.76 | 0.012 | 0.30 |
| 1-1/2" | 1.500 | 38.1 | 0.750 | 19.1 | 0.034 | 0.86 | 0.012 | 0.30 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.

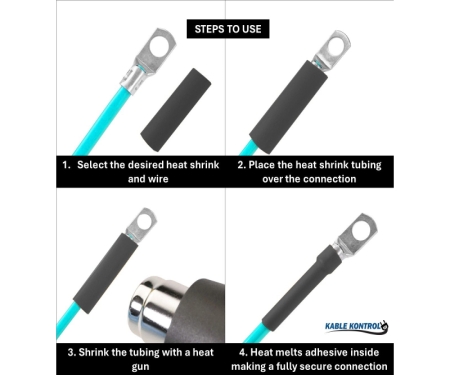

Q:What is the best way to shrink heat shrink tubing?
A:To shrink the heat shrink tubing we recommend using our heat guns that are specifically designed to produce the correct amount of heat to shrink tubing for wire protection.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
This 2:1 dual wall, adhesive heat shrink tubing is designed for general purpose applications such as the insulation and strain relief of electrical connections and terminations, light-duty harnessing, jacketing, and bundling. The adhesive lining forms an environmental seal that helps protect against moisture.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Method | Value | ||
|---|---|---|---|---|
| physical | Unaged | Tensile Strength | ASTM D638 | Min. 1500psi |
| Elongation | Min. 2000psi | |||
| Fluid Resist. | Tensile Strength | ASTM D638 | Min. 1000 ps | |
| Dielectric strength | ASTM D2671 | Min. 400 Volts/mil | ||
| Heat shock | 250℃, 4 hrs | No cracks, flowing, or dripping | ||
| Low temperature flex | ASTM D746 | No crack @ -55℃ | ||
| Secant Modulus | ASTM D882 | Max. 25,000 psi | ||
| Heat Resistance | ASTM D2671 | No cracks | ||
| Electrical | Dielectric strength | ASTM D2671 | Min. 500 Volts/mil | |
| Volume resistivity | ASTM D876 | Min. 1x1012Ω -cm | ||
| Chemical | Copper corrosion | 121℃, 16hrs | No corrosion | |
| Fungus resistance | ASTM G21 | No growth | ||
| Water Absorption | ASTM D570 | Max. 0.5% | ||
| Flammability | ASTM D2671 | Pass | ||
| Product Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Expanded | Recovered | ||||||
| Internal Diameter Minimum (D) | Internal Diameter Maximum (D) | Minimum Total Wall Thickness (Total Wall) (T) | Normal Wall Thickness (Adhesive Wall) (T) | |||||
| Inch Size | In. | mm | In. | mm | In. | mm | In. | mm |
| 1/8" | 0.125 | 3.2 | 0.062 | 1.57 | 0.017 | 0.43 | 0.008 | 0.20 |
| 3/16" | 0.187 | 4.7 | 0.093 | 2.36 | 0.017 | 0.43 | 0.008 | 0.20 |
| 1/4" | 0.250 | 6.4 | 0.125 | 3.18 | 0.022 | 0.56 | 0.008 | 0.20 |
| 3/8" | 0.375 | 9.5 | 0.187 | 4.75 | 0.022 | 0.56 | 0.012 | 0.30 |
| 1/2" | 0.500 | 12.7 | 0.250 | 6.35 | 0.022 | 0.56 | 0.012 | 0.30 |
| 3/4" | 0.750 | 19.1 | 0.375 | 9.53 | 0.027 | 0.69 | 0.012 | 0.30 |
| 1" | 1.000 | 25.4 | 0.500 | 12.7 | 0.030 | 0.76 | 0.012 | 0.30 |
| 1-1/2" | 1.500 | 38.1 | 0.750 | 19.1 | 0.034 | 0.86 | 0.012 | 0.30 |
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Q:What is the best way to shrink heat shrink tubing?
A:To shrink the heat shrink tubing we recommend using our heat guns that are specifically designed to produce the correct amount of heat to shrink tubing for wire protection.
