Kable Kontrol™ 3:1 Adhesive Lined Dual Wall Heat Shrink Tubing - 4 Foot Sticks

Available Size Range: 1/8" - 1-1/2" Inside Diameter | Polyolefin

0.0 / 5

(0)

Kable Kontrol™ 3:1 Dual Wall Heat Shrink Tubing Features

  • 4’ Feet Long Sticks
  • UL Listed, File E536025
  • RoHS Compliant
  • Adhesive Will Form Water Tight Seal When Cooled
  • 3:1 shrink ratio (shrinks to 1/3 its original diameter)
  • Lengthwise shrinkage Approximately 8% During Shrink Process
  • Shrink Temperature Starts At 158°F (70°C), Totally Shrunk At 248°F (120°C)
  • Inner Adhesive Melt Temperature Starts at 158°F - 176°F (70°C - 80°C)
  • Operating Temperature Range -67°F to 275°F (-55°C to 135°C)
  • Flame Retardant Jacket
  • High Resistance to Chemicals & Oils
  • Please be advised: All 4’ long sticks are shipped Folded to avoid costly "oversized shipping" fees for the customer. If you require your HS stick to ship un-folded please call 1-877-284-7760
See More Technical Specifications

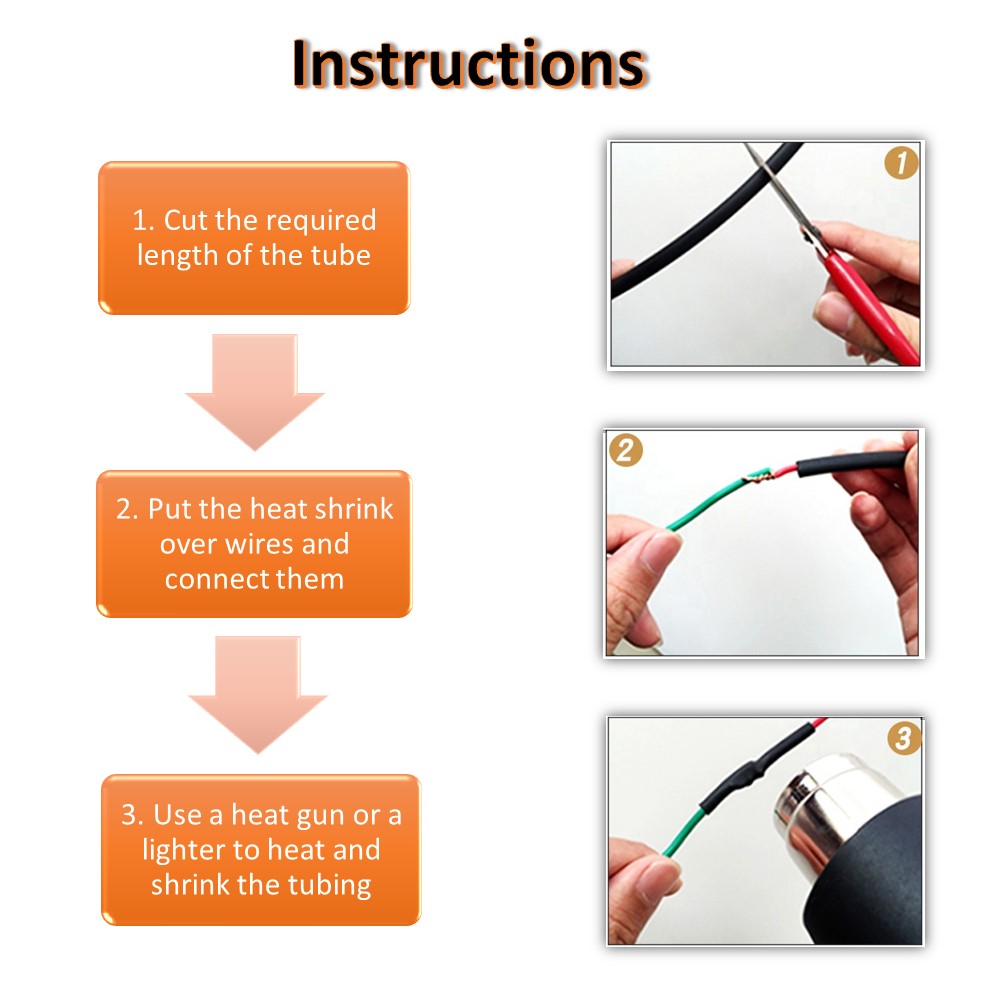

Dual wall (adhesive lined) 3:1 heat shrink tubing is made from a specially formulated, cross-linked polyolefin that is co-extruded with a meltable adhesive sealant. It offers excellent electrical, chemical and physical properties. This tough, flexible, flame retardant tubing can be used for electrical insulation, wire bundling, lightweight harnessing, and wire strain relief in a variety of home, commercial, industrial and military applications. When heated and the tubing begins to shrink, the inner adhesive layer begins to melt and flow (similar to hot melt glue). When the tubing has shrunk and cooled, the inner layer forms an adhesion layer between the tubing and the wire or component, providing a protective water-tight seal. It is an excellent way to terminate the ends of your Braided Sleeving, creating a tight, professional finish. The flame retardant jacket of 3:1 heat shrink tubing is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances.

Please Note: Diameters For Heat Shrink Tubing Are Measured as ROUND TUBE, NOT FLAT.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

  • 3:1 shrink ratio (shrinks to 1/3 its original diameter)
  • Lengthwise shrinkage approximately 7-9% during shrink process
  • Shrink temperature starts at 158°F (70°C), totally shrunk at 248°F (120°C)
  • Inner adhesive melt temperature starts at 158°F - 176°F (70°C - 80°C)
  • Operating Temperature Range -67°F to 275°F (-55°C to 135°C)
  • Flame Retardant Jacket
  • High resistance to chemicals and oils
  • Rated for 1000v



Expanded

Recovered

Nominal

Inside Diameter

Inside Diameter

Minimum Wall Thickness

Size

in

mm

in

mm

in

mm

1/8"

0.125

3.2

0.041

1.07

0.020

0.50

3/16"

0.187

4.8

0.060

1.52

0.025

0.63

1/4"

0.250

6.4

0.080

2.3

0.027

0.68

3/8"

0.375

9.5

0.135

3.43

0.030

0.76

1/2"

0.500

12.7

0.195

4.95

0.035

0.89

3/4"

0.750

19.1

0.313

7.95

0.040

1.02

1"

1

25.4

0.400

10.2

0.040

1.02

1-1/2”

1.570

39.9

0.510

13.0

0.040

1.02

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Product Details

Dual wall (adhesive lined) 3:1 heat shrink tubing is made from a specially formulated, cross-linked polyolefin that is co-extruded with a meltable adhesive sealant. It offers excellent electrical, chemical and physical properties. This tough, flexible, flame retardant tubing can be used for electrical insulation, wire bundling, lightweight harnessing, and wire strain relief in a variety of home, commercial, industrial and military applications. When heated and the tubing begins to shrink, the inner adhesive layer begins to melt and flow (similar to hot melt glue). When the tubing has shrunk and cooled, the inner layer forms an adhesion layer between the tubing and the wire or component, providing a protective water-tight seal. It is an excellent way to terminate the ends of your Braided Sleeving, creating a tight, professional finish. The flame retardant jacket of 3:1 heat shrink tubing is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances.

Please Note: Diameters For Heat Shrink Tubing Are Measured as ROUND TUBE, NOT FLAT.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

  • 3:1 shrink ratio (shrinks to 1/3 its original diameter)
  • Lengthwise shrinkage approximately 7-9% during shrink process
  • Shrink temperature starts at 158°F (70°C), totally shrunk at 248°F (120°C)
  • Inner adhesive melt temperature starts at 158°F - 176°F (70°C - 80°C)
  • Operating Temperature Range -67°F to 275°F (-55°C to 135°C)
  • Flame Retardant Jacket
  • High resistance to chemicals and oils
  • Rated for 1000v



Expanded

Recovered

Nominal

Inside Diameter

Inside Diameter

Minimum Wall Thickness

Size

in

mm

in

mm

in

mm

1/8"

0.125

3.2

0.041

1.07

0.020

0.50

3/16"

0.187

4.8

0.060

1.52

0.025

0.63

1/4"

0.250

6.4

0.080

2.3

0.027

0.68

3/8"

0.375

9.5

0.135

3.43

0.030

0.76

1/2"

0.500

12.7

0.195

4.95

0.035

0.89

3/4"

0.750

19.1

0.313

7.95

0.040

1.02

1"

1

25.4

0.400

10.2

0.040

1.02

1-1/2”

1.570

39.9

0.510

13.0

0.040

1.02
